Condair RS - Resistive Steam Humidifier
Compare variants

Application

Suitable for humidity control, with scale management features.

Description

Electrode boiler steam humidifier, providing reliable and

accurate humidity control without the expense of replaceable boiling cylinders.


Features and benefits:

  • Cleanable, stainless steel boiling cylinder eliminates the need to buy disposable plastic boiling cylinders, reducing operating costs.
  • Resistive heating elements give close control.
  • Plastic inner liner provides thermal insulation to create two temperature zones inside the cylinder.
  • Cold water pool prevents inlet and drain blockages.
  • Scale collector tank.
  • Accurate humidity control can be achieved of up to ±1%RH with RO.
  • water and ±3% with mains water.
  • Steam distribution option of steam hose for use in duct, or fan unit for direct room humidification.
  • Large outputs from single unit.
  • Touch screen control.
  • Outdoor enclosure option rated to IP55.


Components:

  • Stainless steel steam cylinder.
  • Patented scale management.

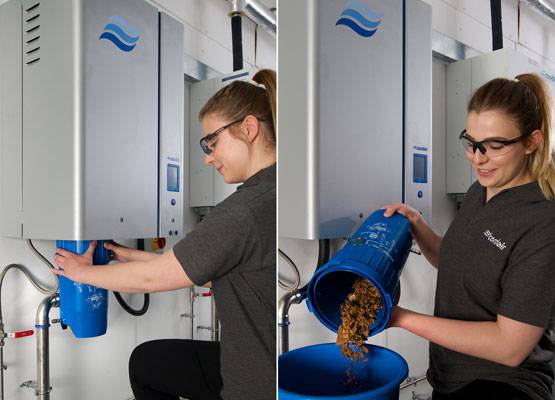

  • External scale collection tank.
  • Remote ON/ OFF, operation and fault indication.
  • Touch screen operation.
  • Self-diagnostic system.
  • Real-time clock.
  • BMS Connectivity – Modbus RTU, BACnet IP, BACnet MSTP master or slave mode.

General information

Shape

Rectangle

Color

Grey

Housing.

Blue

Scale collector tank.

Material

Stainless steel

Boiling cylinder.

Steel

Plastic

Inner liner.

Size

Housing: W x H x D.

420 x 987 x 370 mm

530 x 1097 x 406 mm

1000 x 1097 x 406 mm

Uniclass

Pr_65_67_39_84 Steam humidifiersPrimary

Specification data - Steam humidifiers Enhanced data

Electrical supply type

400 V Three phase and 230 V Single phase, 50–60 Hz.

Steam source

Resistive steam humidifier.

Material

Stainless steel.

Accessories

Not required.

Steam distribution system for ducted installation.

Steam distribution hose.

Ventilation unit for direct room humidification.

Up to 40 kg/h: The fan unit can be located directly on top of the humidifier or remotely.

Condensate hose.

Filter valve.

Drain water emper.

To reduce the temperature of the drain water to below 60°C; waste water is mixed with fresh water.

Mounting rack.

Adjustable mounting rack for easy on-site installation at different heights.

Outdoor enclosure.

IP55 rated cabinet with very small footprint and handles for lifting into position.

Short evaporation steam manifold.

The Optisorp steam manifold offers very short evaporation distances in AHUs.

Hygiene pack.

A solenoid valve on the scale collector tank will ensure the system completely drains without any standing water.

RO water filter.

Removes 95% of minerals from the supply water, to reduce maintenance and improve humidity control.

Remote control unit.

Externally located, wall-mounted display unit with RJ45 cable

connection to main unit.

Process version.

Advanced semi-conductor Triac control for improved humidity accuracy.

Pressure compensation set.

Up to 10 000 Pa.

Duct/ room hygrostat.

Humidity sensor.

For duct/ room installation.

BMS Connectivity – BACnet.

IP certified, MSTP BTL certified, LonWorks certified.

Dimensions

Housing: W x H x D.

420 x 987 x 370 mm.

OperatingWeight

40.2 kg.

Third party certification:

CE, VDE and SVE.

Operating voltage

230 V, 1 Phase, 50–60 Hz.

Control voltage, with heating voltage at maximum steam output.

Configuration

1 x Small.

Performance

5.1 kg/h.

Three phase.

5.0 kg/h.

Single phase.
