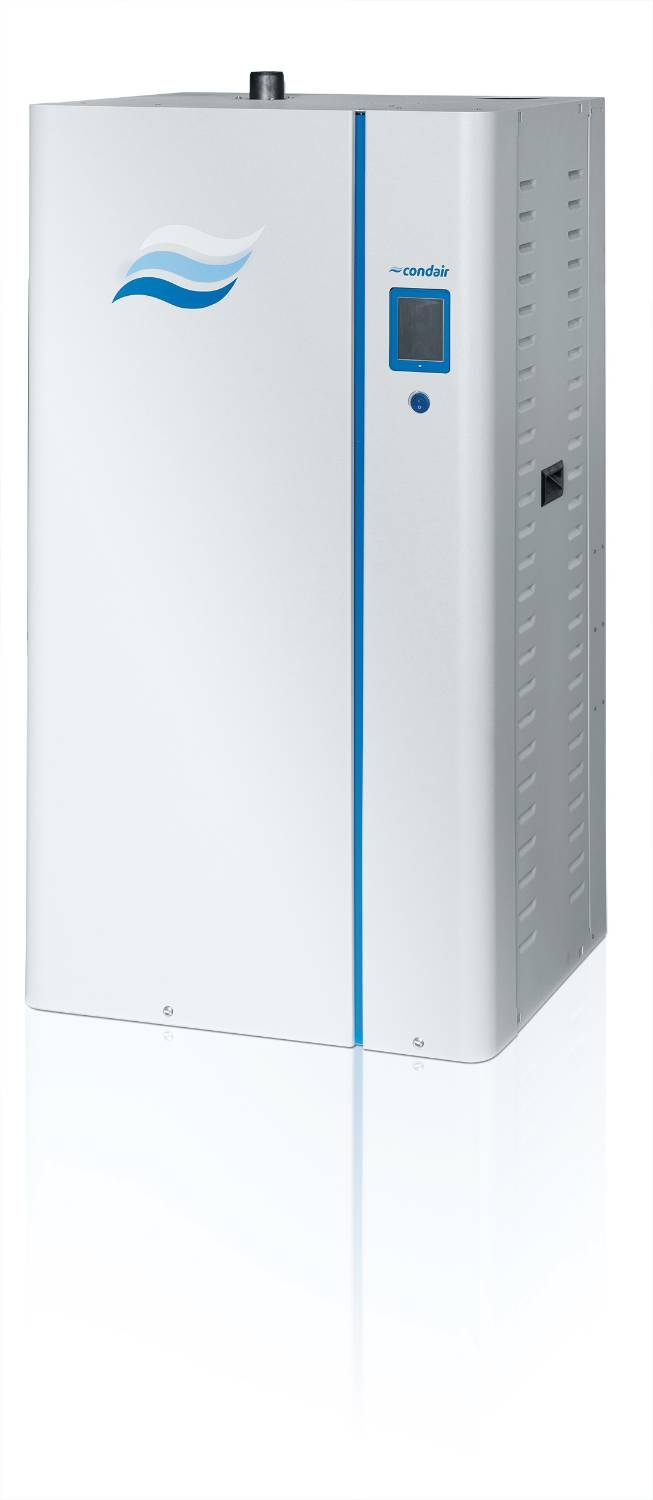

Condair GS - Gas-Fired Steam Humidifier
Compare variants

Application

  • Suitable for many commercial applications due to its wide range of outputs, ranging from 23–272 kg/h.
  • Alternative to electric steam humidifiers.

Description

Condensing gas-fired steam humidifier, providing economic steam humidification.


Features and benefits:

  • Can provide humidification to an AUH/ duct or directly to an area with a fan unit.
  • Flat burner and spark ignition incorporates a four-stage, fail-safe mechanism.
  • Touch screen control and BMS.

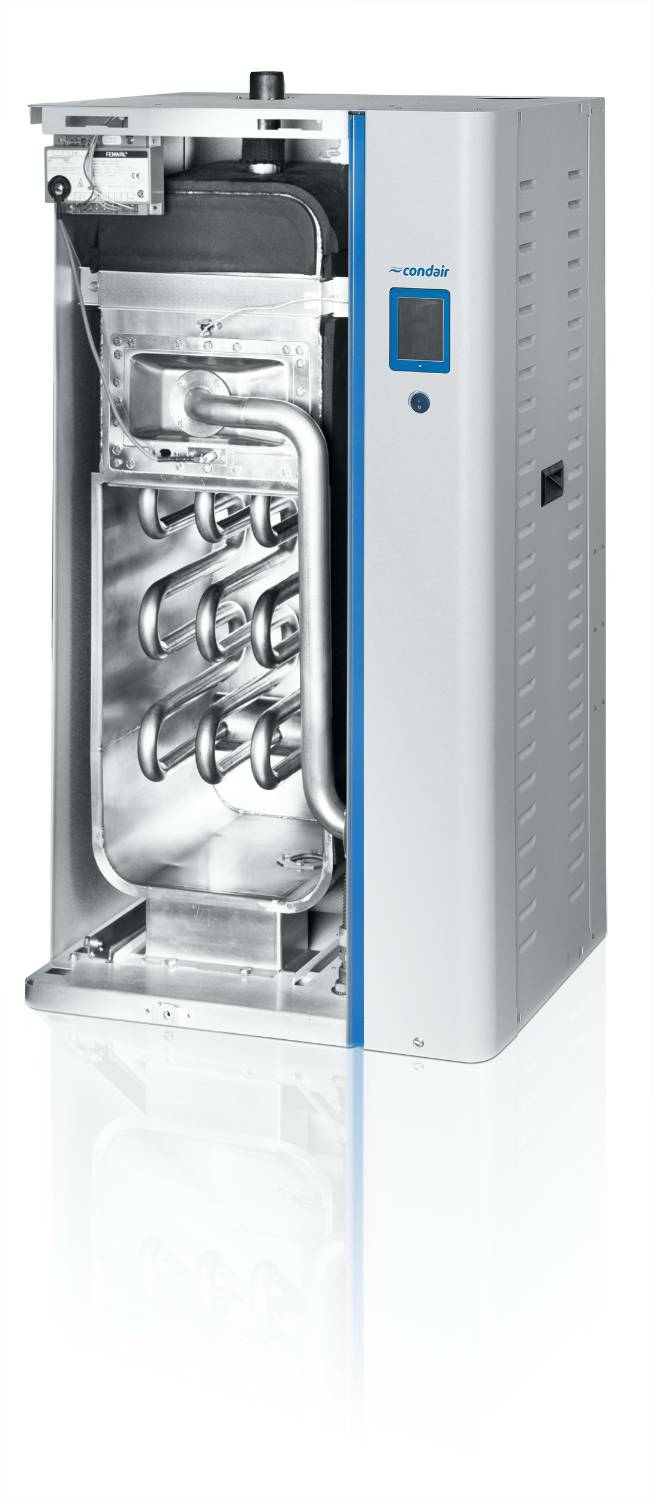

  • Stainless steel heat exchanger.
  • Easily accessible water tank
  • Condensing secondary heat exchanger transfers exhaust flue gases to the incoming water supply.
  • Heated incoming water improves humidity control, as the tank's temperature remains more consistent.
  • The lower flue gas temperature created by the condensing technology, allows the use of plastic rather than stainless steel flues, reducing installation cost.
  • Wide range available, from compact 23 kg/h units that can be wall-mounted, to high capacity 272 kg/h models.
  • Water from the boiling chamber can be cooled prior to release, in order to protect a building’s drainage pipe work.
  • Compact design with small footprint allows for wall mounting.


Components:

  • Stainless steel tank and heat exchanger.
  • Integrated touch screen controller.
  • Modbus and BACnet IP/ MSTP (slave).
  • Real time clock.
  • Floor stand.

General information

Shape

Rectangle

Color

Grey

Material

Stainless steel

Tank and heat exchanger.

Steel

PVC

Flue pipes.

Size

Housing: W x H x D.

600 x 1110 x 540 mm

710 x 1410 x 710 mm

960 x 1410 x 710 mm

1590 x 1410 x 710 mm

1262 x 1380 x 708 mm

Show more

Uniclass

Pr_65_67_39_84 Steam humidifiersPrimary

Specification data - Steam humidifiers Enhanced data

Duty

-

Air volume

Minimum exhaust air flow.

1025 m³/h.

Electrical supply type

Single phase.

Steam source

Condensing gas-fired.

Material

Stainless steel.

Accessories

Not required.

Steam distribution system for ducted installation.

Steam distribution hose.

Condensate drain hose.

Drain water cooler.

To reduce the temperature of the drain water to below 60°C; waste water is mixed with fresh water.

Wall or floor mounted.

  • The 23 and 45 kg/h models can be wallmounted.
  • An optional stand is available for floor mounting.

Outdoor weather-proof enclosure.

An outdoor model is available with weather-proof enclosure.

Short evaporation steam manifold.

The Optisorp steam manifold offers very short evaporation distances in AHUs.

Fan unit.

A fan unit can supply steam humidification directly to a room’s atmosphere.

Internal/ external air supply.

Models are available that use air for combustion from either the room or an external air source.

Dimensions

Housing: W x H x D.

600 x 1110 x 540 mm.

Third party certification:

DVGW, CE and VDE.

Operating voltage

230 V, 1 Phase, 50–60 Hz.

Control voltage.

Performance

Steam output.

21 kW/h.

Nominal capacity.

ExhaustAir

Negative pressures; other ranges available upon request.

-300 to -1200 Pa.

-400 to -1500 Pa.

Power input

20.5 kW (max) and 4.1 kW (min).
