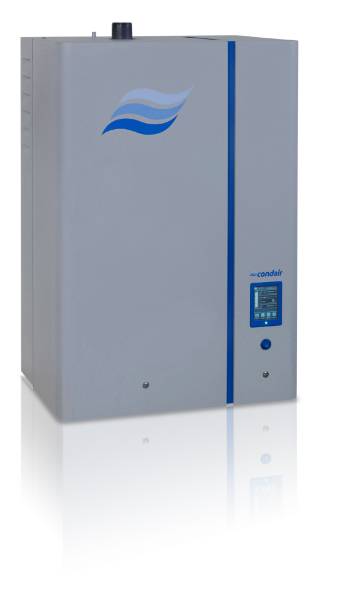

Condair EL - Electrode Boiler Steam Humidifier
Compare variants

Application

The provision of hygienic steam for either in-duct or direct air humidification.

Description

Electrode boiler steam humidifier, providing hygienic steam for either in-duct or direct air humidification.


Features and benefits:

  • Cylinders can be replaced in minutes, ensuring reliable humidity control and minimal downtime.
  • Cylinders are cleanable, allowing for multiple re-use.
  • Steam distribution option of steam hose for use in duct, or fan unit for direct room humidification.
  • Robust and touch protective electrode plugs for easy and safe cylinder change.
  • Long lasting steam cylinder due to advanced water conductivity management and staged electrode use.
  • Pumped drain removes water with high mineral content and returns the humidifier to full output, maintaining humidity control.
  • Available with a single unit for outputs up to 45 kg/hour and a double cylinder model for outputs of up to 90 kg/hour.
  • Up to four single units can be controlled on a master/ slave configuration for outputs up to 180 kg/hour.
  • Easy installation and touch screen unit controller offers simplicity of use.
  • Easy integration into Building Management Systems, extending cylinder life, whilst saving water and energy.
  • Outdoor enclosure option rated to IP55.


Components:


  • Replaceable steam cylinder.
  • Internal PI humidity controller.
  • Remote indication board.
  • Analog output for signalling actual steam capacity.
  • Touch screen control panel.
  • Self-diagnostic system.
  • Real-time clock.
  • BMS connectivity – Modbus RTU.

General information

Shape

Rectangle

Color

Grey

Housing.

White

Steam cylinder.

Material

Steel

Plastic

Size

Housing: W x H x D.

420 x 670 x 370 mm

530 x 780 x 406 mm

1000 x 780 x 406 mm

Uniclass

Pr_65_67_39_84 Steam humidifiersPrimary

Specification data - Steam humidifiers Enhanced data

Electrical supply type

400 V Three phase and 230 V Single phase, 50–60 Hz.

Steam source

Electrode boiler.

Accessories

Not required.

Steam distribution system for ducted installation.

Steam distribution hose.

Ventilation unit for direct room humidification.

Up to 45 kg/h: The fan unit can be located directly on top of the humidifier or remotely.

Condensate hose.

Filter valve.

Drain water cooler.

To reduce the temperature of the drain water to below 60°C; waste water is mixed with fresh water.

Cleanable cylinder.

Scale can be emptied and the cylinder reused multiple times.

Pressure compensation set.

Allows operation with up to 10 000 Pa duct pressures.

Mounting rack.

Adjustable mounting rack for easy on-site installation at different heights.

Humidity sensors and hygrostats.

Full range of in-duct and in-room systems to connect to the internal PI controller.

Outdoor enclosure.

IP55 rated cabinet with very small footprint and handles for lifting into position.

Short evaporation steam manifold.

The Optisorp steam manifold offers very short evaporation distances in AHUs.

Condair online remote diagnostics.

BMS connectivity – LonWorks.

Lon standards certified, BACnet MS/ TP (master/ slave) or

BACnet IP – BTL certified.

Dimensions

Housing: W x H x D.

420 x 670 x 370 mm.

OperatingWeight

40.0 kg.

Third party certification:

CE and VDE.

Operating voltage

230 V, 1 Phase, 50–60 Hz.

Control voltage, with heating voltage at maximum steam output.

Configuration

1 x Small.

Performance

5.0 kg/h.
