Concrete Interlocking Rooftile - Lakeland Devenish
Verified by manufacturer 19 days ago

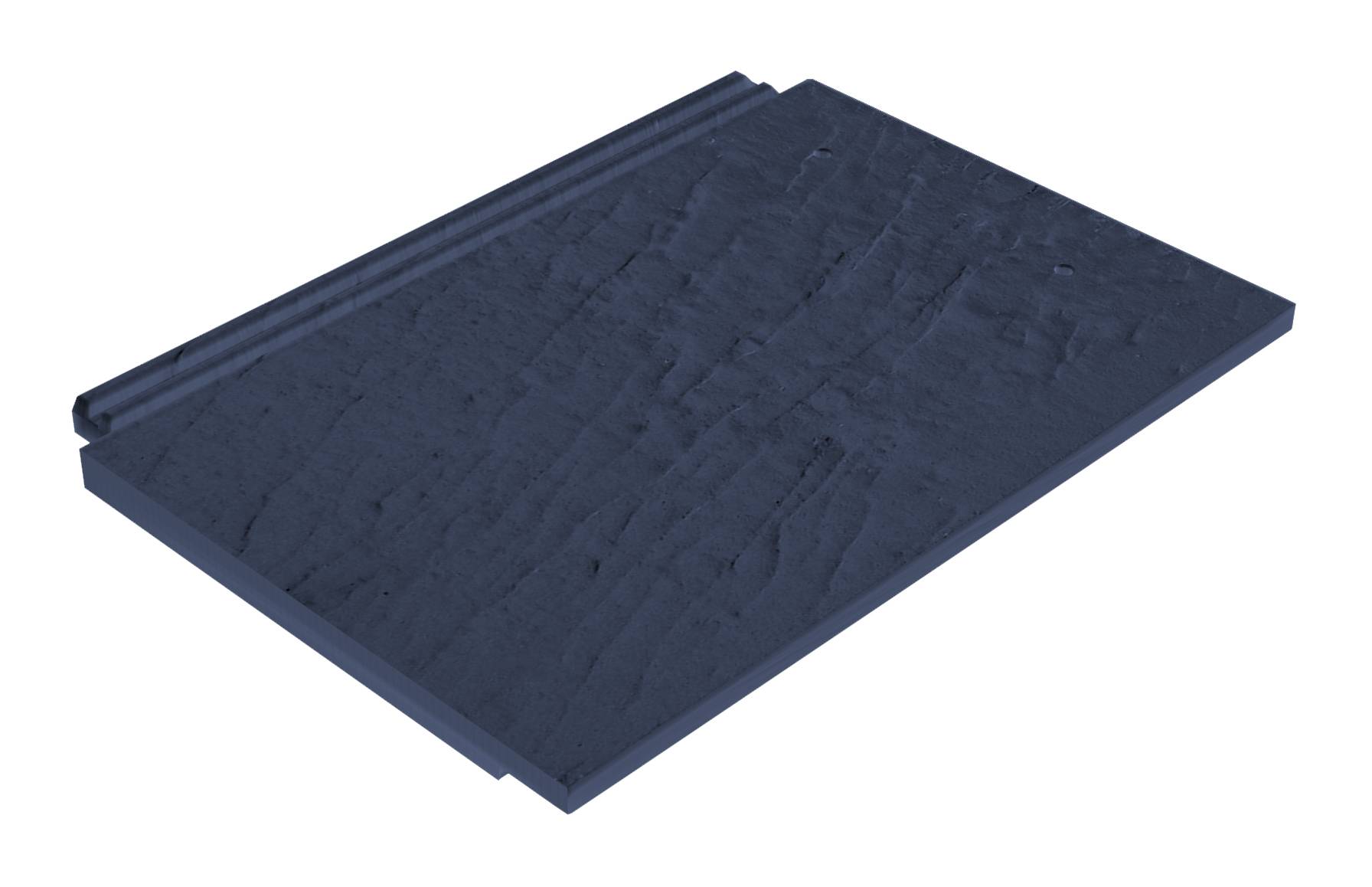

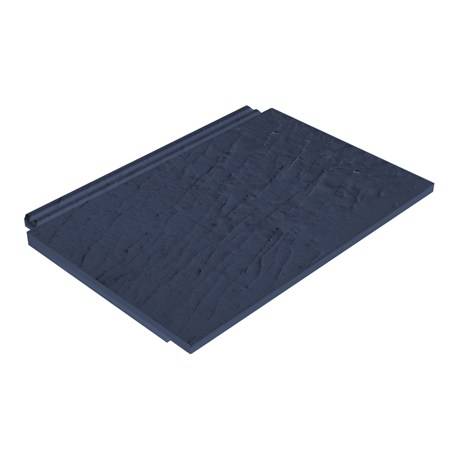

Interlocking concrete roof tile.
Application
Roof tiling application for new build projects or refurbishment work.
Description
Slate effect concrete roof tiles with a finely detailed textured surface available in two gloss colours. It is manufactured with precisely metered pigmented concrete and receives a high quality acrylic paint coating, to ensure a rich long lasting colour.
Tiles have a hidden interlock detail that gives the appearance of natural slate. Highly versatile, they equally suitable for new build projects or the refurbishment of old style buildings.
Features and benefits:
- BSI Kitemark Licence No. 31833.
- Linear cover 300-302 mm.
General information
Color | Blue Black Grey |
Finish | Textured Guidance for specification option: Riven textured. |
Material | Concrete |
Shape | Rectangle |
Length | 420 mm |
Width | 344 mm |
Warranty description | 30 year Guidance for specification option: > 30 years (structural). |
Uniclass | |
CAWS | H65/115 Concrete roof tiling H65/120 Concrete roof tiling with counterbattens H65/3 Roof tiling H65/5 Roof tiling |
Product range |
Specification data - Concrete interlocking tiles
Classification data | |
Colour | Black. Blue/ black. Grey. |
Surface finish | Riven textured. |
Size | 420 x 334 mm. |
Pitch | 17.5–90°. |
Gauge | 345 mm. Guidance for specification option: Maximum. |
Nominal weight | 4.6 kg. Guidance for specification option: Per tile. |
Roof covering | 10.4 tiles/m². Guidance for specification option: Covering capacity at 100 mm headlap. |
Fixing | Nails. Guidance for specification option: 3.35 x 40 mm. Chips. |
Batten size | 38 x 25 mm. Guidance for specification option: UK: For up to 450 mm support spacing. 50 x 25 mm. Guidance for specification option: UK: For up to 600 mm support spacing. 47 x 35 mm. Guidance for specification option: ROI: For up to and including 600mm support spacing. |
Head-lap (minimum) | 100 mm. Guidance for specification option: 17.5–22.5°. 75 mm. Guidance for specification option: >22.5°. |
Sustainability data
Material | Concrete |
BIM objects
This BIM object has been authored to meet the requirements of the
Find out more about the
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 7 |
 Revit | - | 7 |
