Description

Radiator offering a distinctive aesthetic with flexible, highly efficient performance.

Provides a contemporary solution for a wide range of building applications.

It is available in a variety of sizes and outputs, and allows extensive flexibility of siting, whilst providing heating efficiency.

Features and benefits:

  • Concord Slimline performs to a maximum working pressure of 66.7 psi (4.6 bar), whilst all other variants perform to a maximum working pressure of 58 psi (4 bar).
  • Conforms to BS EN 442.
  • Available in a range of 132 sizes.
  • Available in white as standard, and can be specially ordered in up to 35 colours, making it suitable for matching to a corporate or specific colour décor.
  • Five-year manufacturer’s warranty.
  • Accessories are available, such as floor standing brackets, to ensure that the Stelrad Compact can be fitted within a wide range of applications - consult manufacturer for details.

General information
Specification data
Product Reference

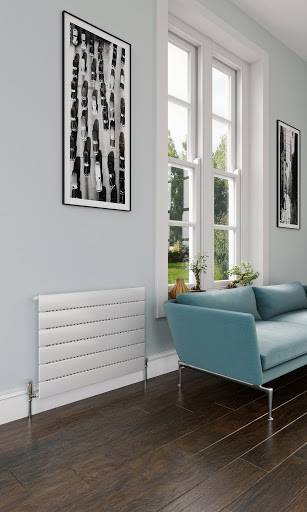

Concord Lo-Line

Low level horizontal radiator, available 148–296 x 800–2200 mm (h x l).

Concord Plane

Horizontal radiator, available 444–740 x 500–3000 mm (h x l).

Concord Slimline

Vertical radiator available 1800–2000 x 320–640 mm (h x l).

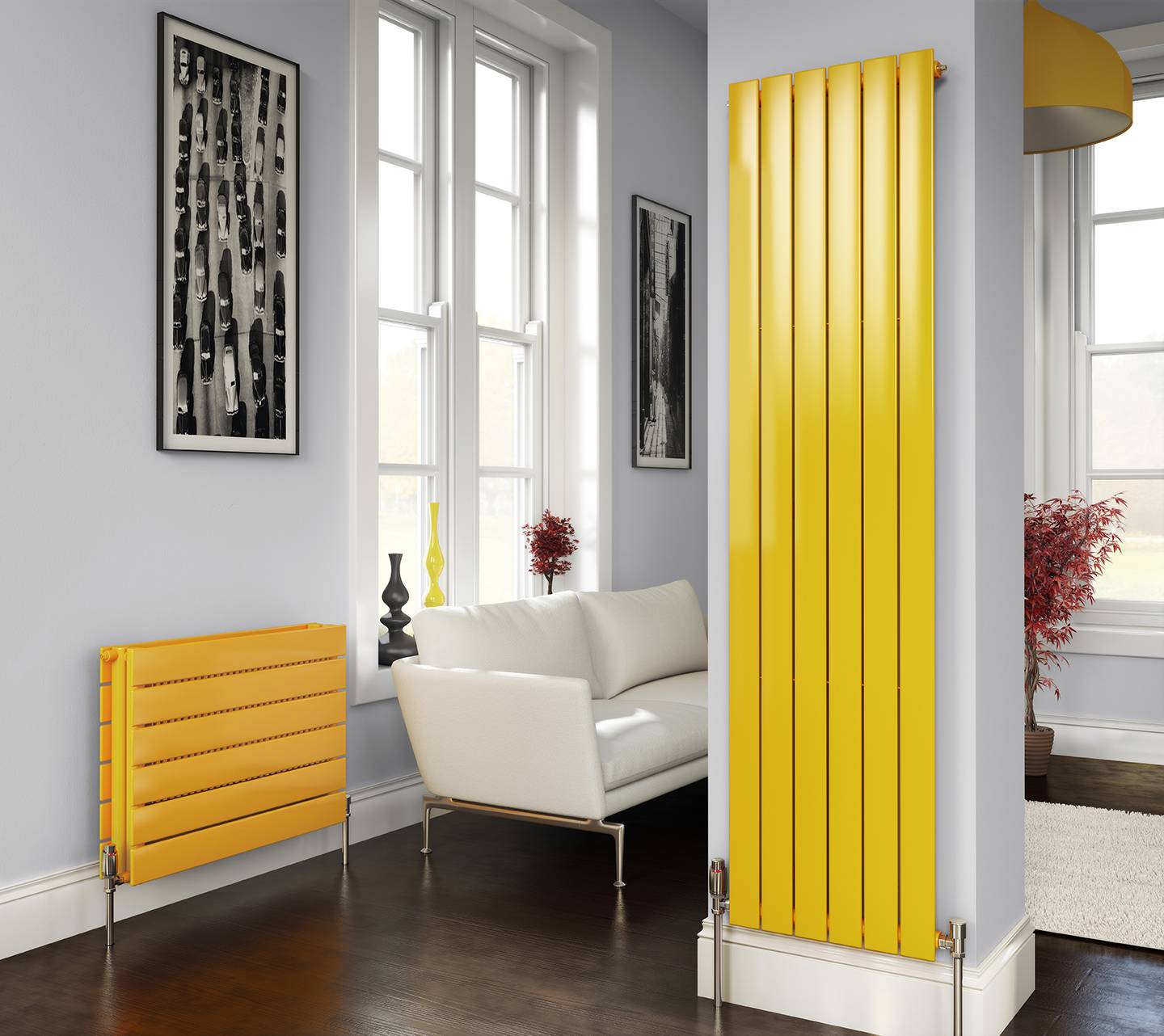

Concord Vertical

Vertical radiator, available 1800–2000 x 444–740 mm (h x l).

Style

Double

Not available with Concord Slimline.

Single

Not available with Concord Lo-Line.

Colour

White (RAL 9016)

Standard.

Special order

Insert requirement from manufacturer's literature, available in 35 colours.

Accessories

Insert requirements, contact manufacturer for information.

Standard product features

Heat output:

  • Plane: 392–6006 W/ 1338–20 493 Btu/hr dependent on size and style, consult manufacturer's literature for information.
  • Lo-Line: 541-2453 W 1846-8370 Btu/hr.
  • Vertical: 852-2310 W 2907-7253 Btu/hr.
  • Slimline: 872-1956 W 2975-6674 Btu/hr.

Elements:

Dependent on size and style, consult manufacturer's literature for information.

Tap centres:

Dependent on size and style, consult manufacturer's literature for information.

Connections:

½” inlet connections as standard.

Pressures:

  • Working pressure: 4/ 4.6 bar.
  • Operating pressure: 13.5 bar.

Technical characteristics:

Dependent on size and style, consult manufacturer's literature for information.
