Concept Space 80 cm Washbasin, double platform

Concept Space 80 cm Washbasin, double platform

Ideal Standard (UK) Ltd

Concept Space consists of a wide range of ceramic pieces, storage and bathing solutions with innovative features providing the best possible use of space in any bathroom area.

Jump to:
+44 (0)870 122 8822 www.idealspec.co.uk

Description

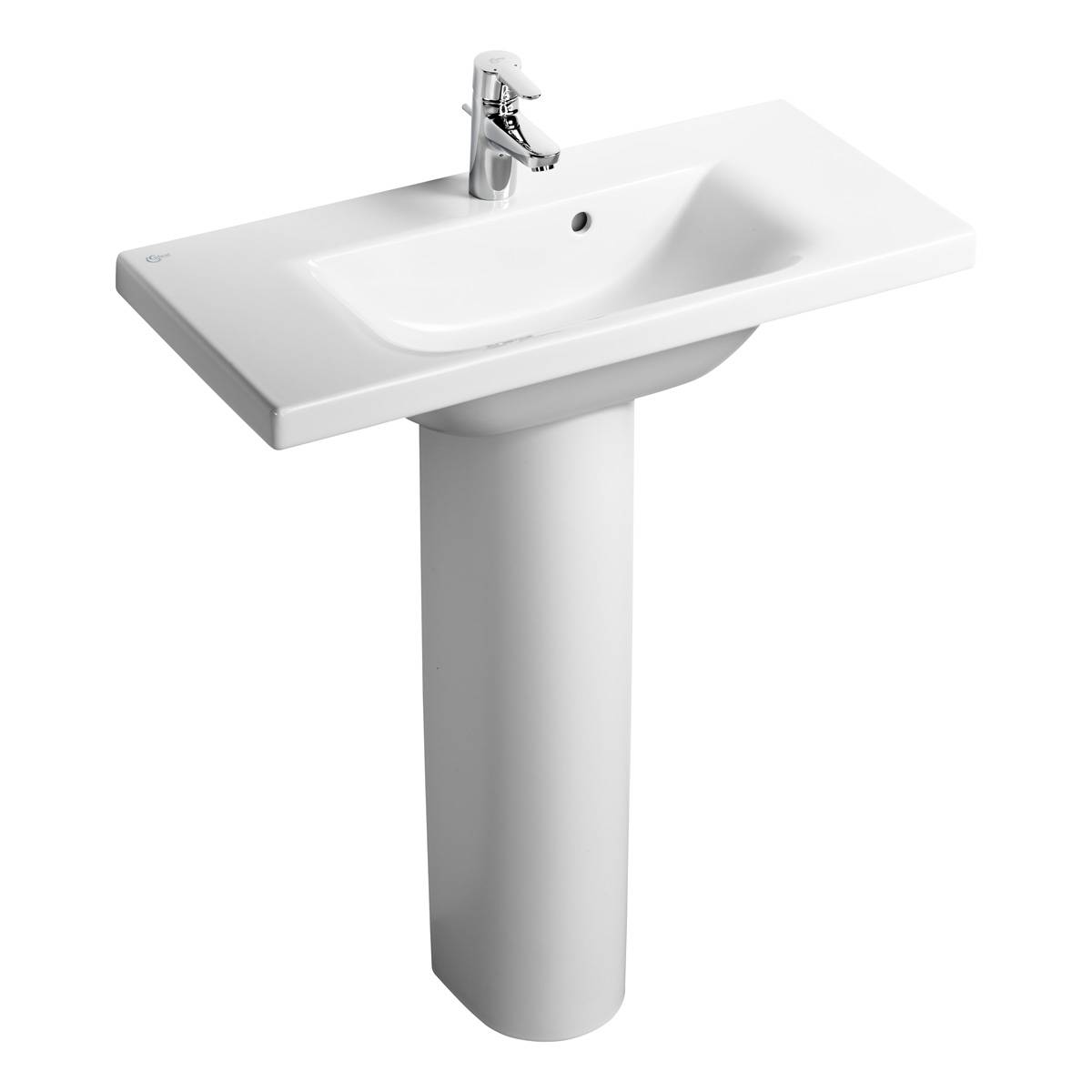

Concept Space 80cm furniture or pedestal washbasin, 1 taphole

  • Double platform washbasin
  • Furniture or pedestal use
  • Short projection
  • Part of an extensive suite
  • Dedicated Furniture unit with 5 finish options

General information

Finish

Chrome - (AA)

Neutral / No Finish - (67)

White - (01)

Color

White

Features

80 cm furniture or pedestal washbasin, 1 taphole

Material

Vitreous china

Shape

Sculptured

Size

800 x 380 x 172 mm

WarrantyDescription

Manufacturers Warranty

Uniclass 2015

Pr_40_20_96_63 Pedestal washbasinsPrimary

Specification data - Pedestal washbasins

Product Reference

E1343 - Concept Space 80cm Double Platform Washbasin

Concept Space 80cm Washbasin 1 Taphole

Finish

Chrome - (AA)

Neutral / No Finish - (67)

White - (01)

Pedestal

E7837 - Full Pedestal

Concept Full Pedestal

E7840 - Small Semi Pedestal

Concept Small Semi Pedestal

Not required

Standard product features

Washbasin:

  • Capacity: 4.1 litres
  • Material: Fine Fireclay
  • Weight: 18.40 kg
  • Standards: Vitreous china to BS 3402. Washbasin to BS EN 14688 & BS EN 31

Pedestal:

  • Material: Fine Fireclay
  • Weight: 10.80 kg

Washbasin Wall Fixings:

  • Material: Metal
  • Weight: 0.16 kg

Brassware:

  • Material: Chrome Plated Brass
  • Weight: 1.89 kg
  • Flowrate: 5.00 lpm @ 3bar

Trap:

  • Material: Plastic
  • Weight: 0.20 kg

Product Options

Washbasin wall mounted using the E0157 wall fixing set, with semi-pedestal screwed to wall or full pedestal mounted using 2 screws through the back of the basin. When fitted to furniture washbasin must be secured to wall with E0157 wall fixing set.

Digital objects

Platform Compatible Version Certified to
Revit

Revit 2013

1

1.2
Download now from NBS National BIM Library
