Concept Space 55 cm Washbasin - Short Projection

Concept Space 55 cm Washbasin - Short Projection

Ideal Standard (UK) Ltd

Concept Space consists of a wide range of ceramic pieces, storage and bathing solutions with innovative features providing the best possible use of space in any bathroom area.

Jump to:
+44 (0)870 122 8822 www.idealspec.co.uk

Description

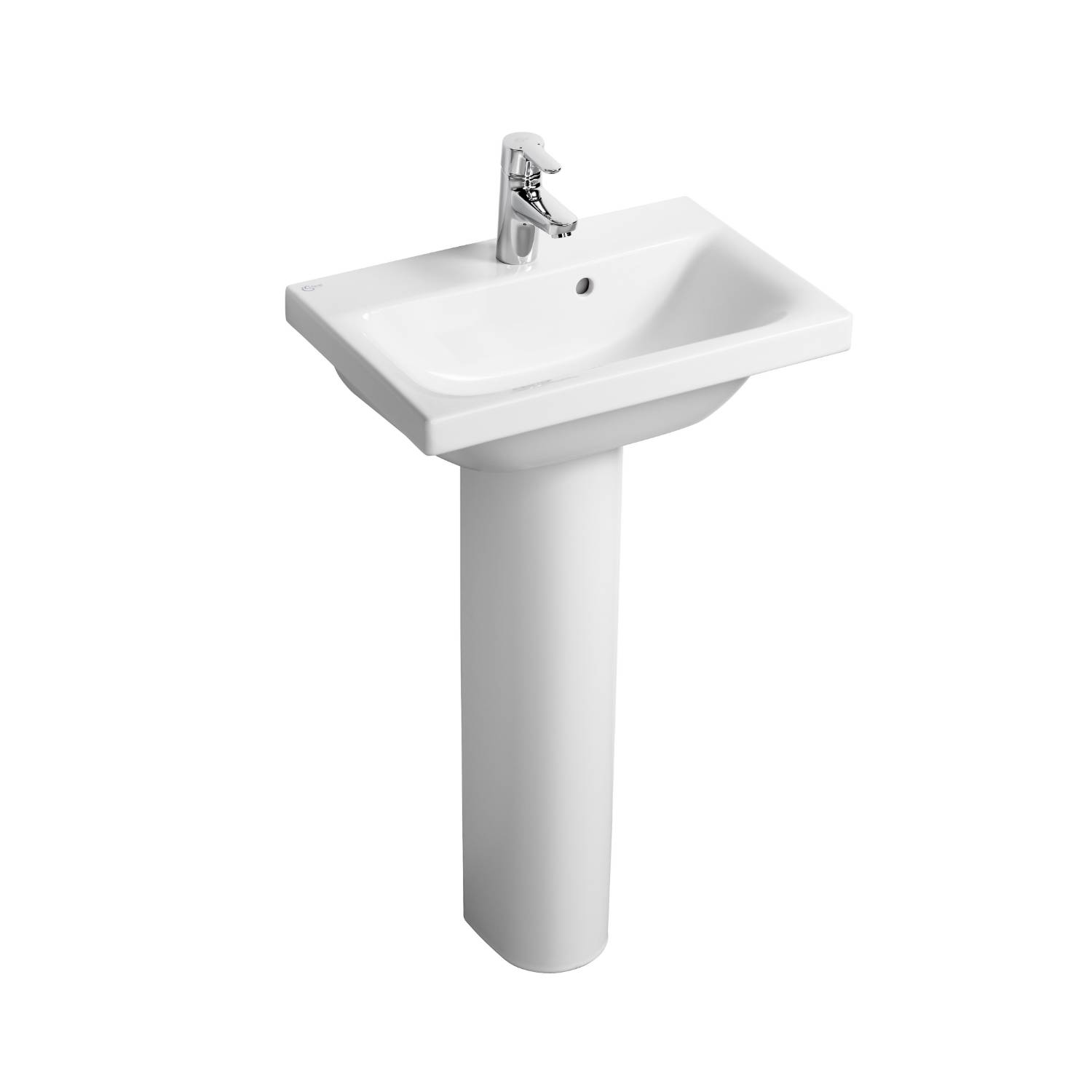

Concept Space 55cm furniture or pedestal washbasin, 1 taphole

  • Furniture or pedestal use
  • Dedicated Furniture unit with 5 finish options
  • Space saving
  • Part of an extensive suite

General information

Finish

Chrome - (AA)

Neutral / No Finish - (67)

White - (01)

Color

White

Features

55 cm furniture or pedestal washbasin, 1 taphole

Material

Vitreous china

Shape

Sculptured

Size

550 x 380 x 175 mm

WarrantyDescription

Manufacturers Warranty

Uniclass 2015

Pr_40_20_96_63 Pedestal washbasinsPrimary

Specification data - Pedestal washbasins

Product Reference

E1337 - Concept Space 55cm Washbasin - Short Projection

Concept Space 55cm Washbasin 1 Taphole

E1336 - Concept Space 55cm Washbasin - Short Projection

Concept Space 50cm Washbasin 1 Taphole

Finish

Chrome - (AA)

Neutral / No Finish - (67)

White - (01)

Pedestal

E7838 - Hand Rinse Pedestal

Concept Handrinse Pedestal

E7840 - Small Semi Pedestal

Concept Small Semi Pedestal

Not required

Standard product features

Washbasin:

  • Capacity: 4.1 litres
  • Material: Fine Fireclay
  • Weight: 14.30 kg
  • Standards: Washbasin to BS EN 14688 & BS EN 31

Pedestal:

  • Material: Fine Fireclay
  • Weight: 8.50 kg

Brassware:

  • Material: Chrome Plated Brass
  • Weight: 1.89 kg
  • Flowrate: 5.00 lpm @ 3bar

Trap:

  • Material: Plastic
  • Weight: 0.20 kg

Product Options

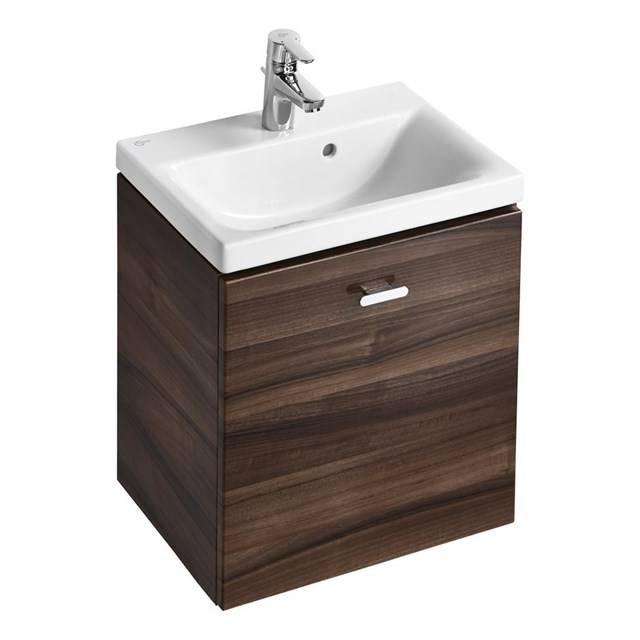

Washbasin wall mounted using the E015767 wall fixing set, with semi-pedestal screwed to wall or full pedestal mounted using 2 screws through the back of the basin. Washbasin can also be supported on dedicated furniture units.

Digital objects

Platform Compatible Version Certified to
Revit

Revit 2013

1

1.2
Download now from NBS National BIM Library
