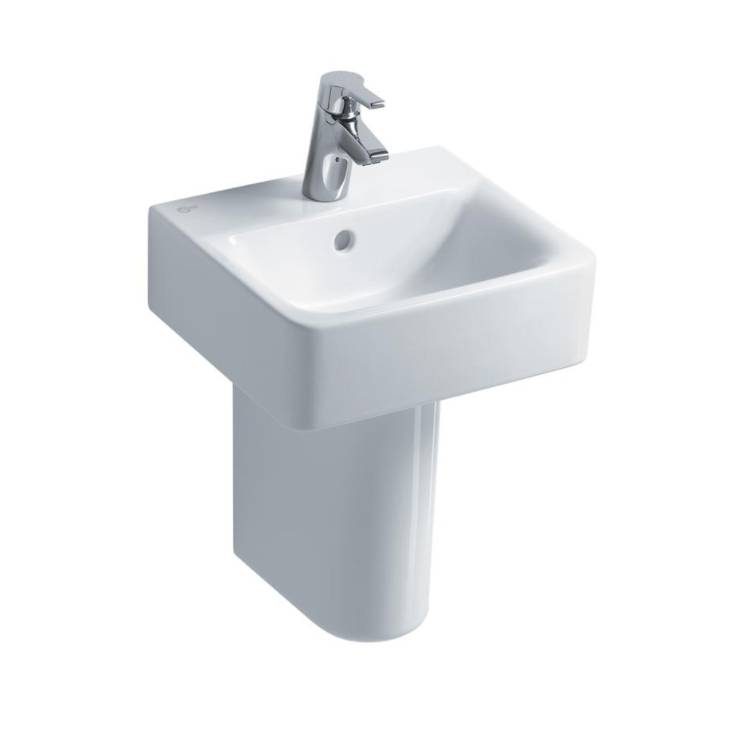

Concept Cube 40 cm Hand Rinse Washbasin
Verified by manufacturer over a year ago
Wall mounted 40 cm hand rinse washbasin, with one tap hole and overflow.
Application
Suitable for use wall or pedestal fixing and also can be used with design linked Cube furniture basin units.
Description
Concept Cube 40 cm hand rinse washbasin, with one tap hole and overflow.
Features and benefits:
- Domestic and commercial use.
- Part of the extensive Concept suite.
- Furniture base unit to match.
- Washbasin wall mounted using E0157 wall fixing set with semi-pedestal fixed to wall with brackets supplied, or full pedestal mounted using 2 screws through the back of the basin (not supplied).
- When fitted with furniture washbasin must be secured to wall with E0157 wall fixing set.
General information
Color | White |
Finish | Polished |
Material | Clay |
Shape | Rectangle |
Length | 400 mm |
Width | 360 mm |
Uniclass | |
CAWS | N13/335 Washbasins N13/30 Washbasins |
Specification data - Wall-hung washbasins
Standard | To BS EN 14688. |
Form | Wall-hung washbasin. |
Connecting dimensions | To BS EN 31. |
Materials | |
Body | Fireclay. |
Finish and colour | White.Manufacturer guidancePolished. |
Size | 400 x 360 x 160 mm. |
Water supply, overflow and waste holes | |
Water supply | Two tap holes. |
Overflow | Rear overflow hole. |
Waste | Bottom waste outlet. No chainstay hole. |
Weight | 10.08 kg. |
Capacity | 2.1 Litres. |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
