Concept Air Wall Mounted WC Suite
Description

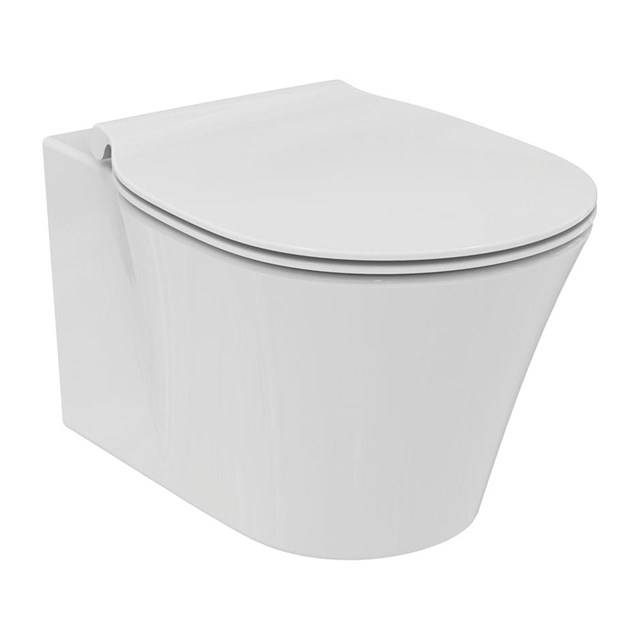

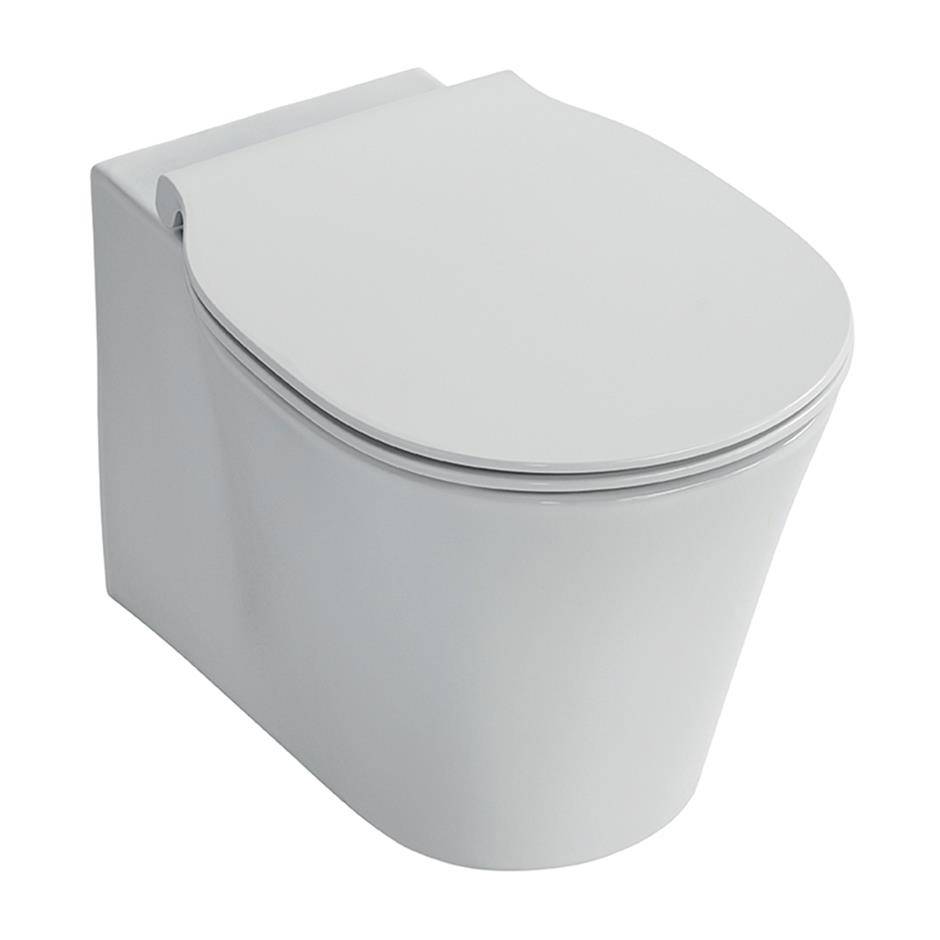

Concept Air wall mounted wc pan with Aquablade technology

  • Domestic and commercial use
  • Water efficient
  • Part of an extensive range
  • Slow close seat option
  • Furniture options
  • Choice of seat style
  • Aquablade flushing technology

General information
Finish

Chrome - (AA)

Light Blue - (36)

Neutral / No Finish - (67)

Red - (GQ)

Ultra Steel - (GN)

White - (01)

yellow - (79)

Features

Air wall hung bowl with aquablade technology, sandwichslim seat

Air wall hung bowl with aquablade technology, wrapover seat

Shape

Sculptured

Size

363 x 543 x 347 mm

WarrantyDescription

Manufacturers Warranty

Uniclass 2015
Pr_40_20_93_94 WC pansPrimary
Specification data - WC pans
Product Reference

E0796 - Concept Air Wall Mounted WC Suite With Aquablade Technology

Concept Air Wall Mounted WC Pan

Finish

Chrome - (AA)

Light Blue - (36)

Neutral / No Finish - (67)

Red - (GQ)

Ultra Steel - (GN)

White - (01)

yellow - (79)

Standard product features

WC Pan:

  • Material: Vitreous China
  • Weight: 22.36 kg
  • Standards: Vitreous china to BS3402. WC pan to BS EN 997 and BS EN 33

Cistern:

  • Capacity: 4.0 litres
  • Secondary Capacity: 2.6 litres
  • Material: Plastic
  • Weight: 2.70 kg

WC Seat:

  • Material: Plastic
  • Weight: 2.10 kg

WC Actuator:

  • Material: Chrome Plated Plastic
  • Weight: 0.50 kg

WC Support Bracket:

  • Material: Metal
  • Weight: 4.28 kg

Product Options

E0060 support brackets secured to floor within the duct. WC fixed to support brackets with bolts supplied and hidden fixation set provided. Joint sealed with waterproof sealant (not supplied). Can be used with Concept Air furniture WC units, support brackets E0060 required.

Digital objects
PlatformCompatibleVersionCertified to
Revit
Revit 2014 1 1.3
Download now from NBS National BIM Library
