Description

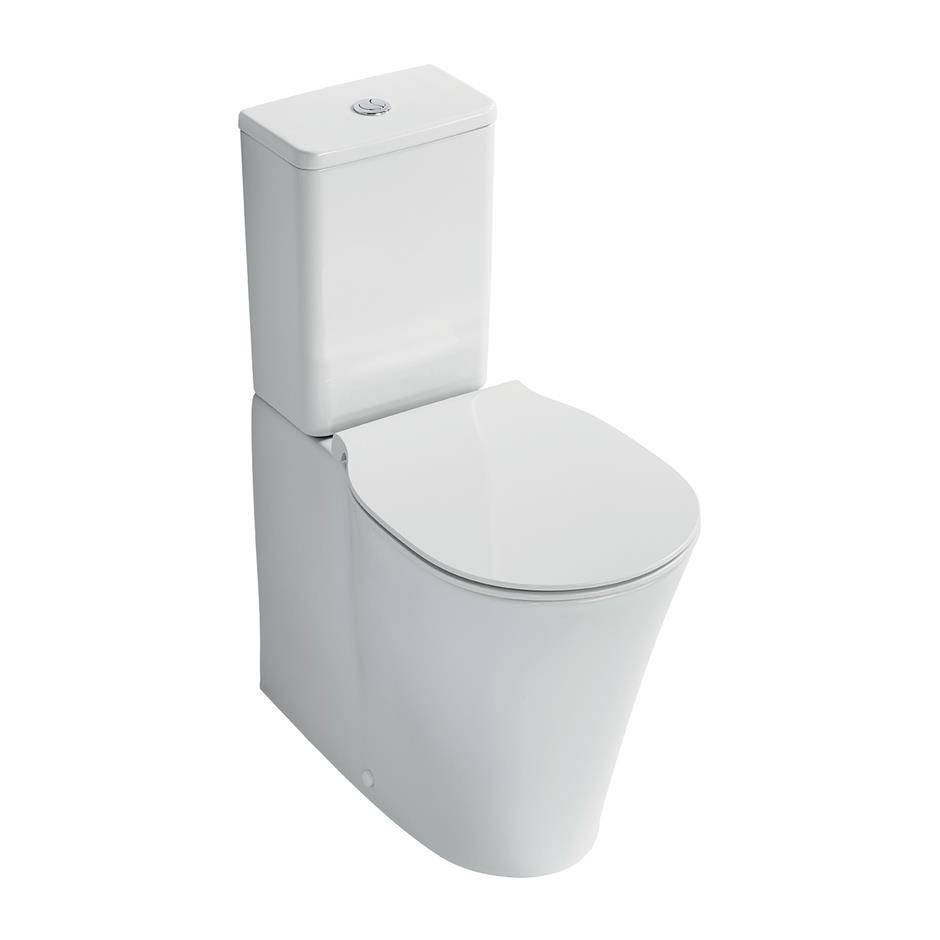

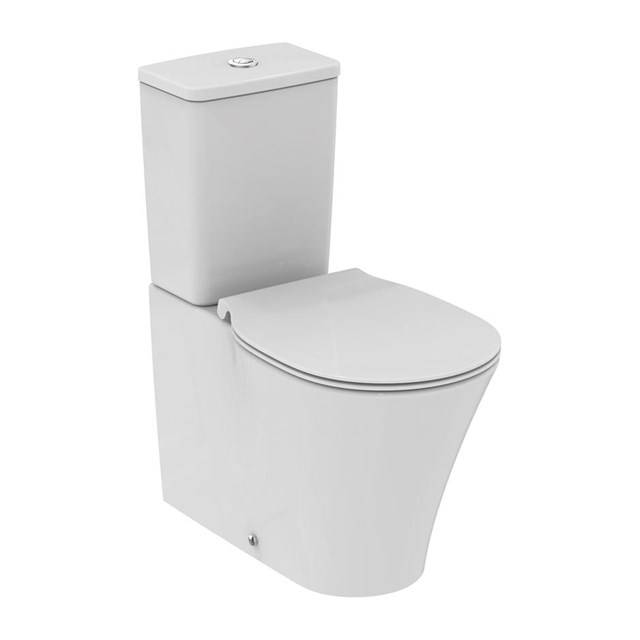

Concept Air close coupled back to wall wc pan with Aquablade technology, horizontal outlet

  • Domestic and commercial use
  • Push button dual flush cistern
  • Part of an extensive range
  • Slow close seat option
  • Water efficient
  • Choice of seat style
  • Aquablade flushing technology

General information
Finish

White - (01)

Features

Air close coupled bowl, back-to wall with aquablade technology, horizontal outlet-wrapover seat

Air close coupled bowl, back-to wall with aquablade technology, horizontal outlet-sandwich slim seat

Shape

Sculptured

Size

365 x 663 x 400 mm

WarrantyDescription

Manufacturers Warranty

Uniclass 2015
Pr_40_20_93_94 WC pansPrimary
Specification data - WC pans
Product Reference

E0798 - Concept Air Close Coupled Back to Wall WC Suite With Aquablade Technology

Concept Air Close Coupled Back to Wall WC Pan

E0799 - Concept Air Close Coupled Back to Wall WC Suite With Aquablade Technology

Concept Air Close Coupled Back to Wall WC Pan

Finish

White - (01)

Standard product features

WC Pan:

  • Material: Vitreous China
  • Weight: 29.74 kg
  • Standards: Vitreous china to BS3402. WC pan to BS EN 997 and BS EN 33

Cistern:

  • Capacity: 4.0 litres
  • Secondary Capacity: 2.6 litres
  • Material: Vitreous China
  • Weight: 10.44 kg

WC Seat:

  • Material: Plastic
  • Weight: 2.10 kg

Product Options

WC screwed to floor and cistern screwed to wall. Joint to wall and WC pan sealed with waterproof sealant (not supplied).

Digital objects
PlatformCompatibleVersionCertified to
Revit
Revit 2014 1 1.3
Download now from NBS National BIM Library
