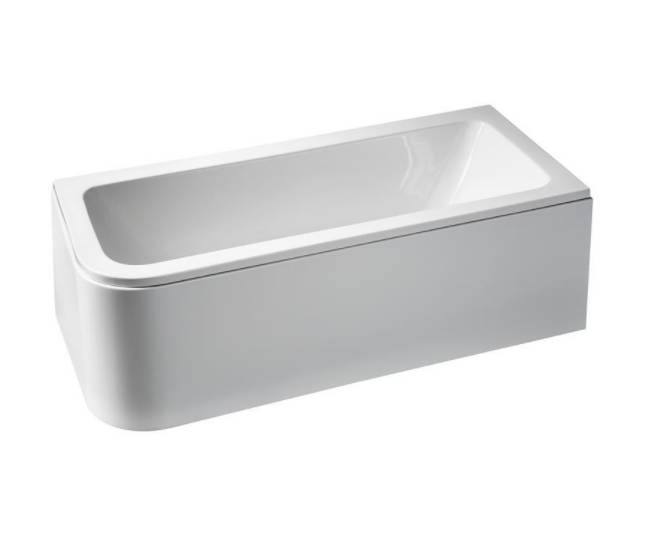

Concept Air - 170 x 75 cm Asymmetrical Bath Right Hand

Verified by manufacturer over a year ago

Ideal Standard (UK) Ltd

170 x 75 cm asymmetrical Idealform bath, right hand with no taphole.

Jump to:
+44 (0)870 122 8822 Website

Application

Suitable for domestic and hotel applications.

Description

The Connect Air 170 x 75 cm asymmetrical bath has the added feature of being double-ended. It’s a great addition to the Connect Air bathing family. Its style fits in perfectly yet its shape gives design differentiation, whilst still being functional. The asymmetrical bath is compatible with Ideal Standard shower screens.


Features and benefits:

  • Domestic and hotel use.
  • Part of an extensive range.
  • Supplied no taphole for maximum flexibility.
  • Dedicated panel.
  • Also available as Idealform Plus+.

General information

Color

White

Material

Guidance for specification option:

Idealform Plus+.

Shape

Rectangle

Length

1695 mm

Width

745 mm

Height

540 mm

Uniclass

Pr_40_20_06_08 BathsPrimary

CAWS

N13/35 Baths

N13/355 Baths

Specification data - Baths

Form

Rectangular.

Standards

To EN 198:2008 and EN 14513.

Materials

Idealform.

Colour

White.

Size

1695 x 745 x 540 mm.

Manufacturer guidance

Length x width x height.

Volume to overflow (maximum)

187.0 L.

Water supply, overflow and waste holes

-

Water supply

No tap holes.

Waste

Bottom waste outlet.

Integral accessories

Not required.

Thermostatic Valve - A5901.

Guidance for specification option:

TMV thermostatic mixing valve, 22 mm.

Bath Waste - E1486.

Guidance for specification option:

Luxury bath pop-up waste and overflow.

Bath Front Panel - E1541.

Guidance for specification option:

Connect Air 170 cm asymmetric bath front panel.

Trap - S8970.

Guidance for specification option:

Trap 1½" plastic P with 75 mm seal, multi-purpose outlet suitable for plastic and BS copper pipe.

Brassware - A7051.

Guidance for specification option:

Connect Air single lever 2 tap hole bath filler.

Weight

26.50 kg.
