Concept 170 x 70 cm Spacemaker
Verified by manufacturer over a year ago
E0498 - Right Handed
E0498 - Right Handed

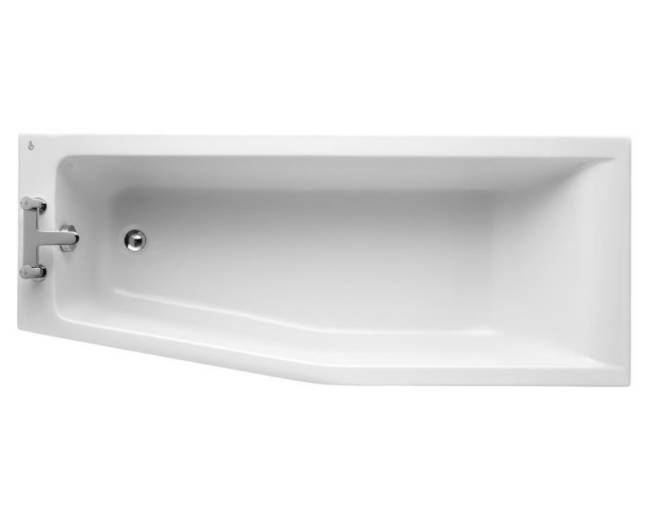

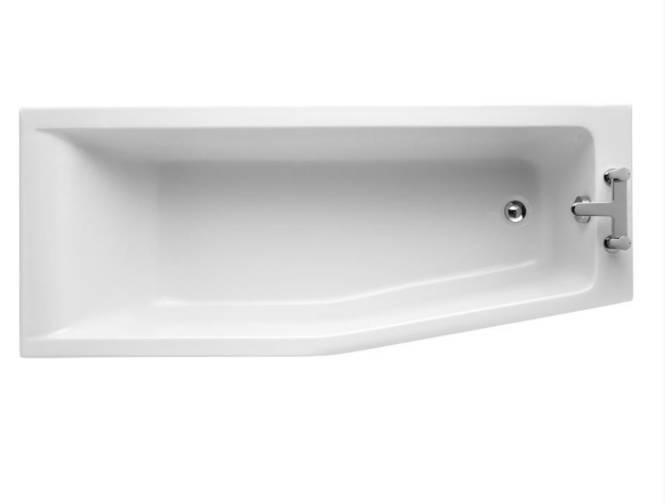

170 x 70 cm Idealform Spacemaker shower bath with no tapholes, right or left hand.
Application
Suitable for domestic and hotel applications.
Description
Concept Space consists of a wide range of ceramic pieces, storage and bathing solutions with innovative features providing the best possible use of space in any bathroom area. Concept Space can be mixed and matched seamlessly with the vast Concept product portfolio.
Features and benefits
- Domestic and hotel use.
- 550 mm width at narrow end.
- Supplied no tap holes for flexibility.
- Ergonomic back rest.
- Also available in Idealform Plus+.
General information
Color | White |
Material | Guidance for specification option: Idealform. |
Shape | Rectangle Guidance for specification option: Asymmetric. |
Length | 1695 mm |
Width | 695 mm |
Height | 379 mm |
Uniclass | |
CAWS | N13/35 Baths N13/355 Baths |
Specification data - Baths
Form | Shower bath - right hand. |
Standards | To BS EN 14516. |
Materials | Idealform. |
Colour | White. |
Size | 1695 x 695 x 379 mm.Manufacturer guidanceLength x width x height. |
Volume to overflow (maximum) | 164.0 L. |
Water supply, overflow and waste holes | |
Water supply | No tap holes. |
Waste | Bottom waste outlet. |
Integral accessories | Not required.Thermostatic Valve - A5901.Guidance for specification option: TMV thermostatic mixing valve, 22 mm. Brassware - B9929.Guidance for specification option: Concept bath filler 2 hole dual control. Bath Front Panel - E0501.Guidance for specification option: Concept 170 cm Spacemaker shower bath front panel. Bath Waste - E1486.Bath End Panel - E3169.Guidance for specification option: Unilux 70 cm end panel. Trap - S8970.Guidance for specification option: Trap 1½" plastic P with 75 mm seal, multi-purpose outlet suitable for plastic and BS copper pipe. Brassware - A7051.Guidance for specification option: Connect Air single lever 2 tap hole bath filler. Brassware - B9930.Guidance for specification option: Concept bath shower 2 hole mixer with shower set. Brassware - B9990.Guidance for specification option: Concept bath shower 1 hole mixer with shower set. Brassware- B9991.Guidance for specification option: Concept wall mounted 2 hole single lever bath shower mixer. Brassware - BC707.Guidance for specification option: Cerafine O dual control bath filler. |
Weight | 24.15 kg. |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
