Concept 150 x 85 cm Square
Verified by manufacturer over a year ago
E0494 - Right Handed
E0494 - Right Handed

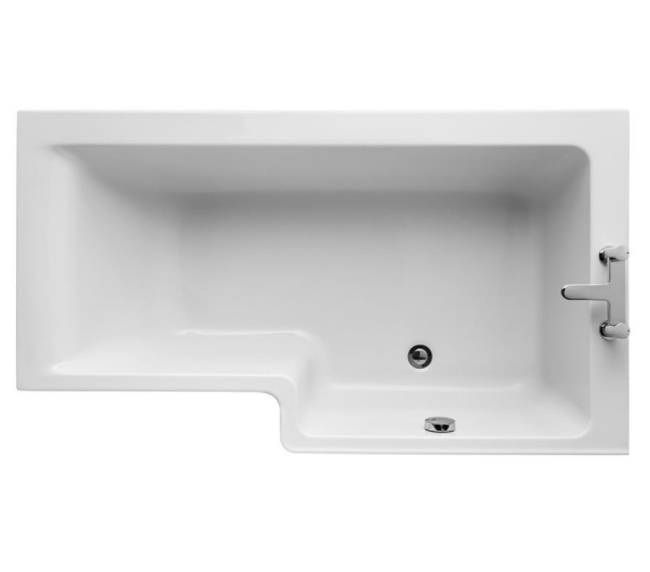

150 x 85 cm Idealform Square shower bath with no tapholes, right hand.
Application
Suitable for hotel and residential use.
Description
Concept Space consists of a wide range of ceramic pieces, storage and bathing solutions with innovative features providing the best possible use of space in any bathroom area. Concept Space can be mixed and matched seamlessly with the vast Concept product portfolio.
Features and benefits:
- Also available as 170 cm.
- Flexibility to install brassware on the end or side.
- Also available as Idealform Plus+.
General information
Color | White |
Material | Guidance for specification option: Idealform. |
Shape | Other Guidance for specification option: Shower bath. |
Length | 1495 mm |
Width | 845 mm |
Height | 540 mm |
Uniclass | |
CAWS | N13/35 Baths N13/355 Baths |
Specification data - Baths
Form | Shower bath - right hand. |
Standards | To BS EN 14516. |
Materials | Idealform. |
Colour | White. |
Size | 1495 x 845 x 540 mm.Manufacturer guidanceLength x width x height. |
Water supply, overflow and waste holes | |
Water supply | No tap holes. |
Waste | Bottom waste outlet. |
Integral accessories | Not required.Thermostatic Valve - A5901.Guidance for specification option: TMV thermostatic mixing valve, 22 mm. Brassware - B9929.Guidance for specification option: Concept bath filler 2 hole dual control. Bath Front Panel - E0506.Guidance for specification option: Concept 150 cm Square shower bath front panel. Bath Screen - E0508.Guidance for specification option: Concept Square shower bath screen, clear glass and bright silver finish. Bath Waste - E1486.Guidance for specification option: Luxury bath pop-up waste and overflow. Bath End Panel - E4831.Guidance for specification option: Unilux Plus+ 70 cm end panel. Trap - S8970.Guidance for specification option: Trap 1½" plastic P with 75 mm seal, multi-purpose outlet suitable for plastic and BS copper pipe. Brassware - A7051.Guidance for specification option: Connect Air single lever 2 tap hole bath filler. Brassware - B9930.Guidance for specification option: Concept bath shower 2 hole mixer with shower set. Brassware - B9990.Guidance for specification option: Concept bath shower 1 hole mixer with shower set. Brassware - B9991.Guidance for specification option: Concept wall mounted 2 hole single lever bath shower mixer. Brassware - BC707.Guidance for specification option: Cerafine O dual control bath filler. |
Weight | 23.00 kg. |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
