Concealed Rainwater Pipes - Internal Low-Pressure System
Verified by manufacturer 2 months ago

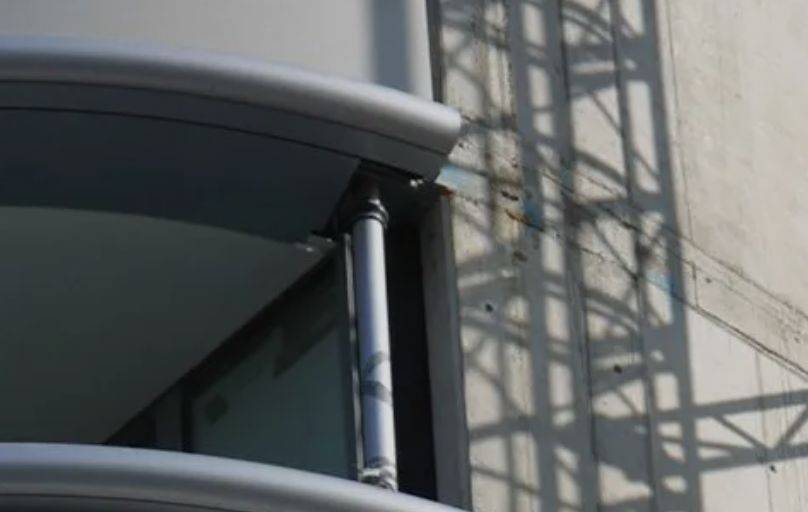

Ø75 mm concealed rainwater pipe
Ø75 mm concealed rainwater pipe
Warringtonfire
Certificate type
Internal low-pressure pipe system available to suit a range of couplings comprising a stainless steel collar and an EPDM gasket for jointing aluminium pipes from 50 to 200 mm.
Application
Internal low-pressure pipe system suitable for use in:
- Domestic.
- Commercial.
- Public buildings.
In accordance with:
- BS EN 12056-2:2000.
- BS EN 12056-3:2000.
- BS EN 752:2008.
- BS EN 877:1999.
Concealed rainwater pipes for above-ground drainage systems for the conveyance by combined or separate systems of surface and above ground rainwater as is permitted to be discharged into public sewers by the Water Industry Act 1991, Chapter 56, the Sewerage (Scotland) Act 1968 and the Water and Sewerage Services (Northern Ireland) Order 1973.
Description
Internal low-pressure pipe system is available to suit a range of couplings comprising a stainless steel collar and an EPDM gasket for jointing aluminium pipes from 50 to 200 mm.
Features and benefits:
The system joints remain watertight under conditions of pipeline movement and have adequate resistance to the type and quantity of chemicals likely to be found in above-ground rainwater drainage. An independent examination of the system satisfied the requirements of BS EN 877:1999 including:
- Properties of EPDM sealing gasket;
- Watertightness at an internal pressure of 5 bar for sizes up to 200Ø;
- Watertightness at a pressure of 0.5 bar;
- Effects of thermal cycling;
- Ease of jointing.
General information
Color | Silver Other Beige Black Blue |
Finish | Powder-coated Anodized Textured Metallic Other |
Material | Aluminium Stainless steel |
Shape | Circle Manufacturer guidanceCross section. |
Length | 3000 mm Bespoke |
Width | 75 mm 100 mm 150 mm 200 mm |
Height | 75 mm 100 mm 150 mm 200 mm |
Warranty description | Other Manufacturer guidanceFinish warranty available and determined upon applicated based upon geographical location. |
Uniclass | |
CAWS | R10/30 Aluminium pipework R10/370 Aluminium pipework |
Specification data - Aluminium rainwater pipes and fittings
Form | Extruded. |
Section | Round. |
Size (nominal) | DN 75.Guidance for specification option: Main pipe section maximum 6000 mm long as standard. |
Minimum thickness or gauge | 2 mm.Guidance for specification option: As standard, to BS 2997. Also available in 2.5 and 3 mm thicknesses; consult manufacturer for details. |
Finish and colour | |
Finish | Polyester powder-coated to BS 6496.Guidance for specification option: Standard; insert colour requirements below. Anodized.Guidance for specification option: Insert colour requirements below. Heritage textured.Guidance for specification option: Insert colour requirements below. Metallic.Guidance for specification option: Insert colour requirements below. Special.Guidance for specification option: v |
Colour | RAL, colour.Guidance for specification option: Insert requirements (polyester powder coating only). BS 4800, colour.Guidance for specification option: Insert requirements (polyester powder coating only). Syntha Pulvin, colour.Guidance for specification option: Insert requirements (polyester powder coating only). Other.Guidance for specification option: Insert requirements (all finishes). |
Film thickness (minimum) | Manufacturer's standard.Guidance for specification option: According to finish specified. |
Integral accessories | Guidance for specification option: Consult manufacturer for options and insert requirements. |

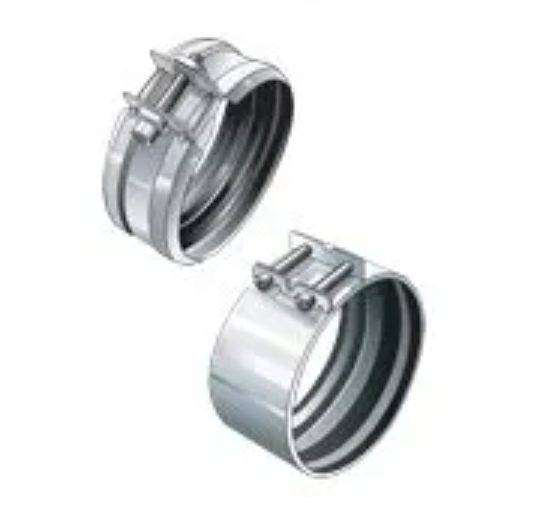

Couplings | Stainless steel collar with EPDM gasket. Guidance for specification option: To suit required pipe size. The couplings are manufactured from stainless steel, cut to size, and profiled in an automated controlled process. Continuous quality control is exercised during and after manufacture to maintain product quality and including:
|
Bends | 92.5°. 112.5°. 135°. Other. Guidance for specification option: Non-standard angles are available; consult manufacturer for options and insert requirements. |
Branches | 92.5°. 112.5°. 135°. Other. Guidance for specification option: Non-standard angles are available; consult manufacturer for options and insert requirements. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 16 kg CO₂ eq/kg Self declared |
Recyclability | Potential 95% + recyclability |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 95 % |
Third party certifications
Warringtonfire
UK Fire Test Results
Literature

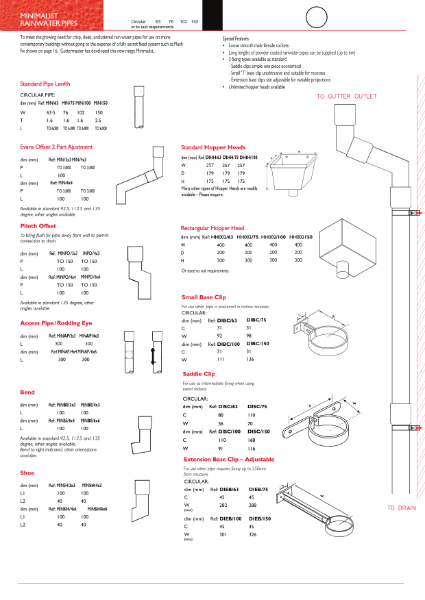

Specification Guide - Minimal Rainwater Pipe
Case studies

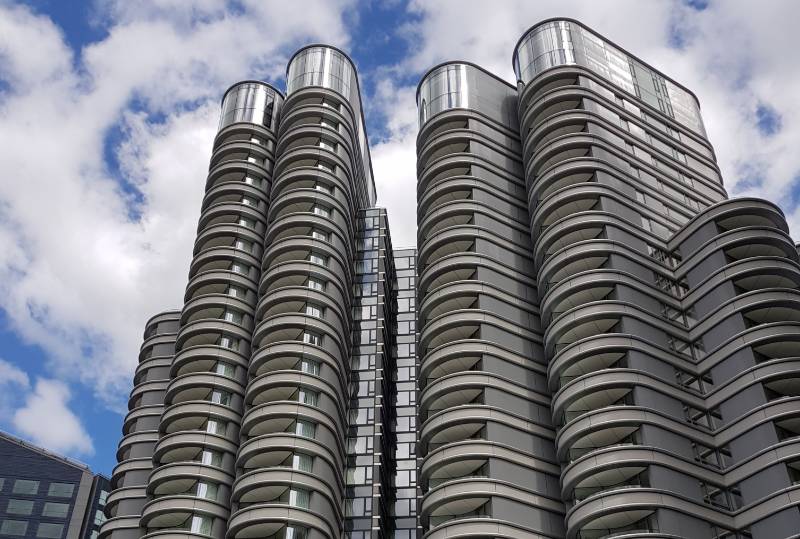

Hampton House
