Compact FF - Shower Drain

Application

Suitable for use in renovation projects.

Description

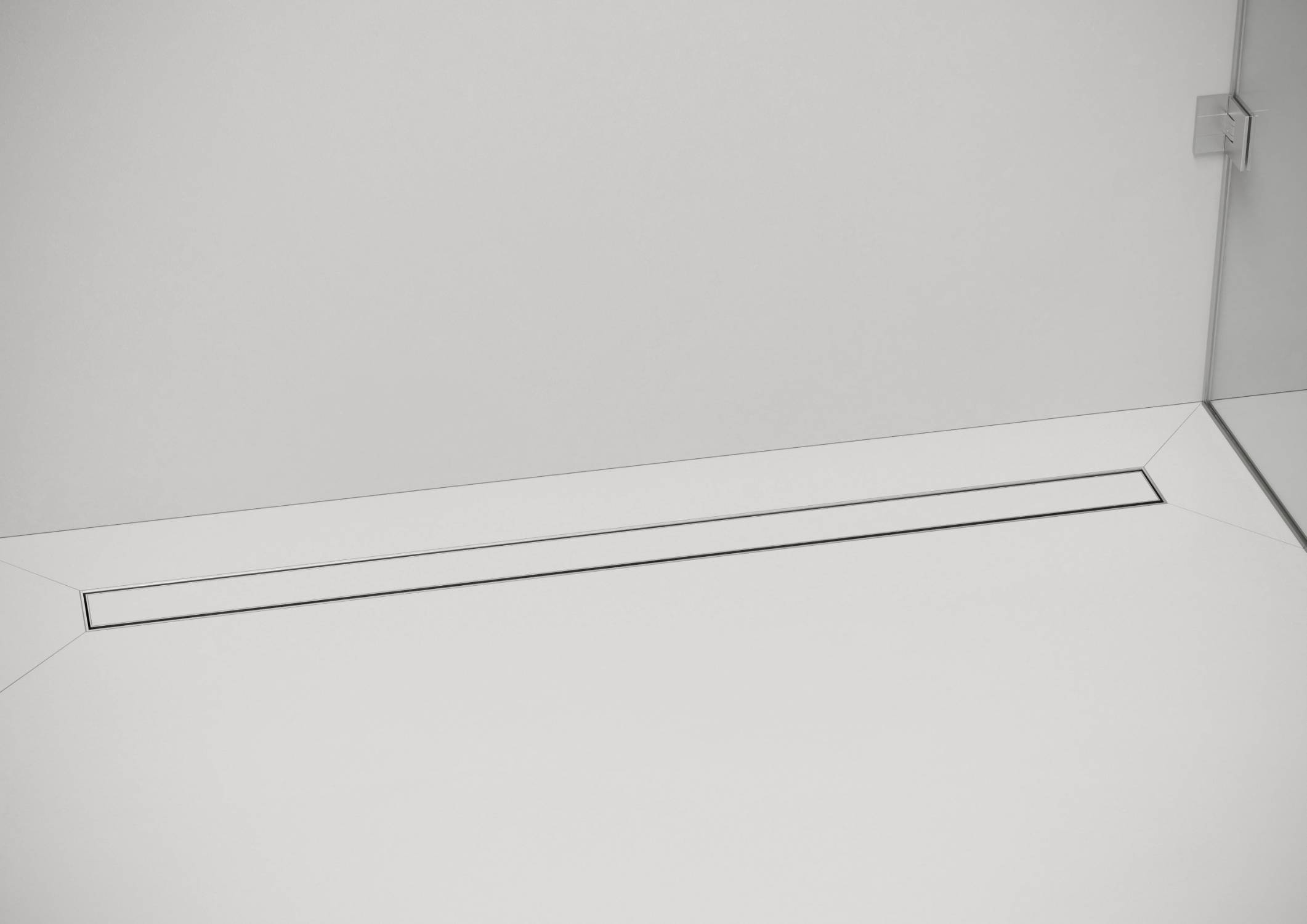

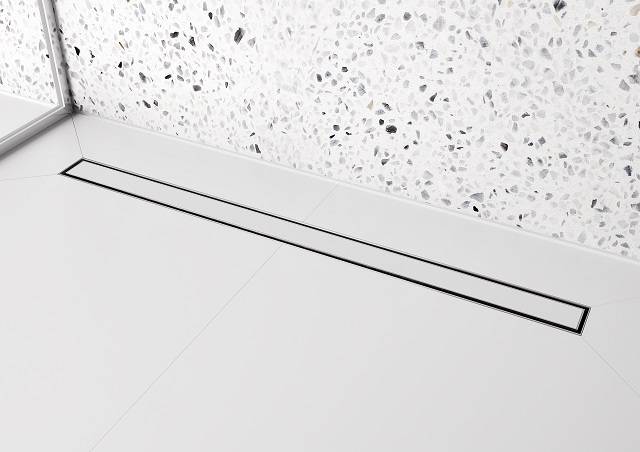

Flat linear shower drain, supplied as standard with an easy-to-clean water seal, with inspection cover for simple access to the connection drainage pipe. It has a pre-assembled sealing membrane with a width of approximate 100 mm to guarantee a waterproof finish.


Features and benefits:

  • Available in lengths of 500–2000 mm.
  • 43 mm minimum installation depth.
  • WPS: 100% watertight with ten-year warranty.
  • Height-adjustable grate.
  • EN 1253-certified.
  • ETAG-022-certified.


General information

Finish

Brushed

Material

Polypropylene

Shape

Rectangular

Size

61 x 700 x 74.5 mm

WarrantyDescription

Ten years

Uniclass 2015

Pr_65_52_24_31 Floor gulliesPrimary

CAWS

R11/315 Floor drains

Specification data - Floor gullies Enhanced data

Standard

To EN 1253 + ETAG-022.

Body

-

Configuration

Siphon.

Material

Polypropylene.

Cover or grating

-

Cover or grating type

Open grating.

Solid cover.

Tile.

For 12 mm depth tile.

Material

Not applicable.

For tile.

Stainless steel.

Finish

Not applicable.

For tile.

Brushed.

For open grating.

Zero+ brushed.

For solid cover.

Outlet

Horizontal fixed.

Product Reference

Compact FF - Shower drain

Length

500 mm.

600 mm.

700 mm.

800 mm

900 mm.

Show more

Water seal height

30 mm.

32 L/m drainage capacity, 63 mm minimum installation depth.

50 mm.

42 L/m drainage capacity, 83 mm minimum installation depth.

Connection

30 mm water seal height: 40 mm; 50 mm water seal height. Global: 50 mm; UK: 56 mm.

Suitable substrates

Concrete/ sand cement, Lewis sheets or wooden floors.

Suitable floor finishes

Tiles/ mosaic, glass mosaic, thin tiles.

Environmental information

Country of material origin

Netherlands

Country of product manufacture

Germany

Digital objects

Platform Compatible Version Certified to
Revit

Revit 2017

1

2.0
Download now from NBS National BIM Library
