Commercial Roller Grille - Alulink G1 - Roller Shutter Grille

Verified by manufacturer 13 days ago

HAG Ltd. - The Door Specialists Third party certifications:
  • ADSA

    ADSA

    Certificate type

  • Alcumus SafeContractor

    Alcumus SafeContractor

    Certificate type

  • CHAS

    CHAS

    Certificate type

  • Constructionline

    Constructionline

    Certificate type

  • dhf certificate

    dhf certificate

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

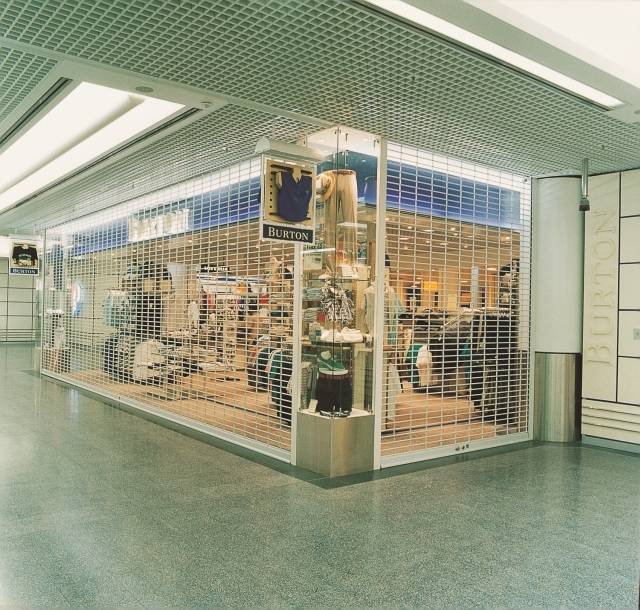

A 70% through-vision aluminum open chain mail roller shutter grille, featuring inline links and tubes, allowing for ventilation and visibility while providing a reliable level of security.

Jump to:
0800 072 3444 Website

Application

Aluminium open chain mail (inline link and tube) roller shutter grille allowing for ventilation and vision while delivering a suitable level of security suitable for:

  • Internal application in kiosk, bars, retail units, shop front security, receptions, restaurants, kitchen servery hatches, airports train stations, librarys, museums where vision or ventilation is required.
  • Educational settings such as schools, academies, colleges & universities.
  • Healthcare settings such as pharmacies, GP surgeries & hospitals.

Description

An aluminum open chain mail roller shutter grille (inline link and tube design) that offers ventilation and visibility while providing an effective level of security.

Features and benefits:

  • Allows for through-vision and air-flow/ ventilation.
  • Mill finish as standard, coloured powder-coating as an optional extra.
  • Maximum width up to 6000 mm.
  • Manual or electrical operation.

General information

Color

Silver

Guidance for specification option:

Standard.

Other

Guidance for specification option:

500 RAL and BS colours available.

Finish

Mill

Guidance for specification option:

Standard.

Powder-coated

Guidance for specification option:

Polyester powder-coated (PPC).

Material

Aluminium

Guidance for specification option:

Shutter box constructed from galvanized steel.

Shape

Rectangle

Length

Bespoke

Width

6000 mm

Manufacturer guidance

Maximum width.

Height

Bespoke

Warranty description

One year

Uniclass

Pr_30_59_84_72 Roller grillesPrimary

CAWS

L20/60 Doors

L20/612 Roller grilles

Product range

Alulink Roller Shutters

Specification data - Roller grilles

Opening sizes

-

Manufacturer guidance

Insert requirements: maximum width up to 6000 mm, consult manufacturer for height options.


Shutter box size is dependent on overall height (top of box) specified:

  • 1300 mm: Box size: 254 mm.
  • 2000 mm: Box size :305 mm.
  • 3000 mm: Box size: 355 mm
  • 4000 mm: Box size 400 mm.
  • 5000 mm: Box size: 500 mm.

Arrangement

Vertical rolling inline link and tube roller shutter grille.

Grille curtain

-

Material

Aluminium.

Finish and colour

Mill.

Guidance for specification option:

Standard.

Anodized, colour.

Guidance for specification option:

Insert colour requirements.

Polyester powder-coated, colour.

Guidance for specification option:

Insert colour requirements.

Frame and guides

-

Material

Steel/ aluminium.

Guidance for specification option:

Construction:

  • Standard guide rails: 38 x 29 x 3 mm or 100 x 32 x 3 mm dependent on width.
  • Electric shutters require a 50 x 50 mm steel box section (both sides) used to allow for motor unit and safety brake.
  • A 76 x 50 mm box section will be used for shutters over 160 kg in weight (5000 x 3200 mm approximately).

Finish

Mill.

Guidance for specification option:

Aluminium.

Anodized.

Galvanized.

Guidance for specification option:

Steel.

Polyester powder-coated.

Colour

Not required.

Guidance for specification option:

Mill finish aluminium and galvanized steel.

Manufacturer guidance

  • For Polyester powder-coated finish, 500 RAL or BS colours are available.
  • For Anodized finish, consult manufacture for options and insert requirements.

Operation

-

Mode

Manual - spring loaded.

Guidance for specification option:

Counter balanced spring ensures controlled raising and lowering.

Electrical - single phase.

Guidance for specification option:

  • A tubular motor within the barrel assembly with limit switches and thermal cut out to prevent overheating.
  • Draw: 240 V and 0.5–2.5 A dependent upon the shutter size. Provision of a 13 A fused spur is required for installation.
  • Please note when electric option is specified please confirm how you will lock shutter as this product does NOT self lock.

Electrical - three phase.

Guidance for specification option:

  • Design of the model will alter for three phase operation. Electrical requirements are dependent on usage, further details on request.
  • Please note when electric option is specified please confirm how you will lock shutter as this product does NOT self lock.

Control

Rocker switch.

Security key switch.

Manufacturer guidance

  • A manual override is included to operate the shutter in the event of a power failure. This is usually only operable from only one side.
  • Other controls are available on request.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Material

Aluminium

Guidance for specification option:

Shutter box constructed from galvanized steel.

Recyclability

95

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

75 %

Third party certifications

ADSA

ADSA Membership

Alcumus SafeContractor

Alcumus Safe Contractor Certificate of Accreditation

CHAS

CHAS Certificate of Accreditation

Constructionline

Construction Line Gold Membership

dhf certificate

DHF Full Member

ISO 9001 Quality Management

ISO 9001

Alcumus SafeContractor

SAFE PQQ Alcumus Safe Contractor
