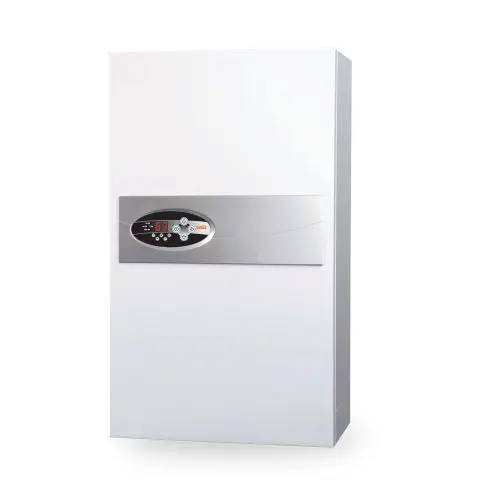

Comet Electric Boilers - System Boiler

Verified by manufacturer 8 months ago

6 kW - EHCCOM6KW

Electric Heating Co Ltd Variant:
Third party certifications:
  • UK Conformity Assessed (UKCA)

    UK Conformity Assessed (UKCA)

    Certificate type

Outputs in single phase from 6 kW to 14.4 kW, designed to eliminate external plumbing and pipe work.

Jump to:
+44 (0)1698 820533 Website

Application

  • Suitable for central heating only or central heating and hot water when installed with a hot water cylinder.
  • Suitable for underfloor heating.
  • Can be used as a back-up for heat pumps.

Description

Comet Electric System Boilers are designed to eliminate unnecessary external plumbing and pipe work. They are a particularly suitable choice for wet central heating and underfloor heating systems and have been engineered to include the pump, auto-air vent, expansion vessel and auto-bypass within the compact casing. The single-phase boilers are available in four outputs, 6 kW, 9 kW, 12 kW and 14.4 kW, which is suitable for properties that require larger outputs.


Features and benefits:

  • Outputs from 6 kW to 14.4 kW.
  • 100% efficient.
  • Integral sealed system kit.
  • Virtually silent in operation.
  • Six stage heating and stainless steel heat exchanger reduces electricity consumption and running costs.
  • Volt-free control connections.
  • Integral system diagnostics.
  • Easy-fit connectors and sensors.
  • In-built fault finding diagnostics.
  • High current thermal cut-out.
  • Vortex flow temperature sensor.
  • Digital pressure gauge.
  • ErP smart pump.
  • Removable bottom tray.
  • Five year warranty.



Revolutionise your home heating with our state-of-the-art Electric Boilers and Combi Boilers, offering sustainable solutions for efficient central heating. Our diverse range encompasses Electric Heating systems, providing reliable warmth for your space. Whether you're in the UK or beyond, our Central Heating Boilers, including Electric Water Boilers, guarantee a seamless and eco-friendly heating experience. Explore the innovation of Electric Combi Boilers, ensuring both versatility and sustainability. With our commitment to sustainable heating practices, we deliver a range of Boilers that prioritise energy efficiency. Elevate your comfort and environmental consciousness with our advanced Electric Boilers, redefining the future of home heating.

General information

Color

White

Finish

Gloss

Material

Stainless steel

Shape

Rectangle

Length

251 mm

Width

418 mm

Height

710 mm

Warranty description

Five year

Guidance for specification option:

Terms and conditions apply; consult manufacturer for details.

Uniclass

Pr_60_60_08_27 Electric boilersPrimary

CAWS

T90/322 Boilers, electric

Specification data - Electric boilers

Boiler type

System.

Output

6 kW.

Energy efficiency rating

D.

Mounting

Wall-mounted.

Operating pressure

0.5 bar (minimum); 3.0 bar (maximum).

Operating temperature

20℃ (minimum); 85℃ (maximum).

Heat exchanger

Stainless steel.

Electrical supply type

Single-phase.

Guidance for specification option:

240 V, 1 ph, 50 Hz.

Accessories

Not required.

Single channel programmer - EC10001.

Twin channel programmer - EC10002.

Room thermostat - EC100012.

'S' plan twin channel heat pack - EC10011.

Supreme saver hot water programmer - E10SS/7.

Shower flow sensor - ESFS15/C.

Dimensions

710 x 418 x 251 mm.

Manufacturer guidance

Overall height x width x depth.

Weight

25 kg.

Expansion Vessel Size

6.0 L.

Pipes

22 mm.

Manufacturer guidance

Flow and return pipes.

Current

25 Amp.

Manufacturer guidance

Load/ Current.

Output

20472 Btu.

Manufacturer guidance

Heating output.

Diameter

6 mm.

Manufacturer guidance

Recommended diameter of mains cable.

Protection

32 Amp.

Sustainability data

Contains Red List materials

No

Country of material origin

Poland

Country of product manufacture

Poland

Recyclability

YES

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

100 %

Third party certifications

UK Conformity Assessed (UKCA)

UK Conformity Assessed (UKCA)

UKCA ELECTRIC FUSION COMET SYSTEM BOILER
