Comet Electric Boiler - Pre-Plumbed Cylinder Packages

Verified by manufacturer 8 months ago

9 kW/ 150 L - EHCCOM9/150PPC

Electric Heating Co Ltd Variant:
Third party certifications:
  • UK Conformity Assessed (UKCA)

    UK Conformity Assessed (UKCA)

    Certificate type

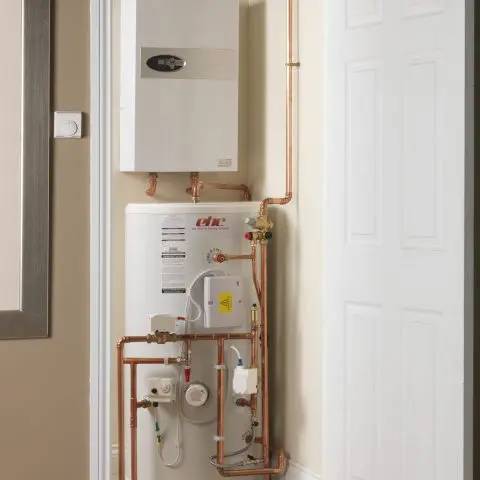

Comet boiler and pre-plumbed/ pre-wired indirect cylinder packages available in various outputs and cylinder sizes.

Jump to:
+44 (0)1698 820533 Website

Application

  • Suitable for domestic use.
  • Suitable for underfloor heating.

Description

Comet boiler and pre-plumbed and pre-wired indirect stainless steel cylinder packages are available in various outputs and cylinder sizes ranging from 9 kW to 14.4 kW boilers and 150 litre to 210 litre cylinder capacity. They have been designed to reduce installation time by up to 70% and eliminate unnecessary external plumbing and pipe work.


Features and benefits:

  • Ensures all heating and hot water appliances are installed using the same configuration.
  • Boiler provides central heating only and domestic hot water is provided by the pre-plumbed indirect unvented cylinder.
  • Cost effective option.
  • Choice of single-phase Comet boiler (9 kW, 12 kW or 14.4kW).
  • Choice of indirect unvented stainless steel cylinder.
  • Twin channel programmer.
  • Room thermostat.
  • Two part zone valve (x2).
  • Wiring centre.
  • Dual cylinder thermostat.
  • Auto bypass and filling loop.

Comet Electric Boilers

  • Sleek and modern fully controllable system boiler.
  • 100% energy efficient.
  • Integral sealed system kit.
  • Silent in operation.
  • Six stage heating.
  • Stainless steel heat exchanger.
  • Economic running costs.
  • Volt-Free control connections.
  • Integral system diagnostics,
  • Easy-fit connectors and sensors.
  • High current thermal cut-out.
  • Vortex flow temperature sensor.
  • Digital pressure gauge.
  • ErP smart pump.
  • Removable bottom tray
  • No flue required.
  • No fumes and no risk of explosion.
  • In-built fault finding diagnostics.
  • Five year warranty T's & C's.

Pre-Plumbed Cylinder

  • ErP C-rated hot water cylinder.
  • 50 mm insulation.
  • T&P relief valve.
  • DHW zone valve.
  • Heating zone valve.
  • Drain point.
  • Backup 3 kW immersion heater.


Boiler pack components:

  • Room thermostat.
  • Twin channel programmer.
  • Two zone valves.
  • Cylinder thermostat.
  • Wiring centre.



Elevate your home's comfort with our cutting-edge heating solutions! From efficient Electric Boilers, including Single-Phase, 3-phase and Electric Combi options, to the convenience of pre-plumbed and pre-wired Cylinders, we offer a diverse range of choices. Ensure a seamless integration into your central heating system with our Central Heating Boilers, tailored for the UK market. Enjoy the luxury of instant Hot Water with our advanced Water Heaters and Boilers. Explore the innovative technology of our Electric Heating products, including EHC solutions, designed for reliable and energy-efficient warmth. Whether you choose a pre-plumbed Cylinder for easy installation or a pre-wired option for simplified setup, our collection caters to your diverse heating needs, creating a cosy and welcoming home environment.

General information

Color

White

Finish

Gloss

Material

Stainless steel

Shape

Rectangle

Other

Length

251 mm

Width

418 mm

Height

710 mm

Warranty description

Five year

Guidance for specification option:

Boiler.

25 year

Guidance for specification option:

Indirect unvented stainless steel cylinder.

Two year

Guidance for specification option:

Twin channel programmer, room thermostat, two port zone valve (x2), wiring centre, dual cylinder thermostat and auto bypass and filling loop.

Uniclass

Pr_60_60_08_27 Electric boilersPrimary

CAWS

S90/150 Indirect hot water storage supply

S90/150 Indirect hot water storage supply

T90/322 Boilers, electric

Specification data - Electric boilers

Boiler type

System.

Integral cylinder

150 L stainless steel pre-plumbed and pre-wired indirect unvented cylinder with backup 3 kW immersion.

Output

9 kW.

Energy efficiency rating

D (heating).
C (hot water).

Mounting

Wall-mounted (boiler).
Floor standing (cylinder).

Operating pressure

0.5 bar (minimum); 3.0 bar (maximum).

Operating temperature

20℃ (minimum); 85℃ (maximum).

Heat exchanger

Stainless steel.

Electrical supply type

Single-phase.

Guidance for specification option:

240 V, 1 ph, 50 Hz.

Casing material

Stainless steel (cylinder).

Accessories

Not required.

ADEY Magnaclean and Chemical Pack.

Expansion Vessel Size

6.0 L.

Current

38 Amp.

Manufacturer guidance

Load/ Current.

Output

30709 Btu.

Manufacturer guidance

Heating output.

Diameter

10 mm.

Manufacturer guidance

Recommended diameter of mains cable.

Protection

50 Amp.

Sustainability data

Contains Red List materials

No

Country of material origin

Poland

Country of product manufacture

Poland

Recyclability

YES

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

100 %

Third party certifications

UK Conformity Assessed (UKCA)

UK Conformity Assessed (UKCA)

UKCA NEPTUNE UNVENTED INDIRECT / PRE PLUMBED CYLINDER

UK Conformity Assessed (UKCA)

UK Conformity Assessed (UKCA)

UKCA ELECTRIC FUSION COMET SYSTEM BOILER
