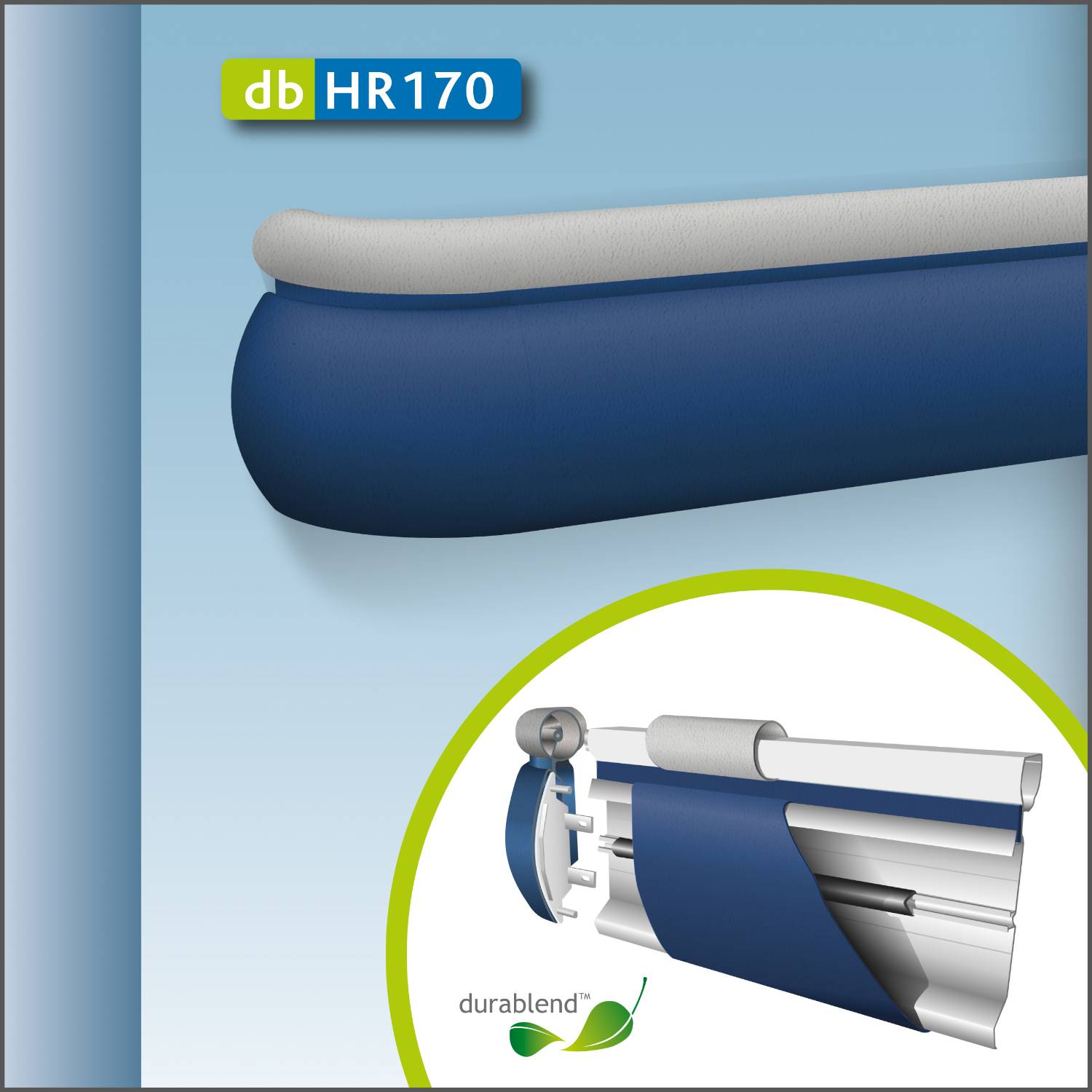

Combined Hand and Crash rail db HR170

Application

Busy circulation zones.

Description

Combined hand and crashrail used for providing heavy duty impact protection and pedestrian support. Designed for interior use and suited to busy corridors and circulation areas.


Features and benefits:

  • 170 mm deep, 100 mm stand-off, 40 mm diameter handrail.
  • durablend™ cover, endcaps and brackets over aluminium retainer.
  • Continuous concealed shock absorbing bumper.
  • Unique mounting brackets with diagonal fixing points.
  • Available in 25 durablend™ colours.
  • Entirely recyclable polyvinyl chloride (PVC) free product.

General information

Color

Other

Available in 10 standard stock colours and 15 semi-standard colours. See SDS Protection website for details.

Shape

Circular

handrail.

Curved

 crashrail.

Size

170 x 40 x 4000 mm

(170 x 100 x 4000 mm including mounting brackets).

Uniclass 2015

Ss_25_60_05_35 Handrail systemsPrimary

CAWS

L30/580 Proprietary handrails

L30/70 Proprietary handrails

P20/170 Proprietary

P20/55 Proprietary

P20/30 Proprietary

Specification data - Handrail systems Enhanced data

Handrails

Aluminium handrails.

Heavy duty combined hand/ crashrail with durablend cover over continuous aluminium retainer. Matching endcaps and projecting wall brackets. Concealed internal bumper to absorb impact.

Fixing to parent structure

Projecting brackets.

Site finish

Cashmere.

Lightly stippled durablend 'Cashmere' surfaces with matching durablend wall brackets.

Uniclass 2015 Title

Aluminium brackets.

Product Reference

Combined Hand And Crash Rail db HR170

Anti-microbial coating

Cover impregnated with anti bacterial additives.

Tested in accordance with ASTM G21-96 (Reapproved 2002).

Material:

Aluminium.

Retainer.

durablend™.

Cover and brackets.

Size:

170 x 40 x 4000 mm.

(170 x 100 x 4000 mm including mounting brackets).

ShapeType

Circular handrail.

Curved crashrail.

Chemical resistance

Tested in accordance with ASTM D 543-06.

Fire resistance

Tested in accordance with BS EN 13501-1+A1:2009: B-S1-d0.

Environmental information

Recyclability

Entirely recyclable PVC-free product.

Digital objects

Platform Compatible Version Certified to
IFC

IFC2X3

2

1.3
Revit

Revit 2017

2

1.3
Download now from NBS National BIM Library
