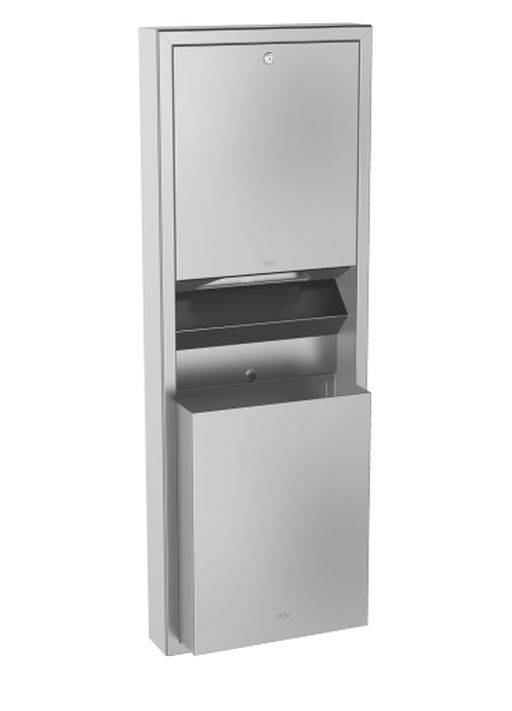

Combination Paper Towel Dispenser and Waste Bin - RODX602

Verified by manufacturer over a year ago

KWC DVS Limited

Rodan combination paper towel dispenser and waste bin for wall mounting.

Jump to:
BOS
+44 (0)1246 458900 Website

Application

For wall mounting.

Description

Rodan combination paper towel dispenser and waste bin for wall mounting.


Features and Benefits:

  • Folded front cover.
  • Cylinder lock with Franke standard key.
  • Loading capacity 500 - 800 pieces of paper depending on convolution.
  • Waste bin with approximately 23 litre capacity, including stainless steel screws and dowels.

General information

Color

Silver

Finish

Satin

Guidance for specification option:

With InoxPlus antifingerprint coating.

Material

Stainless steel

Guidance for specification option:

grade 1.4301 (304)

Shape

Rectangle

Length

1148 mm

Width

411 mm

Height

171 mm

Manufacturer guidance

Projection.

Warranty description

Five year

Uniclass

Pr_40_50_07_96 Waste binsPrimary

CAWS

N13/442 Paper towel dispensers

N13/474 Waste bins

Product range

Bars, bins, dispensers, dryers, fittings

Specification data - Waste bins

Form

Wall mounting.

Materials

Stainless steel.

Guidance for specification option:

grade 1.4301 (304)

Finish and colour

Satin.

Guidance for specification option:

With InoxPlus antifingerprint coating.

Size

411 x 1148 x 171 mm.

Guidance for specification option:

0.8 mm thick.

Capacity

Loading capacity 300–400 pieces of paper depending on convolution, 0.8 L soap tank, waste bin with approximately 23 L capacity

Method of operation

Pull lever.

Product Reference

(RODX602) 201.0000.117

Sustainability data

Contains Red List materials

No

Country of material origin

United Arab Emirates

Country of product manufacture

United Arab Emirates

Recyclability

-

Manufacturer guidance

Recyclable.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

2

IFC
-

1
