Comar-DucoStrip Window Ventilator

Description

A range of high quality aluminium window slot ventilators, available with three slot heights.

Features:

  • Manufactured from extruded aluminium strips.

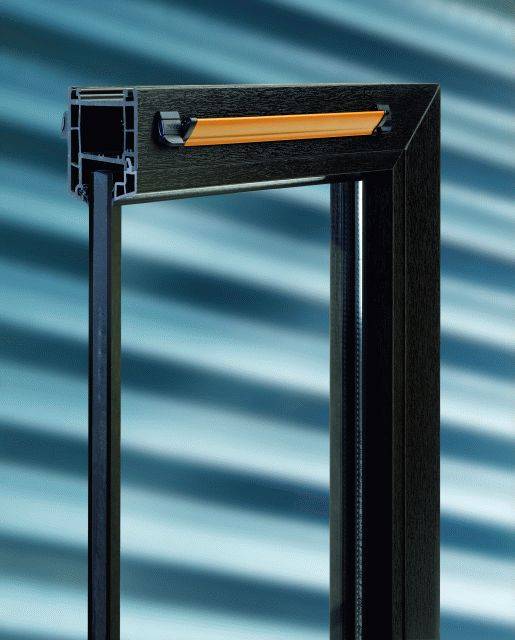

  • Mounted on the window frame – the frame is to be provided with slot(s) on which the DucoStrip is mounted.
  • Complete with canopy on the outside and a flap on the inside.
  • Variants, with canopy on both sides, are available for gas and domestic fuel burning appliances (complies with British Gas requirements).
  • Designed to fit into timber, aluminium or PVC-U window frames.

General information

Finish

Enamelled polyester powder coating, colour RAL 9010

Enamelled polyester powder coating, colour RAL ___

Mill finish

Special bronze anodized

Standard natural anodized

Material

Aluminium: ISO 209-89: 6063

Uniclass

Pr_30_59_57_58 Overhead ventilatorsPrimary

CAWS

H11/110 Curtain walling

L10/10 Wood windows

L10/15 Wood windows

L10/210 Wood windows

L10/25 Aluminium windows

L10/260 Wood windows

L10/33 Proprietary windows

L10/330 Aluminium windows

L10/335 Aluminium windows

L10/390 Proprietary windows

L10/400 Composite windows

L10/410 Composite windows

L20/250 Wood-panelled doors

Specification data - Overhead ventilators Enhanced data

Standard product features

Bridge width:

15 mm (where applicable).

External canopy:

Aluminium profile with insect mesh (bird mesh for 5000 and 10,000 m² versions).

Material:

Aluminium: ISO 209-89: 6063.

Product Options

End caps:

Available in black or white with injection moulded special shaped end caps.

Finish:

  • Enamelled polyester powder coating (60–80 mµ), in RAL 9010 (standard white), or any other RAL colour.
  • Mill finish.
  • Special bronze anodized.
  • Standard natural anodized (15–20 mµ).

Length:

The ventilators are cut from 6 metre long extrusions.

Slot height:

  • 10 mm (with slimline stripvent).
  • 12 mm (with slimline stripvent).
  • 16 mm (with wideline stripvent).
  • 12 and 16 mm, 5000 and 10,000 m² versions comply with British Gas requirements for gas and domestic fuel burning appliances.

Ventilation area:

  • 10 mm slot (340 mm length): 2838 mm².
  • 10 mm slot (450 mm length): 3868 mm².
  • 12 mm slot (290 mm length): 2545 mm².
  • 12 mm slot (370 mm length): 3385 mm².
  • 12 mm slot (900 mm length): 9315 mm².
  • 16 mm slot (230 mm length): 2481 mm².
  • 16 mm slot (290 mm length): 3359 mm².
  • 16 mm slot (360 mm length): 4034 mm².
  • 16 mm slot (410 mm length): 4034 mm².
  • 16 mm slot (460 mm length): 5663 mm².
  • 16 mm slot (680 mm length): 8348 mm².
