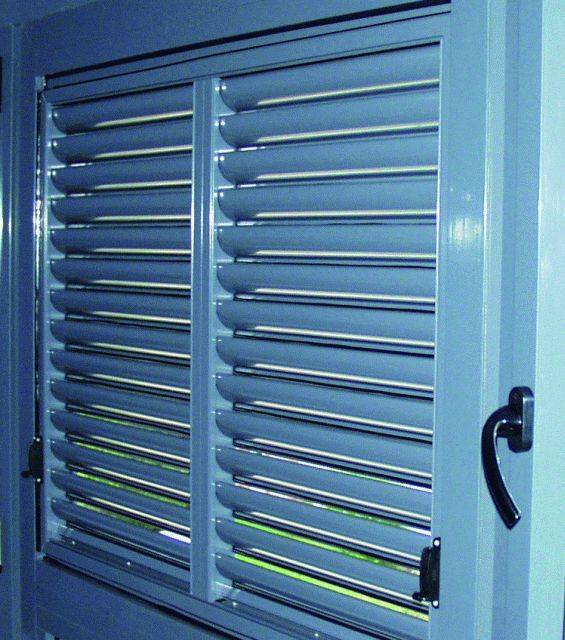

Comar-DucoClose G 35Z Louvre Wall Grille

Description

An adjustable aluminium wall louvre, with 40 mm high blades, available in two finishes.

Features:

  • Provides intensive ventilation.
  • Louvre blades are Z-shaped on the outside and rounded on the inside.
  • Manufactured to the required dimensions of the opening.

General information

Finish

Enamelled polyester powder coated, RAL ___

Satin anodized

Uniclass

Pr_30_59_48_04 Aluminium louvre panel unitsPrimary

CAWS

U90/360 Air transfer grilles

U90/360 Air transfer grilles

Specification data - Aluminium louvre panel units

Standard product features

Frame thickness:

42 mm.

Free area (open position):

51 %.

Height (minimum):

223.5 mm (manual control); 473.5 mm (motorized control).

Nett airflow (open position):

39 %.

Pitch:

50 mm.

Product Options

Finish:

  • Standard: Satin anodized aluminium (15–20 micrometres).
  • Optional: Enamelled polyester powder coated (60–80 micrometres), in any RAL colour.
