Column Casing - Cosmetic Finishing
Verified by manufacturer 2 months ago

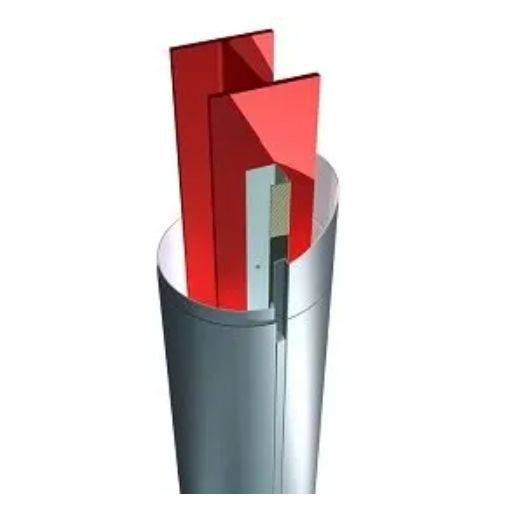

Round column casing
Round column casing
Warringtonfire
Certificate type
Aluminium column casing in round or square profiles.
Application
Casing for cosmetic finishing of column support structures. Cosmetic Finishing Column Casing.
Description
Aluminium column casing.
Features and benefits:
- Round or square profiles are available (consult the manufacturer for detail of the elliptical profile).
- Supplied in standard 2.0 mm thickness to BS 2997, but is also readily available in 2.5 and 3.0 mm.
- Guttermaster systems use only 1050A H14 alloys in compliance with BS requirements.
General information
Color | Silver Other Beige Black Blue |
Finish | Powder-coated Natural Anodized Textured Metallic |
Material | Aluminium |
Shape | Circle Square |
Length | 3000 mm Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Other Manufacturer guidanceFinish warranty available and determined upon applicated based upon geographical location. |
Uniclass |
Specification data - Aluminium flashings
Material | Aluminium. |
Item | Column casing. |
Form of delivery | Preformed item.Guidance for specification option: Extruded. |
Size | |
Thickness (minimum) | 2.0 mm.Guidance for specification option: Standard, to BS 2997. 2.5 mm.3.0 mm. |
Width | Guidance for specification option: Consult manufacturer for options and insert requirements. |
Fixing | Guidance for specification option: Lined, levelled and secured to substructure at joint locations and at maximum 1500 mm centres (unless otherwise specified). Finish to match capping. |
Support | Column casing support profiles A & B plus joint covers.Guidance for specification option: Two per attachment point; consult manufacturer for details. |
Finish | Polyester powder-coated to BS 6496.Guidance for specification option: Standard; insert colour requirements below. Natural.Anodized.Guidance for specification option: Insert colour requirements below. Heritage textured.Guidance for specification option: Insert colour requirements below. Metallic.Guidance for specification option: Insert colour requirements below. Special.Guidance for specification option: Insert colour requirements below. |
Colour | RAL, colour.Guidance for specification option: Insert requirements (polyester powder coating only). BS 4800, colour.Guidance for specification option: Insert requirements (polyester powder coating only). Syntha Pulvin, colour.Guidance for specification option: Insert requirements (polyester powder coating only). Other.Guidance for specification option: Insert requirements (all finishes). Not required.Guidance for specification option: Natural finish. |
Texture | As Finish. |
Profile | Round. Guidance for specification option: 2x semi-circular sections. Manufacturer guidanceElliptical casings also available; consult manufacturer for details. |
Column | Guidance for specification option: Insert details as required. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 16 kg CO₂ eq/kg Self declared |
Recyclability | Potential 95% + recyclability |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 95 % |
Third party certifications
Warringtonfire
UK Fire Test Results
Literature

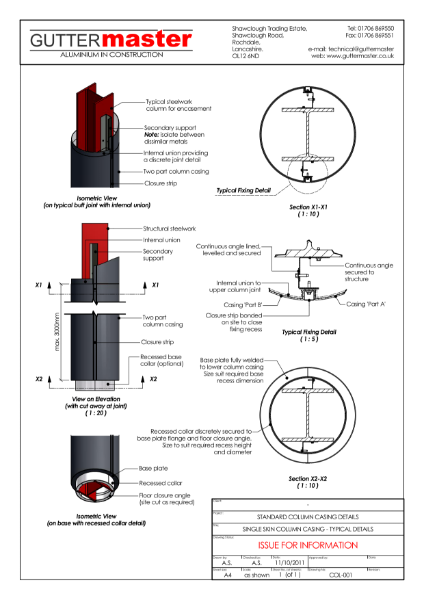

Column Casing Detail
Case studies

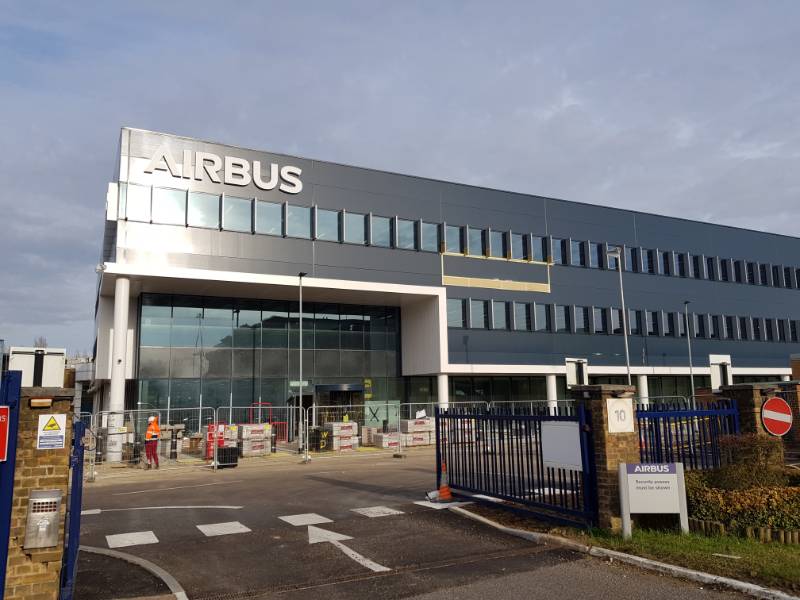

Airbus
