Column Board System

Verified by manufacturer 2 months ago

TK-Team Limited

Multi-surface column board vitreous enamelled steel magnetic whiteboards

Jump to:
01189 734827 Website

Application

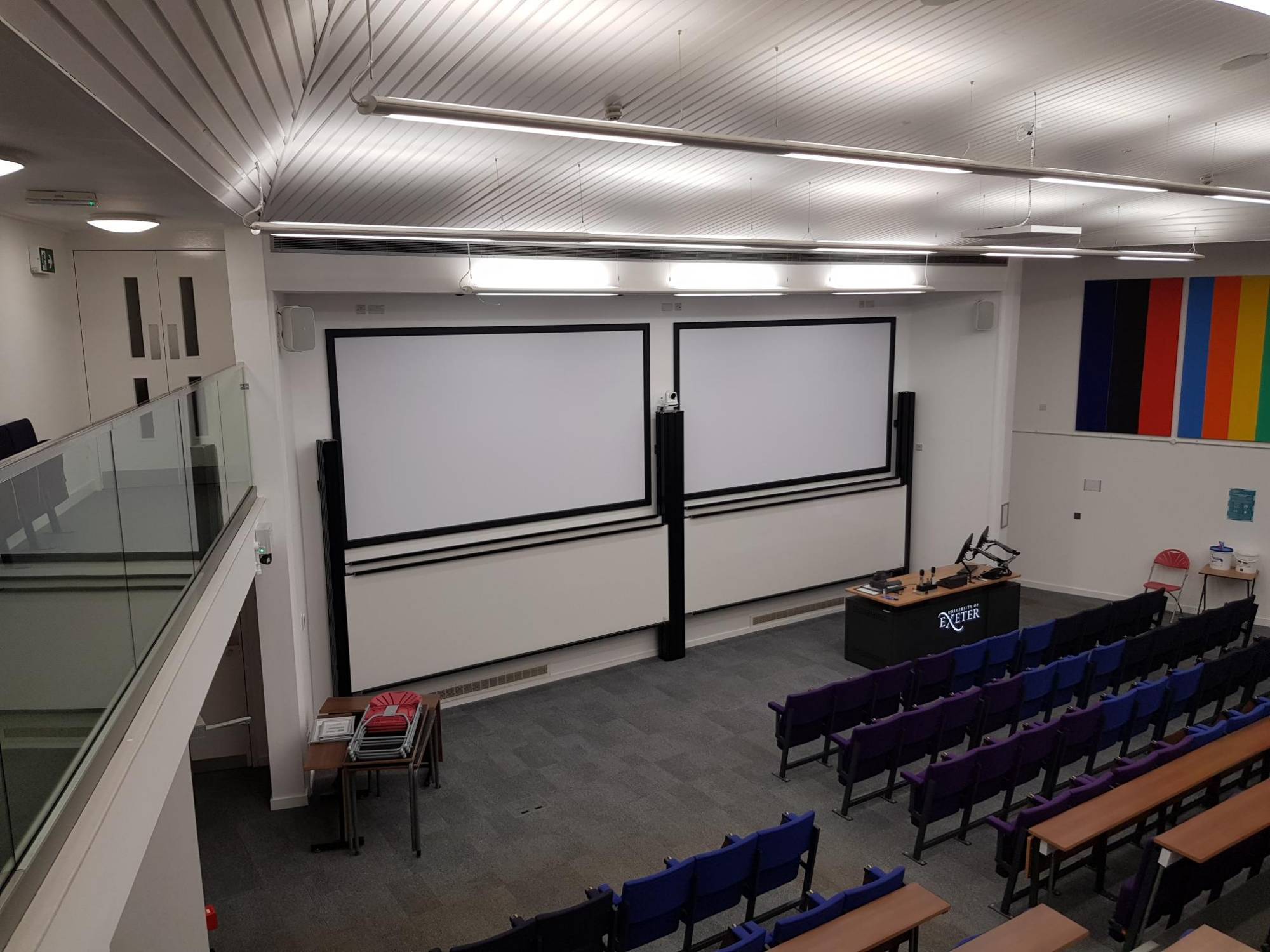

Column Board suitable for use in lecture theatres, classrooms, seminar rooms, or large auditoriums.

Description

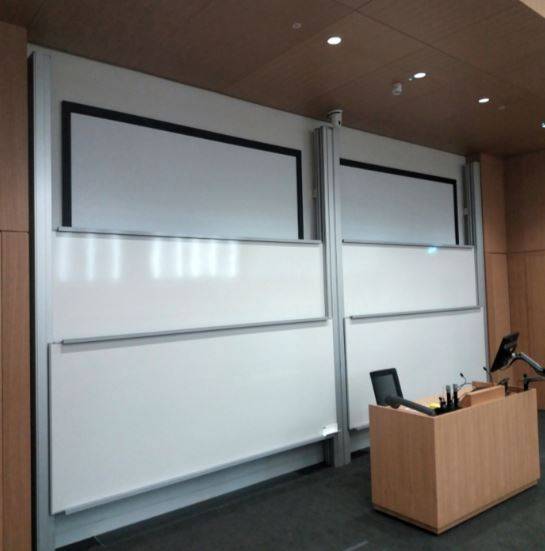

The column board system consists of two, four, or six extruded aluminum columns with either single, double or triple vitreous enamelled steel magnetic whiteboards that glide effortlessly and silently up and down.

Concealed precision counterweights balance the vertical movement of the boards to be positioned at the suitable writing or display height. The slimline yet sturdy aluminum frame offers a sleek finish, creating a professional and seamless finishing look.


The multi-surface product provides a flexible and movable learning resource that can also incorporate projection screens for vital learning and presenting opportunities. The writing boards can come in various surfaces, e3 Vitreous Enamel Steel Whiteboard, VES Chalkboard, or even glass writing surfaces.


As a custom manufacturer, boards and columns can come in any dimension or colour required to fit the environment.


We can produce over 4m in length


Features and benefits:

  • Robust full-length pen shelves to the bottom of the board.
  • An optional projection screen can be mounted between or to the side of the column.
  • Environment - e3 Vitreous Enamel Steel Writing VES Chalkboard, or even glass writing surfaces.
  • Surface with a 25-year guarantee.
  • DDA Compliance - access to the board for wheelchair users.

General information

Color

Finish

Anodized

Material

Aluminium

Guidance for specification option:

Columns.

Steel

Guidance for specification option:

e3 Vitreous enamel steel.

Glass

Guidance for specification option:

Glass writing surfaces.

Other

Guidance for specification option:

VES Chalkboard.

Shape

Rectangle

Length

1010 mm

1210 mm

Bespoke

Width

2000 mm

2500 mm

3000 mm

3500 mm

4000 mm

Show more

Height

2000 mm

6000 mm

Bespoke

Warranty description

25 year

Guidance for specification option:

Surface with a 25-year guarantee.

Uniclass

Pr_40_30_25_96 WhiteboardsPrimary
Pr_40_30_25_13 Chalkboards

CAWS

N10/193 Writing boards

N10/195 Noticeboards

Specification data - Whiteboards

Board type

Free-standing.

Dimensions (w x h)

2000 x 1010/1210 mm.

2500 x 1010/1210 mm.

3000 x 1010/1210 mm.

3500 x 1010/1210 mm.

4000 x 1010/1210 mm.

Other.

Guidance for specification option:

As a custom manufacturer, boards can come in any dimension required to fit the environment.


Consult manufacturer and insert requirements.

Frame

-

Material

Aluminium.

Size

2000—6000 mm.

Other.

Guidance for specification option:

As a custom manufacturer, columns can come in any dimension required to fit the environment.


Consult manufacturer and insert requirements.

Manufacturer guidance

Column height.

Colour

Silver.

Other.

Guidance for specification option:

As a custom manufacturer, columns can come in any colour required to fit the environment.


Consult manufacturer and insert requirements.

Surface

-

Colour

White 6100.

Beige 6102.

Gray 6101.

Green 6500.

Black 6501.

Gray 6502.

Other.

Guidance for specification option:

As a custom manufacturer, boards can come in any colour required to fit the environment.


Consult manufacturer and insert requirements.

Accessories

Not required.

Projection screen.

Guidance for specification option:

An optional projection screen can be mounted between or to the side of the column.

Surface material

e3 Vitreous Enamel Steel Whiteboard.

VES Chalkboard.

Glass writing.

Configuration

Single board column board system.

Twin board column board system.

Triple board column board system.

Sustainability data

Material

Aluminium

Guidance for specification option:

Columns.

Steel

Guidance for specification option:

e3 Vitreous enamel steel.

Glass

Guidance for specification option:

Glass writing surfaces.

Other

Guidance for specification option:

VES Chalkboard.

Literature

Column Board

Column Board
