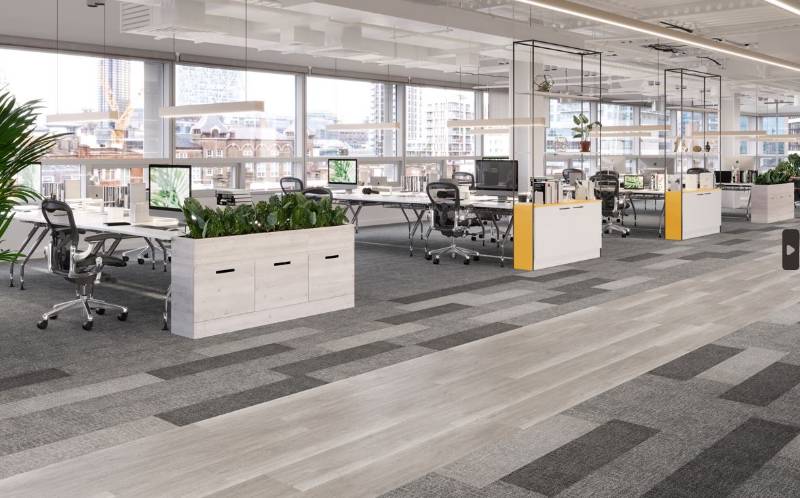

Colour Construct Carpet Tile Collection: Pixel Rectangle Comfortworx Tile C004W
Verified by manufacturer 5 months ago
53211
53211
Carpet tile, with a polymer modified bitumen backing.
Application
Recommended installation methods (product specific):
- Brick; Ashlar; Herringbone; Stagger.
Description
Carpet tile with a polymer modified bitumen backing, available in 24 colours.
Featured and benefits:
- Use classification 33 Commercial Heavy EN1307.
- Multi-level pattern loop, Eco Solution Q 100% solution dyed fibre.
- Cradle to Cradle™ Bronze Certified and EPD available.
- 15-year commercial limited warranty.
- We want it back: At the end of its useful life, we’ll reclaim and recycle or reuse our carpet tiles through our reTURN scheme
- Adhesive-Free Installation: IOBAC MagTabs™
General information
Color | Yellow Gold Grey Black Blue |
Material | Nylon |
Shape | Rectangle |
Length | 1000 mm |
Width | 250 mm |
Height | 10.8 mm |
Warranty description | 15 year |
Uniclass | |
CAWS | M50/15 Carpet tiling M50/130 Carpet tiling |
Specification data - Pile carpet tiles
Style | Tufted 1/12", 47.2 per 100 mm. |
Material | Eco Solution Q® Polyamide 6. |
Classification | |
Standard | To BS EN 1307. |
Third-party certification | Cradle to Cradle: Bronze. Indoor air quality: A+ and Environmental product declaration. |
Level of use class | To BS EN 1307, class 33. |
Luxury rating class | LC1. |
Recycled content | 25% (eco solution q® polyamide 6). |
Size | 1000 x 250 mm. |
Colour and pattern | Yellow. |
Dye method | 100% solution dyed. |
Primary backing | Pet non-woven. |
Secondary backing | Comfortworx® Tile, Matrix Pad Layer Contains 90% Recycled Content. |
Total thickness | 10.8 mm. |
Mass | 5652 g/m², (nominal total pile mass). |
Pile density | To ISO 8543, 0.143 g/m³. |
Dimensional stability | To EN 986, ≤0.2%. |
Sound insulation | To ISO 10140, 35 dB. |
Sound absorption | To ISO 354/11654, 30 αw (Class D). |
Thermal resistance | 0.154 m² K/W. |
Colour fastness | >6. |
FlammabilityRating | To EN 13501-1, Bfl-S1 (adhered testing). |
Castor chair rating | To EN 985, ≥2.4. |
Light reflectance | 26.5. |
Sustainability data
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | Manufacturer guidancere[TURN] TakeBack scheme. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 25 % Guidance for specification option: Eco Solution Q® Polyamide 6. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 1 |
 Revit | - | 1 |
