Colortone Neeva - Mineral Tile Suspended Ceiling System
Verified by manufacturer 9 months ago

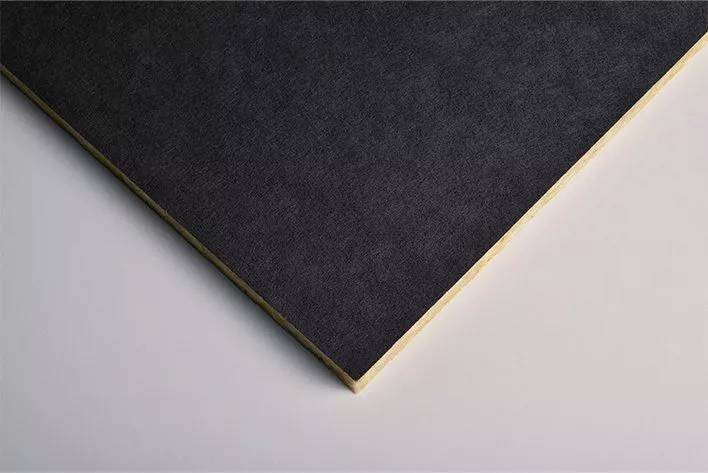

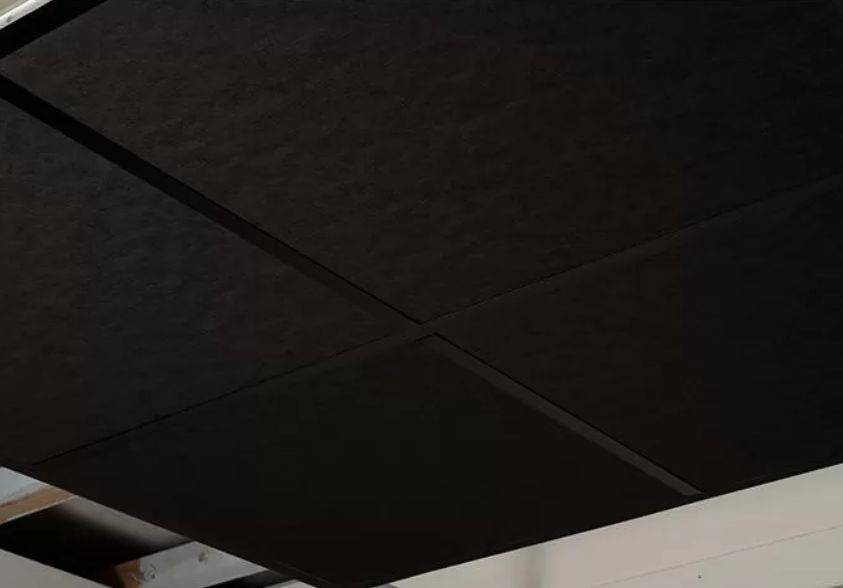

Suspended ceiling system with dark (black) lay-in mineral ceiling tiles with excellent acoustical absorption.
Application
Suspended ceilings; particularly suitable for cinemas, theatres and cafeterias.
Description
Suspended ceiling system with dark (black) lay-in mineral ceiling tiles with excellent acoustical absorption.
Combined with the Gridline 24 black grid, the system is suitable for cinema applications or other dark spaces.
Features and benefits:
- Excellent acoustical absorption: 1.00 αw.
- Recyclable.
- Class A sound absorption.
- Manufactured using 20% recycled material.
- 15-year product guarantee.
- 30-year system guarantee.
General information
Color | Black Guidance for specification option: Tiles. |
Material | Mineral fibre |
Shape | Rectangle Square |
Length | Bespoke |
Width | Bespoke |
Height | 15 mm |
Warranty description | 15 year Guidance for specification option: Product guarantee. 30 year Guidance for specification option: System guarantee. |
Uniclass | |
CAWS | K40/10 Unit/ modular suspended ceilings K40/105 Suspended ceiling system K40/115 Unit/ modular suspended ceiling system |
Product range |
Specification data - Modular suspended ceiling systems
System performance | Guidance for specification option: Insert requirements. |
Ceiling support | Gridline 24 joggled/butt cut, Black RAL 9005.Guidance for specification option: Gridline 24 Cross Tees are designed to work with Gridline 24, a 24 mm exposed grid system for suspended ceilings. These cross tees come with standard SureLock clip for secure connections to main runners, providing better alignment for easier ceiling installation and easy disconnection when access to the ceiling soffit is required. Baked polyester paint finish. |
Support fasteners | Guidance for specification option: Insert requirements to suit substrate. |
Ceiling units | 600 x 600 x 15 mm board edge mineral tiles in Black (2695DBK).600 x 1200 x 15 mm board edge mineral tiles in Black (2696MBK).Manufacturer guidance
|
Barriers in ceiling void | |
Fire barriers | Guidance for specification option: Consult manufacturer for options and insert requirements or omit. |
Acoustic barriers | Guidance for specification option: Consult manufacturer for options and insert requirements or omit. |
Plenum barriers | Guidance for specification option: Consult manufacturer for options and insert requirements or omit. |
System accessories | Guidance for specification option: Consult manufacturer for options and insert requirements or omit. |
Weight | Infill units: 1.2 kg/m². |
Reaction to fire | To EN 13501-1: Euroclass, A1. |
RelativeHumidity | Infill units: 95%. |
Sound absorption | Infill units: αw = 1.00; Class A. |
Noise reduction coefficient | Infill units: 0.95. |
Weighted sound reduction index, Rw | Infill units: 7 dB. |
Formaldehyde emissions | Infill units: To EN 13964, formaldehyde emission level E1 = Best test result possible. |
Sustainability data
Material | Mineral fibre |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 20 % Guidance for specification option: Infill units only. |
Literature
Gridline 24 – Product Data Sheet
ColorTone Neeva – Product Data Sheet
