Colortone Dune eVo - Mineral Tile Suspended Ceiling System
Verified by manufacturer 9 months ago

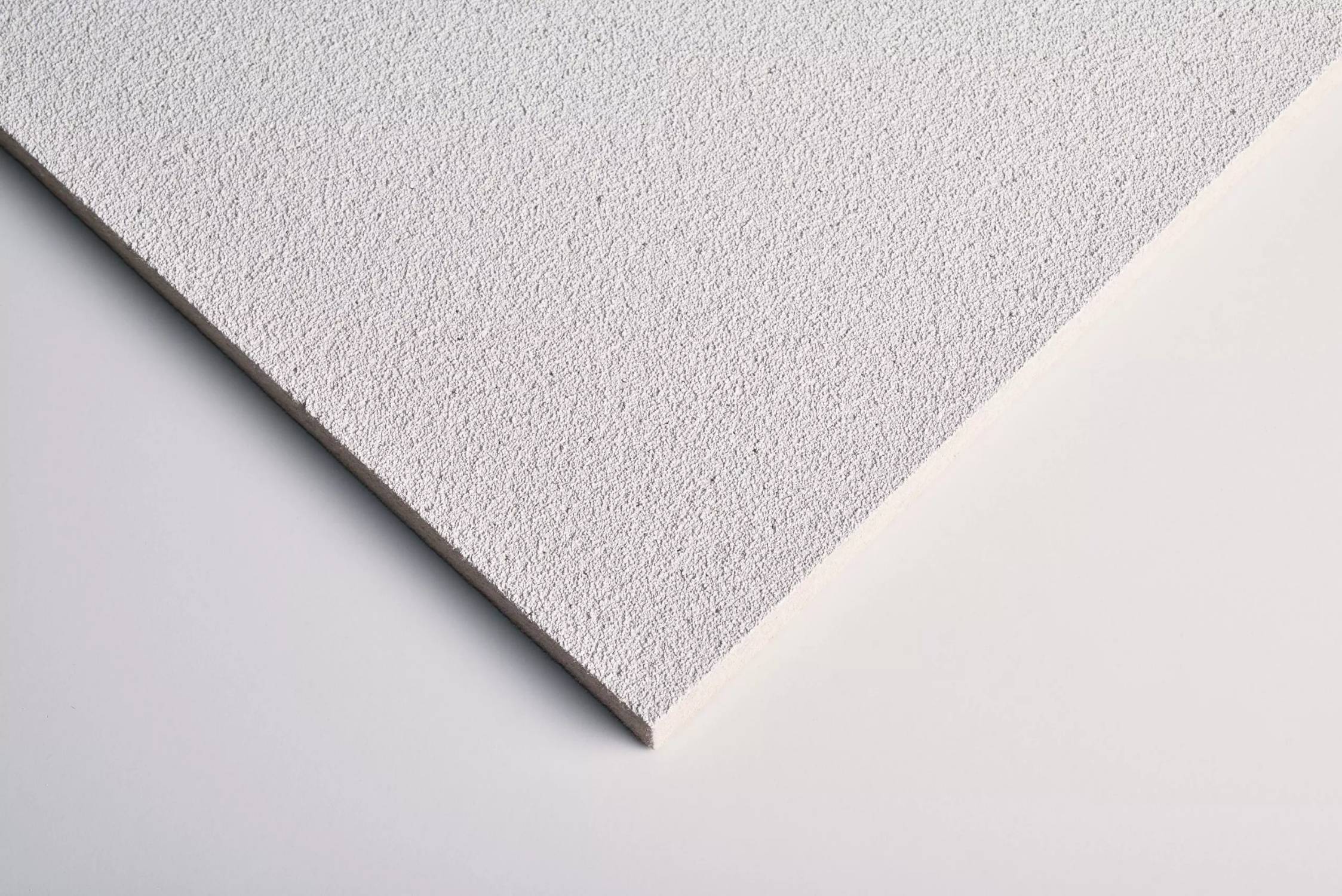

Board edge infills
Board edge infills

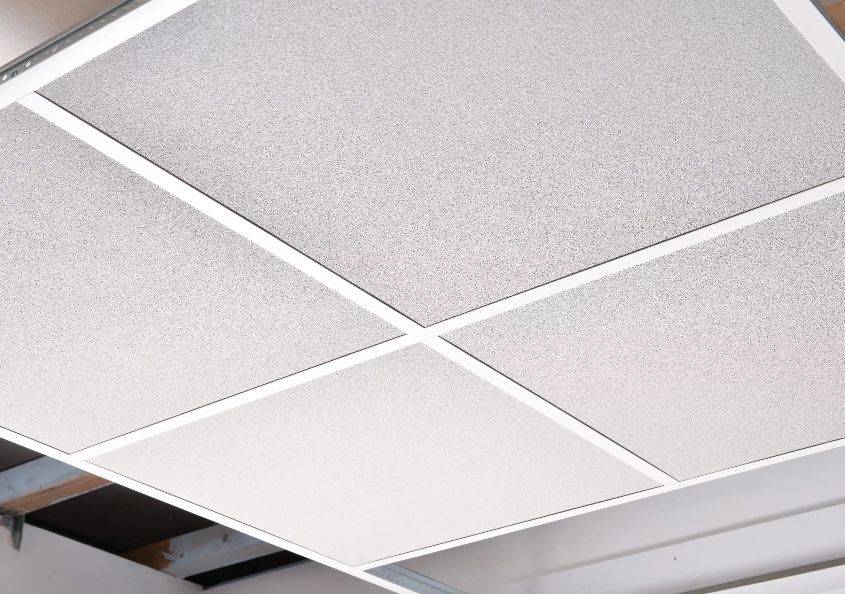

Suspended ceiling system with silver coloured ceiling tiles, part of the Colortone range.
Application
Suspended ceilings. Particularly suited to cafeterias, cinemas and theatres.
Description
Suspended ceiling system with silver coloured ceiling tiles, part of the Colortone range.
Features and benefits:
Tiles:
- Good sound absorption: 0.60 (H) αw.
- Available in three edge details.
- All edge details available in 600 x 600 mm tiles; board edge tiles also available as 1200 x 600 mm.
- Recyclable.
- Low volatile organic compound (VOC) emissions, A rating.
- Tiles manufactured using 44% recycled material.
- 15-year product guarantee.
- 30-year system guarantee.
- Suspension system varies based on edge detail.
General information
Color | Silver |
Material | Mineral fibre Steel |
Shape | Square Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | 15 mm |
Warranty description | 15 year Guidance for specification option: Product guarantee. 30 year Guidance for specification option: System guarantee. |
Uniclass | |
CAWS | K40/10 Unit/ modular suspended ceilings K40/105 Suspended ceiling system K40/115 Unit/ modular suspended ceiling system |
Product range |
Specification data - Modular suspended ceiling systems
System performance | Guidance for specification option: Insert requirements. |
Ceiling support | Gridline 24 joggled/butt cut, Global White.Guidance for specification option: Gridline 24 Cross Tees are designed to work with Gridline 24, a 24 mm exposed grid system for suspended ceilings. These cross tees come with standard SureLock clip for secure connections to main runners, providing better alignment for easier ceiling installation and easy disconnection when access to the ceiling soffit is required. Baked polyester paint finish. Gridline 24 joggled/butt cut, Black.Guidance for specification option: Gridline 24 Cross Tees are designed to work with Gridline 24, a 24 mm exposed grid system for suspended ceilings. These cross tees come with standard SureLock clip for secure connections to main runners, providing better alignment for easier ceiling installation and easy disconnection when access to the ceiling soffit is required. Baked polyester paint finish. |
Support fasteners | Guidance for specification option: Insert requirements to suit substrate. |
Ceiling units | 600 x 600 x 15 mm board edge mineral tiles in Platinum (5460MPN).1200 x 600 x 15 mm board edge mineral tiles in Platinum (5461MPN).Manufacturer guidance
|
Barriers in ceiling void | |
Fire barriers | Guidance for specification option: Consult manufacturer for options and insert requirements, or omit. |
Acoustic barriers | Guidance for specification option: Consult manufacturer for options and insert requirements, or omit. |
Plenum barriers | Guidance for specification option: Consult manufacturer for options and insert requirements, or omit. |
System accessories | Guidance for specification option: Consult manufacturer for options and insert requirements, or omit. |
Weight | Infill units: 3.6 kg/m². |
Colour (Light reflectance value (LRV) | Infill units: 72%. |
ThermalConductivity | Infill units: 0.060 W/m·K. |
Reaction to fire | To EN 13501-1, infill units: Euroclass A2-s1, d0; support grid: Euroclass A1. |
Sound absorption | Infill units: αw = 0.60(H); Class C. Manufacturer guidanceWeighted sound absorption coefficient (alpha w). Rating for random incidence sound absorption determined in accordance with EN ISO 11654. Measured values obtained in accordance with EN ISO 20354 are converted into octave bands, plotted on a graph and compared to a standard reference curve until a 'best fit' is obtained. The derived αw will vary between 0.00 and 1.00. |
RelativeHumidity | Infill units: 95%. |
Sound attenuation | Infill units: Dnfw = 34 dB. Manufacturer guidanceDnfw rating derived from laboratory measurement of room-to-room airborne sound insulation of suspended ceiling with plenum above. Rating determined in accordance with EN ISO 717-1 from measurements made in accordance with EN IS0 10848-2 over the third-octave band frequency range 100–3150 Hz. |
Noise reduction coefficient | Infill units: 0.50. |
Formaldehyde emissions | Infill units: To EN 13964, formaldehyde emission level E1 = Best test result possible. |
VOC emissions | Infill units: The VOC emission performance in accordance with the French labelling requirements: A. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | United Kingdom |
Material | Mineral fibre Steel |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 44 % Guidance for specification option: Infill units only. |
