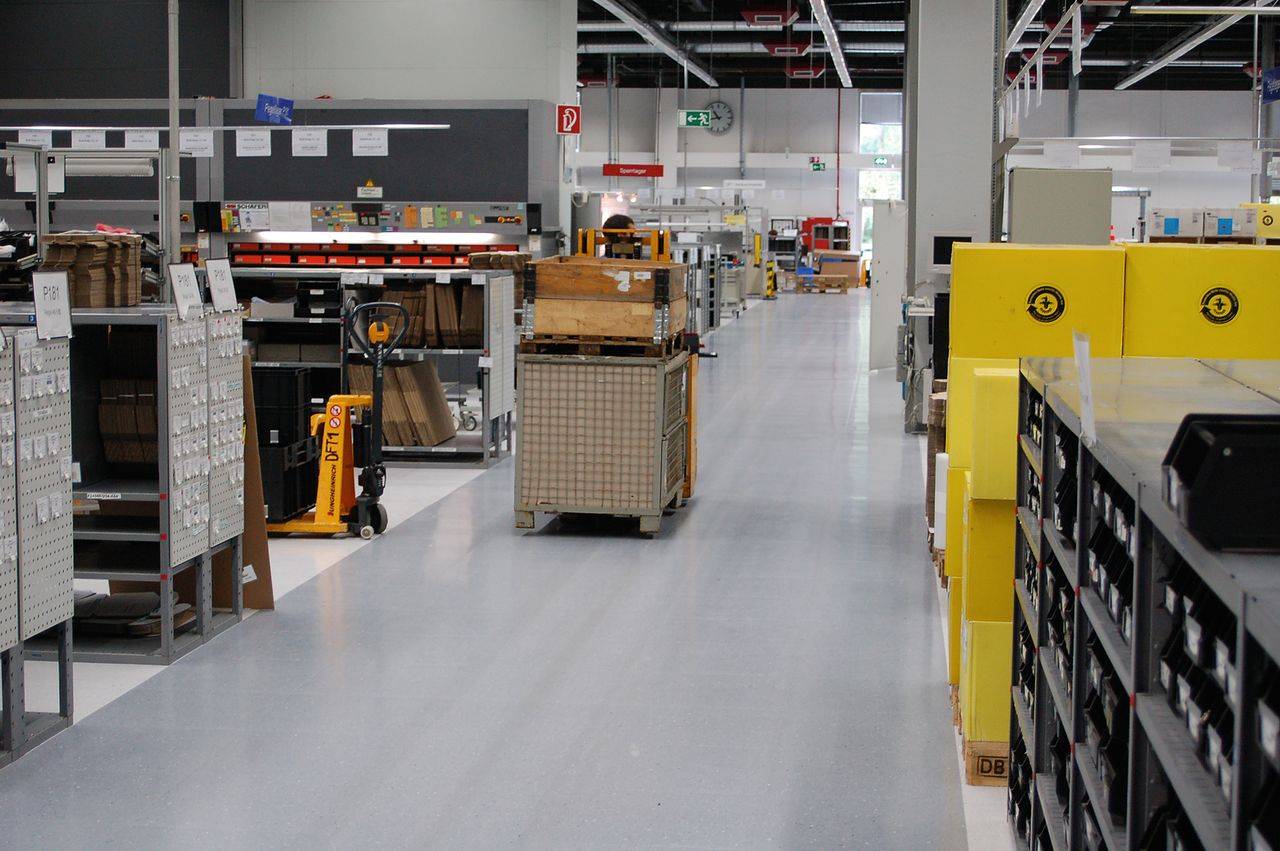

Colorex Plus EC

Verified by manufacturer 12 days ago

Forbo Flooring Systems Third party certifications:
  • EPD

    EPD

    Certificate type

  • Certificate of Conformity

    Certificate type

High-performance, permanently conductive, adhesive free vinyl tiles.

Jump to:
+44 (0)800 093 5258 Website

Application

  • Suitable for high traffic areas requiring daily intensive cleaning, such as shops, stores and warehouses.
  • Suitable for use in industrial areas where forklift trucks are in operation.

Description

High-performance, permanently conductive, adhesive free, homogeneous pressed tiles.


Features and benefits:

  • Permanently conductive.
  • The invisible dovetail backing construction on the Colorex Plus items ensures a strong and stable connection, which smoothly seals the floor surface.
  • The honeycomb backing system allows airflow, keeping the subfloor dry and preventing a build-up of mould and bacteria.
  • The low plasticizer content in Colorex ensures low emissions and outgassing.
  • Colorex is available in tile format, a prerequisite for raised access floors found in many commercial environments such as data centres and server rooms.
  • The dense construction of Colorex provides a pore-free surface, ensuring the highest hygiene properties.
  • The dense construction of Colorex provides excellent resistance to heavy loads.
  • Designed for full and unconditional ESD/EMI control as well as for contamination sensitive clean room applications.
  • An adhesive free tile format for quick installation particularly where damp floors or poor subfloors are an issue.


Optional fabricated underlay:

Forbo Quickfit subfloor system.


Adhesive (static conductive system):

- Eurocol 641 Eurostar Special EL:

A superior conductive acrylic dispersion very low VOC-emitting (EC1) with a high initial grab.

- Eurocol 801 Copper-Strip:

A static conductive copper earth strip to be used in conjunction with 041 Europrimer EL.

General information

Color

Beige

Blue

Grey

White

Manufacturer guidance

Available in six colours.

Finish

Other

Material

PVC

Shape

Square

Guidance for specification option:

Dovetail tile.

Length

607 mm

Width

607 mm

Height

10.3 mm

Warranty description

Ten year

Uniclass

Pr_35_57_71_68 Polyvinyl chloride (PVC) tilesPrimary

CAWS

M50/10 Resilient floor tiling

M50/110 Resilient floor tiling

Specification data - Polyvinyl chloride (PVC) tiles

Standard

To ASTM 1700 and BS EN ISO 10581 for Homogeneous PVC tiles.

Use class

Class 34/ 43.

Slip potential

-

Slip resistance value (SRV) (minimum)/ Pendulum test value (PTV) (minimum)

DIN 51130: R9. BS EN 13893: ≥0.30. Dry >50.

Recycled content

0%.

Size

607 x 607 mm.

Thickness

10.3 mm.

Colour and pattern

Plus EC 621001 Everest.

Plus EC 621004 Montblanc.

Plus EC 621005 Adula.

Plus EC 621007 Quartz.

Plus EC 621022 Niagara.

Plus EC621013 Sahara.

Weight

12 kg/m².

Reaction to fire (to BS EN 13501)

Bfl-s1, L, CS.

Thermal conductivity (to BS EN 12524)

0.25 W/m·K.

Impact sound reduction

12 dB.

Lightfastness (to ISO 105-B02)

≥6.

Dimensional stability (to BS EN ISO 23999)

≤0.25%.

Chemical resistance (to EN ISO 2698)

Excellent.

Clean room particle emission

ISO 2.

Body voltage generation, in combination with ESD control footwear (to IEC 61340-4-5)

Standard: <100 V, Typical value: ~ 20 V.

Electrostatic (to IEC 61340-5-1)

Compliant.

Electrical resistance (to IEC 61340-4-1 and ESD STM7.1)

2.5 x 10^4 ≤R ≤10^6.

Electrical resistance in combination with ESD control footwear IEC 61340-4-5, ESD STM97.1

R <3.5 x 10^7 Ω.

Sustainability data

Contains Red List materials

Yes

Country of material origin

Switzerland

Country of product manufacture

Switzerland

Material

PVC

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

15.6 kg CO₂ eq/m²

Recyclability

Yes

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

71 %

Third party certifications

Third party certifications

EPD

EPD

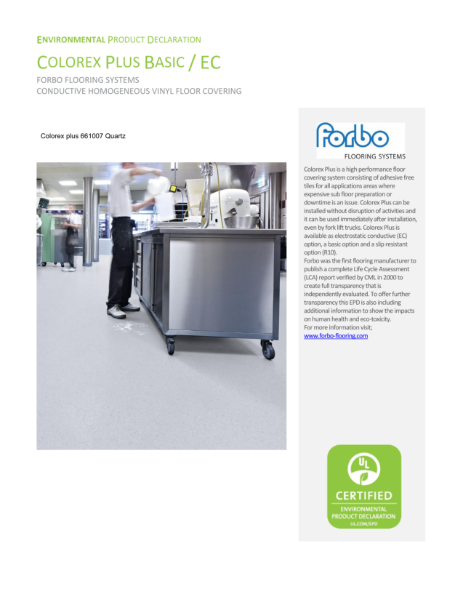

Colorex Plus Environmental Product Declaration

Certificate of Conformity

Certificate of Conformity

SA8000 Management System Certification Certificate

Literature

Forbo Product Portfolio 2022

Forbo Product Portfolio 2022

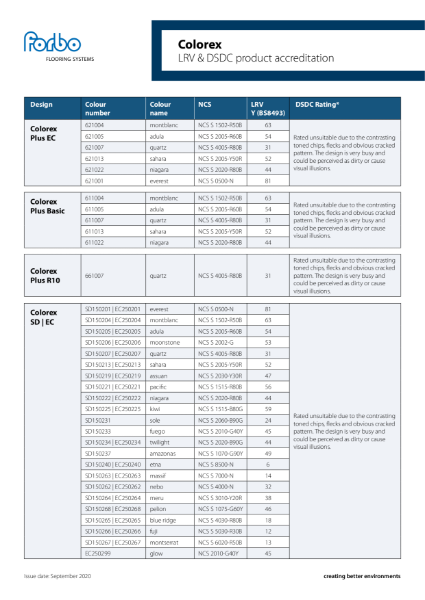

Forbo Colorex LRV and DSDC Accreditation Overview

Forbo Colorex LRV and DSDC Accreditation Overview

Forbo Colorex Brochure

Forbo Colorex Brochure

Similar products from Forbo Flooring Systems

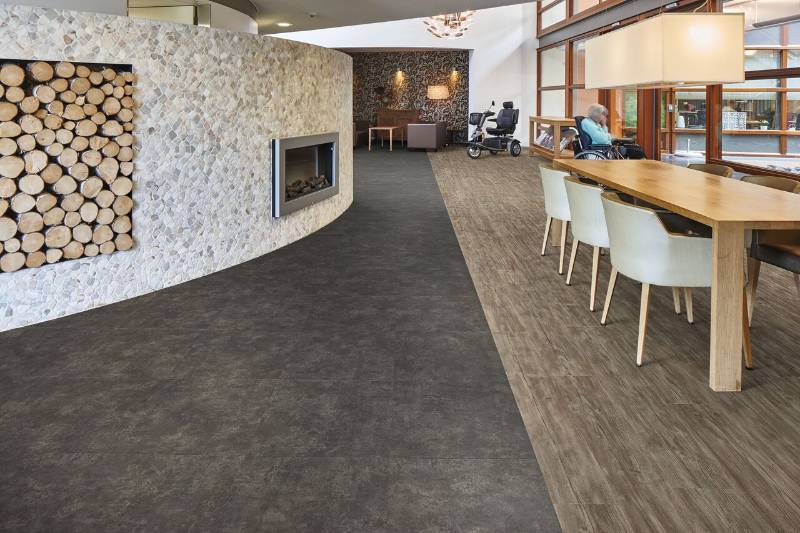

Allura Click Pro - Luxury vinyl tile

Allura Click Pro - Luxury vinyl tile

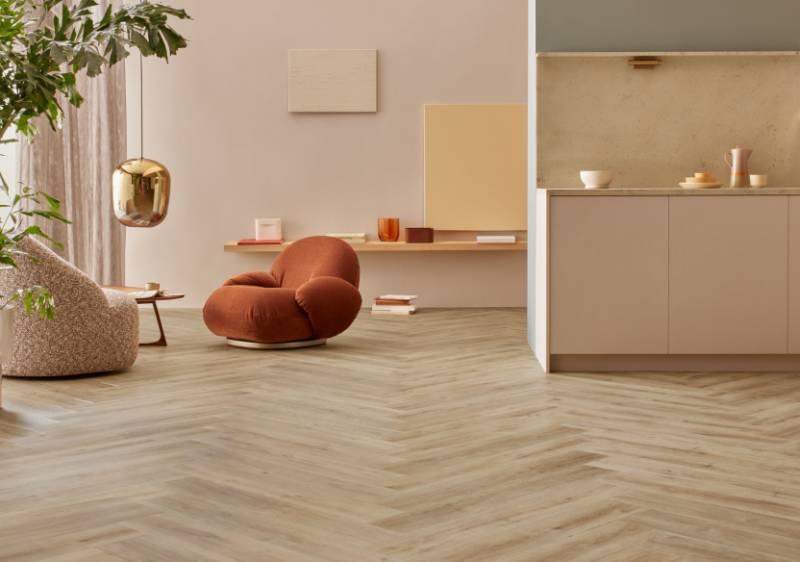

Allura Decibel - Luxury Vinyl Tile

Allura Decibel - Luxury Vinyl Tile

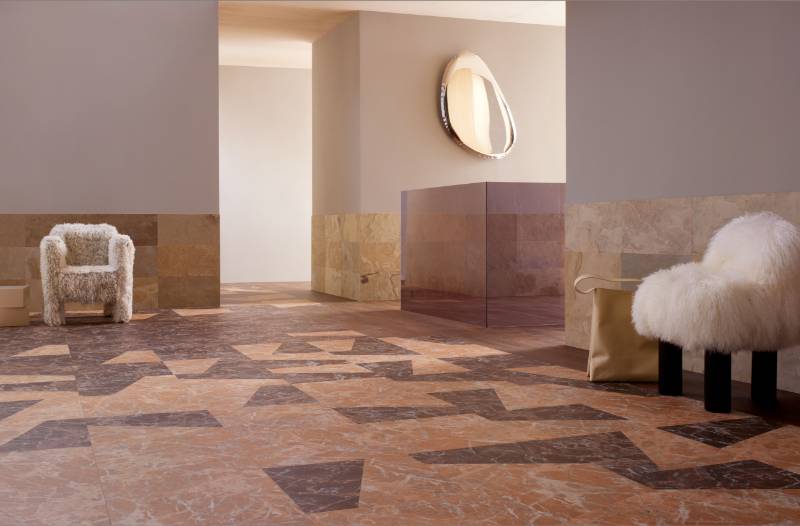

Allura Dryback Materials - Luxury Vinyl Tile (LVT)

Allura Dryback Materials - Luxury Vinyl Tile (LVT)

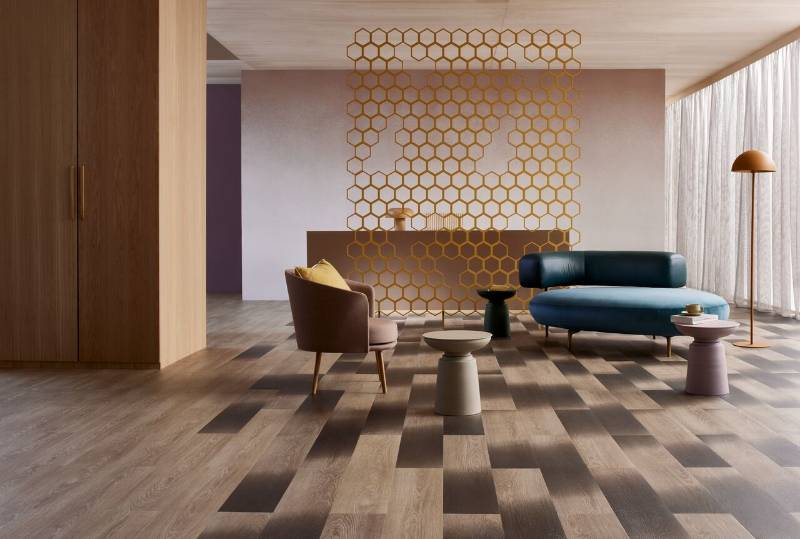

Allura Dryback Wood - Luxury Vinyl Tile (LVT)

Allura Dryback Wood - Luxury Vinyl Tile (LVT)

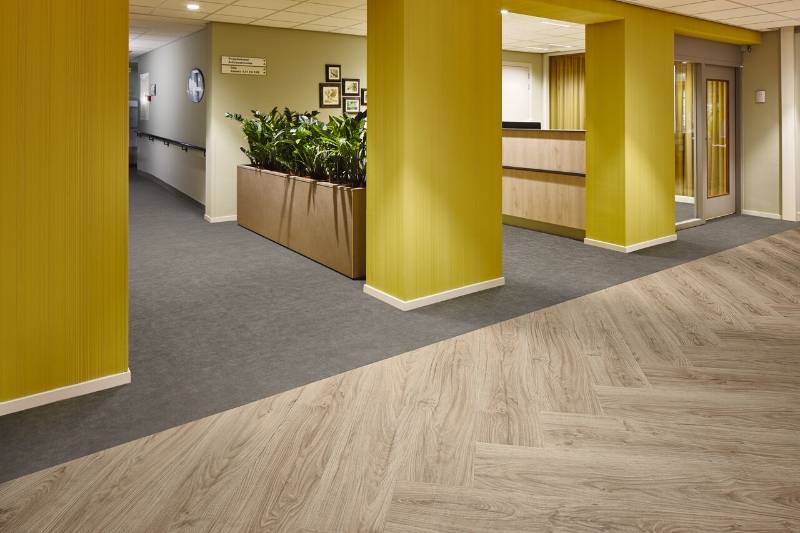

Allura Flex - Luxury Vinyl Tile (LVT)

Allura Flex - Luxury Vinyl Tile (LVT)

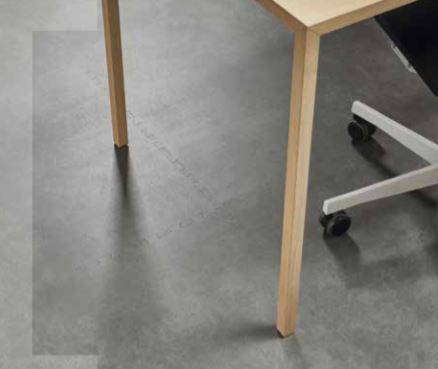

Allura Puzzle  - Luxury vinyl tile

Allura Puzzle - Luxury vinyl tile

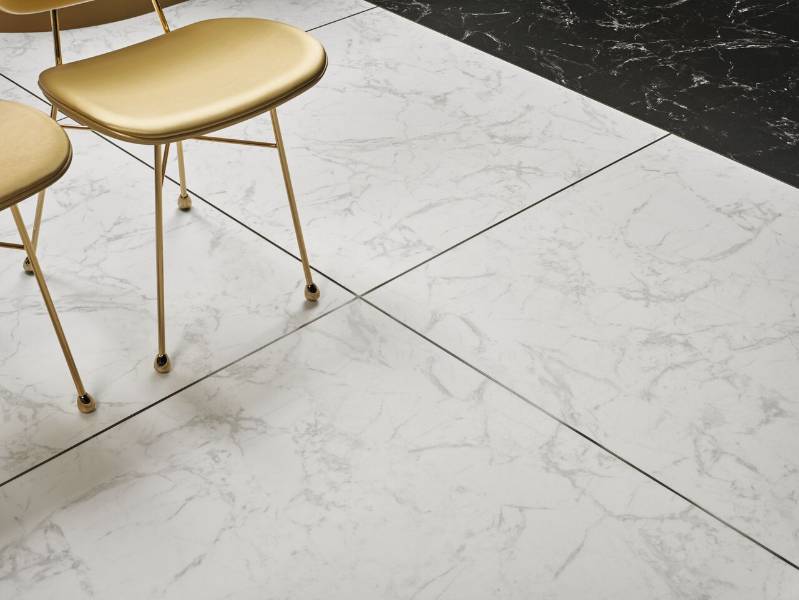

Allura Strips - Luxury vinyl tile

Allura Strips - Luxury vinyl tile

allura® click Flexcore

allura® click Flexcore

Colorex Plus R10

Colorex Plus R10

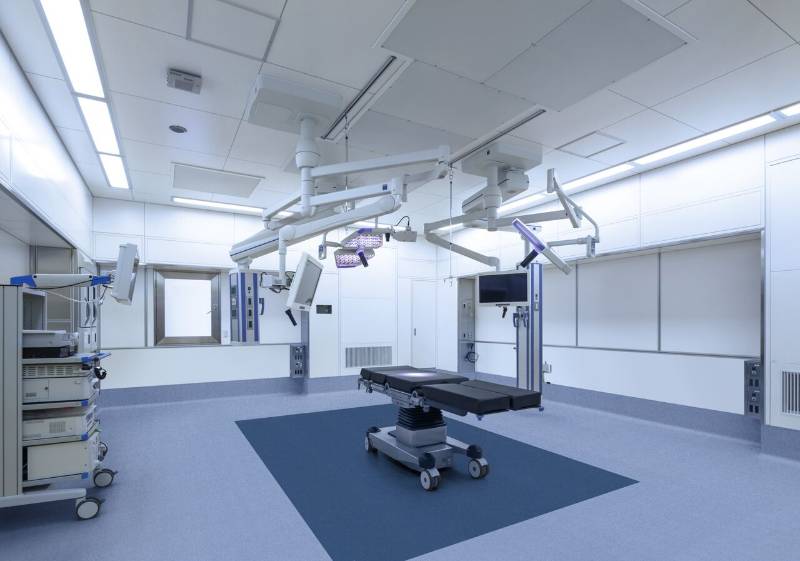

Colorex® EC - Conductive tile floor covering
