Colonnade Aluminium Swaged Circular Downpipe
Verified by manufacturer 2 months ago
A range of downpipes manufactured from aluminium.
Application
Suitable for any property, from modern to traditional and equally suited for refurbishment of heritage or listed properties.
Description
Colonnade aluminium collared swaged circular rainwater pipes are available in various dimensions and are supplied with a complete range of fittings such as bends, branches, offsets and various brackets.
Features and benefits:
- Made from aluminium extrusion 6060 T4 to BS 1474:1972.
- 100% recyclable.
- Lightweight and low maintenance.
- Special fittings can be provided.
- Supplied mill finished (uncoated) or polyester powder-coated in RAL or BS standard colours.
General information
Color | Black Other |
Finish | Mill Powder-coated |
Material | Aluminium |
Shape | Circle |
Length | 3000 mm 2500 mm 2000 mm 1500 mm 1000 mm |
Width | 63 mm 76 mm 101 mm 150 mm |
Uniclass | |
CAWS | R10/370 Aluminium pipework R10/30 Aluminium pipework |
Specification data - Aluminium rainwater pipes and fittings
Form | Extruded. |
Section | Round. |
Size (nominal) | 63 mm.76 mm.101 mm.150 mm. |
Finish and colour | |
Finish | Mill finish.Powder coating. |
Colour | Manufacturer guidancePolyester powder-coating is available in RAL or BS standard colours. Consult manufacturer and insert requirements. |
Integral accessories | 92.5° Bend.112° Bend.135° Bend.92.5° Branch.112° Branch.135° Branch.Water Butt Rainwater Diverter.Shoe.Small 1 Part Swan Neck.Large 1 Part Swan Neck.Adjustable 2 Part Swan Neck.Access Pipe Length.Loose Connector.Drain Adaptor.Flush-fit Pipe Clip.30mm Stand-off Pipe Clip.Adjustable Stand-off Pipe Clip. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Material | Aluminium |
Manufacturing plant location | |
Recyclability | 100% recyclable |
Expected Life | 30 year |
Literature

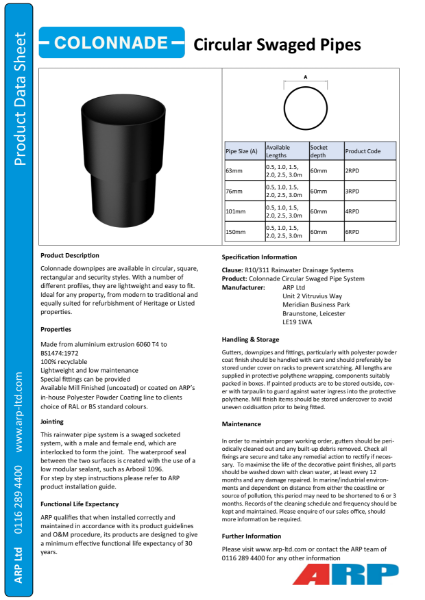

Colonnade Circular Swaged Pipe Data Sheet
Case studies
Farmhouse, Somerset
Quality new-build with bespoke aluminium rainwater goods
