Collapsible Security Gates

Jump to:
+44 (0)1204 871001 Website

Application

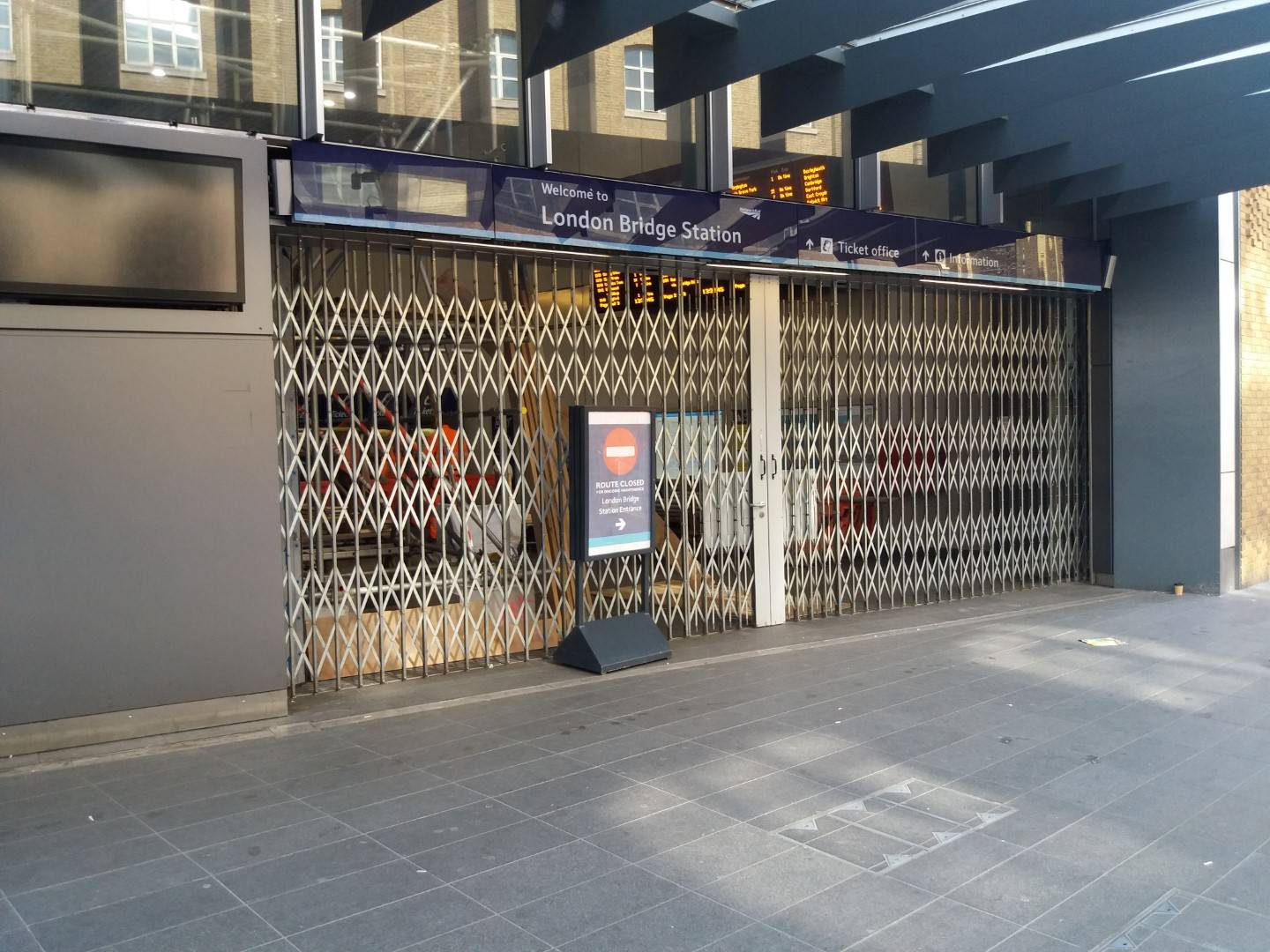

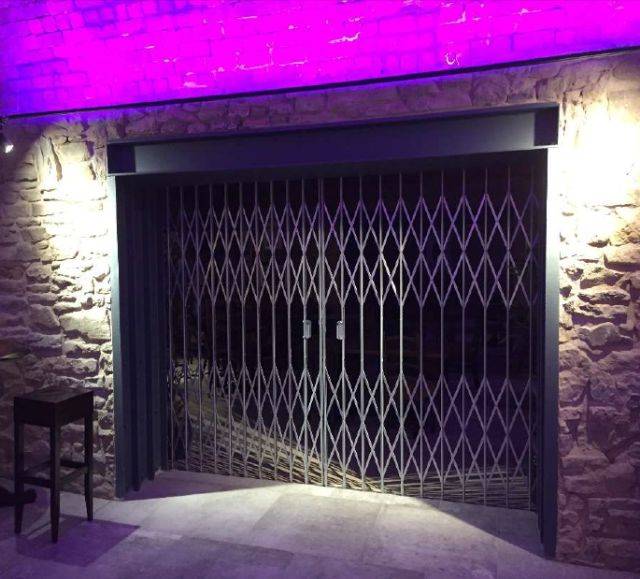

Collapsible gates are extensively incorporated on railway infrastructure for both London Underground Limited (LUL) and Network Rail at numerous station applications. The gate design is ideal for car parks entrances, shop frontages, traditional markets, fast acting physical security at mall restaurants and historic listed buildings where aesthetic appearance in keeping with that of the building is of prime importance.


Performance Characteristics:

Provides a high level of security.

Easily installed and operated.



Key Attributes:

A gate manufactured from the best quality materials and constructed using sound engineering principals that together create a superior traditional product design: -

· Integral strength and durability.

· Compact headroom requirements.

· Compact sideroom requirements.

· Optimum ventilation.

· High visibility through the opening combined with a real intruder deterrent.





Description

Summary

The Collapsible Gate was the starting point for Bolton Gate Company over 100 years ago. Our proud tradition of quality British manufacturing began with this product as part of the 1919 King’s National Roll Scheme specifically providing employment opportunities for disabled servicemen returning from the Great War.



Although the gate design has been developed over many years, many of the original mechanical principals have stood the test of time and still remain relevant today contributing to the modern day version of the robust heavy duty steel security gate system.



A high level of security is provided by the intrinsic strength of the gate design and its appearance is an effective visual deterrent against intruders. Being custom made it also offers real flexibility with fixing arrangements; face fixed internally or externally to a support structure or within an opening fixed between the jambs and under a lintel. The small footprint makes the gate ideal for a restricted space envelope, or applications where good visibility, passage of natural airflow and daylight illumination are required.



Standard Construction

The gates are manually operated and built from double channel steel vertical pickets connected by lattice bars. All gates are fitted with a swivel lock beak to accept padlocks by others.



Gate Arrangements

Collapsible gates can be manufactured as a single or in pair to fit between the jambs and under the lintel or face fixed internally or externally.



Finish

Galvanised as standard with mild steel parts zinc plated.



Weight

The approximate weight for all gate types is 32kgs / m²



GATE TYPES

Top Hung Gates

A top hung gate should be used wherever possible due to its superior operating capabilities.



Single gates up to 2500mm high and / or 3000mm wide are suspended from a flat bar top track. This is fixed at each end and has a rounded top edge to facilitate smooth operation. Larger gates have a heavy duty box type top track. Top hung gates incorporate channel bottom tracks set into the floor.



Bottom Rolling Gates

Operate with ball bearing pulleys that run on a flat bar bottom track that supports the weight of the gate. The top track can be provided as either an internal flat bar or ’T’ section that is fitted to a lintel. For smaller openings, flat bar tracks can be arranged to fold away or be portable. Certain arrangements also allow the bunched gate to hinge aside to allow greater access to the opening.



Spearhead Gates

Pointed spearheads can be attached to the top of the pickets to offer climb over protection where lintels are not available for fixing at the head.



Spearhead gates run on a flat bar bottom track which is folding or portable with the weight of the gate supported by pulleys at the base of the pickets.



Arrangements in pair are provided with a centre post, which if made removable will be provided with a raking stay and ground sockets with lids.



Maximum sizes

Top Hung Single: 8m wide x 6m high.

Pair: 16m wide x 6m high.



Bottom Rolling Single: 1.5m wide x 3m high.

Pair: 3m wide x 3m high.

Hinged: 1.5m wide or 3m high.



Spearhead Single: 1.5m wide x 3m high.

Pair: 3m wide x 3m high.



Options

Polyester powder coat finish in a range of standard colours.

Plated leading edge for increased security.

Mid bar fitted between pickets for increased security.

Parallel bunch for limited bunch problems.

Floating gates for spanning a wider opening.

Surelock McGill locking options.

Lock shrouds and guard plates to prevent reach through.

19mm pickets (in lieu of 16mm).



General information

Color

-

Manufacturer guidance

A range of RAL colours available.

Finish

Powder-coated

Guidance for specification option:

As standard with option for a polyester powder coat finish to a range of RAL colours.

Material

Steel

Guidance for specification option:

Double channel steel vertical pickets.

Shape

Square

Rectangle

Length

Bespoke

Width

Bespoke

Guidance for specification option:

Bespoke Manufacture.

Top Hung Gates

  • Single: 8000 mm wide x 6000 mm high.
  • Pair: 16 000 mm wide x 6000 mm high.


Bottom Rolling Gates

  • Single: 1500 mm wide x 3000 mm high.
  • Pair: 3000m m wide x 3000 mm high.


Spearhead Gates

  • Single: 1500 mm wide x 2000 mm high.
  • Pair: 3000 mm wide x 2000 mm high.


Consult manufacturer for details.

Height

Bespoke

Guidance for specification option:

Bespoke Manufacture.

Top Hung Gates

  • Single: 8000 mm wide x 6000 mm high.
  • Pair: 16 000 mm wide x 6000 mm high.


Bottom Rolling Gates

  • Single: 1500 mm wide x 3000 mm high.
  • Pair: 3000m m wide x 3000 mm high.


Spearhead Gates

  • Single: 1500 mm wide x 2000 mm high.
  • Pair: 3000 mm wide x 2000 mm high.


Consult manufacturer for details.

Warranty description

One year

Uniclass

Pr_30_59_24_14 Collapsible gate and grille setsPrimary

CAWS

L20/60 Doors

L20/620 Collapsible gates/ grilles

Product range

Security

Specification data - Collapsible gate and grille sets

Arrangement

Bottom-rolling gates.

Spearhead gates.

Top hung gates.

Frame location

Face-fixed externally.

Face-fixed internally.

Fitted between jambs.

Fitted beneath lintel.

Gate leaf

-

Type

Single, left.

Guidance for specification option:

Bunching to one side.

Single, right.

Guidance for specification option:

Bunching to one side.

Pair.

Guidance for specification option:

Bi-parting.

Finish

Galvanized.

Guidance for specification option:

Standard.

Polyester powder-coated.

Guidance for specification option:

Standard, consult manufacturer for options and insert requirements.

Hardware

Five-lever deadlock.

Swivel beak lock .

Guidance for specification option:

Standard, padlock not supplied.

Accessories

None.

Plated leading edge.

Guidance for specification option:

For increased strength and security.

Mid bar gates.

Guidance for specification option:

For increased security.

Parallel bunch.

Guidance for specification option:

For limited bunch problems.

Floating gates.

Guidance for specification option:

Top hung arrangements only.

Weight

32 kg/m².

Guidance for specification option:

Approximately.

Third-party certification

Consult manufacturer for details.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Material

Steel

Guidance for specification option:

Double channel steel vertical pickets.

Manufacturing plant location

Recyclability

95

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

0 %

Expected Life

25 year
