Cole Suspended Feature Lighting
Application

Suitable for a wide range of environments, from offices to lobby areas or retail lighting.

Description

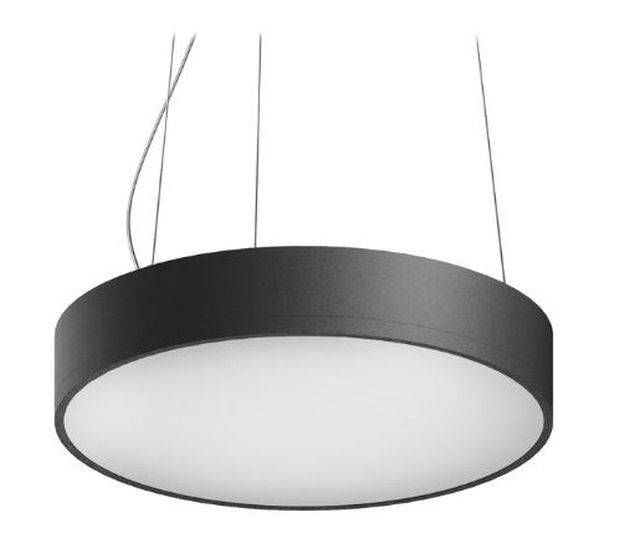

Circular suspended feature LED lighting with a disc profile.

Features and benefits:

  • Deep body with a floating design.
  • Designed to enhance modern architectural and commercial spaces.
  • The opal or microprismatic lens delivers a soft, natural and uniform light.
  • A range of size and colour variations are possible.
  • Can be specified with both CASAMBI and Philips EasyAir wireless sensors to increase user control.
  • Can be specified with LED Tunable White technology for the selection of a range of colour temperatures dependent on project requirements, to help aid health and well-being.
  • Frame uses a secure twist and lock system to detach from baseplate.
  • Internal ballasts or drivers are supplied.

Also available as surface mounted (specified separately).

Application:

Suitable for a wide range of environments, from offices to lobby areas or retail lighting.

General information

Size

240 x 70 mm

300 x 87 mm

400 x 87 mm

Three wire suspension.

500 x 87 mm

Three wire suspension.

600 x 87 mm

Three wire suspension.

850 x 87 mm

Three wire suspension.

850 x 87 mm

Three wire suspension.

Features

Timeless design, soft, natural and uniform light

Finish

Polyester powder coat

Material

Extruded and formed aluminium profile with LEDs

Shape

Circular

Uniclass 2015

Pr_70_70_48_86 Suspended luminairesPrimary

CAWS

V90/45 Luminaires

V90/510 Luminaires

Specification data - Suspended luminaires Enhanced data

Product Reference

Cole Suspended

Standards

Directive 2014/30/EC - EMC

Directive 2006/95/EC - Low Voltage

Regulation 1907/2006 - REACH

Directive 2019/15/EC - Labelling

Directive 2015/863/EC - RoHS

Directive 2012/19/EC - WEEE

Directive 2014/35/EU - making available on the market of electrical equipment

Directive 2011/65/EU - hazardous substances

Third-party certification

Photometrics

Luminaire description

Suspended, circular

Classification

-

Electric shock

Class I

Ingress protection (minimum)

IP20 Rated

Suitability for direct mounting on normally flammable surfaces

Not suitable for direct mounting on normally flammable surfaces

Circumstances of use

Normal use

Rated maximum ambient temperature

25°C

Control gear position

Integral within luminaire

Supply circuit conductor connections

Loop wiring

Nominal voltage

220-240 V

Luminaire power factor

0.97

LED luminaires

-

Performance standards

EN 62031, EN 60598-1, EN 60598-2-1, EN 61547, EN 61000-3-2, EN 61000-3-3, EN 55015, EN 62471

Safety standard

Non SELV

Initial LED luminaire efficacy (minimum)

121 lm/W

Wattage

15 W/ 1000 lm up to 150.5 W/ 19 470 lm

Colour temperature

3000K

4000K

Tunable White (TW) 2700-6500K

Insert requirements.

Colour rendering index (Ra)

80

Beam angle

180°

Useful life

50 000 hours (L80B20)

Dimming protocol

DALI Dimming

Non-emergency only.

DALI Dimming/ Bluetooth

Non-emergency only.

EasyAir PIR/ Daylight dimming

Non-dimming

Standard.

Emergency version

-

Standard

Tridonic

Mode of operation

Maintained

Duration of emergency mode (minimum)

No emergency

0 hours.

3 hours

Integral sensors

Not required

CASAMBI

Passive Infrared Sensor (PIR)

Philips EasyAir

Accessories

Consult manufacturer and insert requirements.

Size

240 x 70 mm

300 x 87 mm

400 x 87 mm

Three wire suspension.

500 x 87 mm

Three wire suspension.

600 x 87 mm

Three wire suspension.

850 x 87 mm

Three wire suspension.

850 x 87 mm

Three wire suspension.

Optics

Microprismatic Diffuser

Opal Diffuser

Colour

Black

White

Silver

RAL

Insert requirements.

Unified glare rating

-

Transverse

<20.8, meeting the Chartered Institution of Building Services Engineers (CIBSE), Society of Light and Lighting (SLL) and BCO Guide to Lighting Standards

Longitudinal

<20.8

Driver

-

Efficiency

96%

Frequency

50-60 Hz

Output direction

Direct

Standard product features

Colour:

Available in three standard colours or bespoke RAL colour.

Features:

Timeless design, soft, natural and uniform light.

Finish:

Polyester powder coat.

Material:

Extruded and formed aluminium profile with LEDs.

Shape:

Circular.

Size:

Seven sizes ranging from 240-1150 x 70-87 mm.

Warranty:

Two-year warranty.

Recycled content:

Aluminium and packaging.

Recyclability:

Frame and packaging.

Country of origin:

UK.

Environmental information

Recyclability

Frame and packaging

Recycled content

Aluminium and packaging
