Cole Surface Feature Lighting
Application

Suitable for a wide range of environments, from offices to lobby areas or retail lighting.

Description

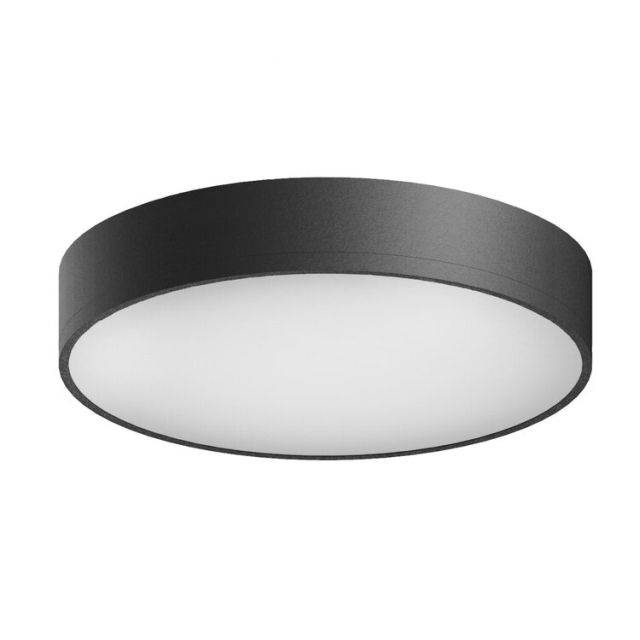

Surface mounted feature LED lighting with a circular disc profile.


Features and benefits:

  • Deep body with a floating design.
  • Designed to enhance modern architectural and commercial spaces.
  • The opal or microprismatic lens delivers a soft, natural and uniform light.
  • A range of size and colour variations are possible.
  • Can be specified with both CASAMBI and Philips EasyAir wireless sensors to increase user control.
  • Can be specified with LED Tunable White technology for the selection of a range of colour temperatures dependent on project requirements, to help aid health and well-being.
  • Frame uses a secure twist and lock system to detach from baseplate.
  • Internal ballasts or drivers are supplied.

Also available as suspended (specified separately).

General information

Finish

Polyester powder coat

Material

Extruded and formed aluminium profile with LEDs

Shape

Circular

Size

240 x 70 mm

300 x 87 mm

400 x 87 mm

Three wire suspension.

500 x 87 mm

Three wire suspension.

600 x 87 mm

Three wire suspension.

Show more

WarrantyDescription

Two years

Uniclass 2015

Pr_70_70_48_85 Surface luminairesPrimary

CAWS

V90/45 Luminaires

V90/510 Luminaires

Specification data - Surface luminaires Enhanced data

Standard

Directive 2014/30/EC - EMC.

Directive 2006/95/EC - Low Voltage.

Regulation 1907/2006 - REACH.

Directive 2019/15/EC - Labelling.

Directive 2015/863/EC - RoHS.

Directive 2012/19/EC - WEEE.

Directive 2014/35/EU - making available on the market of electrical equipment.

Directive 2011/65/EU - hazardous substances.

Third-party certification

Photometrics.

Luminaire description

Surface mounted, circular.

Classification

-

Electric shock

To BS EN 60598-1, Class I.

Ingress protection (minimum)

To BS EN 60529, IP20.

Suitability for direct mounting on normally flammable surfaces

Not suitable for direct mounting on normally flammable surfaces.

Circumstances of use

Normal.

Rated maximum ambient temperature

25°C.

Supply circuit conductor connections

Loop wiring.

Nominal voltage

220–240 V.

Luminaire power factor

0.97.

LED luminaires

-

Performance standards

EN 62031, EN 60598-1, EN 60598-2-1, EN 61547, EN 61000-3-2, EN 61000-3-3, EN 55015, EN 62471.

Safety standard

Non–SELV.

Wattage

15 W/ 1000 lm up to 150.5 W/ 19 470 lm.

Colour temperature

3000K.

4000K.

Tunable White (TW) 2700-6500K.

Insert requirements.

Colour rendering index (Ra)

80.

Beam angle

180°.

Useful life

50 000 hours (L80B20).

Dimming protocol

DALI Dimming.

Non-emergency only.

DALI Dimming/ Bluetooth.

Non-emergency only.

EasyAir PIR/ Daylight dimming.

Non-dimming.

Standard.

Non-dimming/ PIR sensor.

Emergency version

-

Standard

Tridonic.

Integral sensors

Not required.

CASAMBI.

Passive Infrared Sensor (PIR).

Philips EasyAir.

Accessories

Consult manufacturer and insert requirements.

Product Reference

Cole Surface

Control gear position

Integral within luminaire.

Initial led luminaire efficacy

121 lm/W.

Mode of operation

Maintained.

Duration of emergency mode (minimum)

No emergency.

0 hours.

Three hours.

Colour

Black.

White.

Silver.

RAL.

Insert requirements.

Transverse

Meeting the Chartered Institution of Building Services Engineers (CIBSE), Society of Light and Lighting (SLL) and BCO Guide to Lighting Standards.

<20.8.

Longitudinal

<20.8.

Efficiency

96%.

Frequency

50–60 Hz.

Emergency output

210 lm.

Output direction

Direct.

Environmental information

Recyclability

Frame and packaging.

-

Recycled content

Aluminium and packaging.

-
