CODA A1 Non-combustible Cavity Tray - Cavity Tray System
Verified by manufacturer 23 days ago
Standard Cavity Tray
Standard Cavity Tray

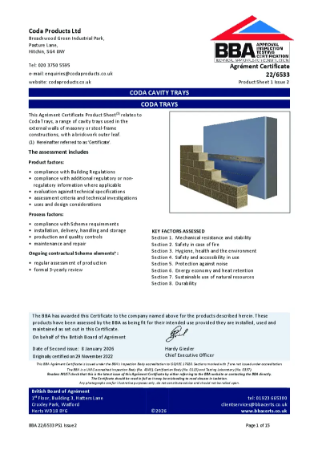

BBA Agrément Certificate
Certificate type
A1 fire rated stainless steel non-combustible cavity tray.
Application
A1 non-combustible cavity trays.
Description

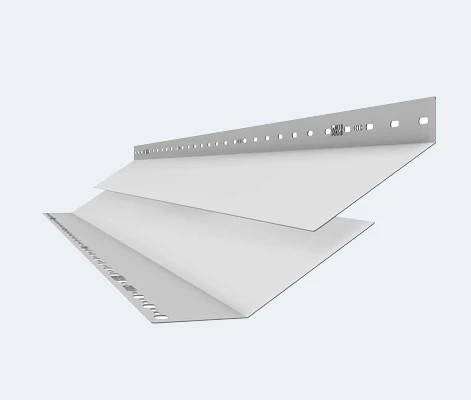

Coda Products has developed a bespoke non-combustible cavity tray manufactured from stainless steel sheets, designed to prevent the passage of water flowing from the external wall leaf to the interior of the building. The A1 Cavity Tray system is designed to be used in most building projects exceeding 18 m in height.
There are three off-the-shelf CODA Products cavity trays, and each set has an upper and lower tray. These include; standard cavity tray set (straight lengths), external and internal corners, and left and right end stops. Bespoke cavity trays can also be manufactured to fit specific requirements.
Features and benefits:
- High quality.
- Manufactured in accordance with European and International Standards, using the highest quality Grade 304 Stainless Steel.
- Rust-free.
- Designed to require the minimum of fixings and glues or silicone, while still being fit for purpose.
- Satisfies the requirements for an A1 Classification in accordance with BS EN 13501-1:2007+ A1:2009.
- Designed to accommodate a ±50 mm adjustment.
- British Board of Agrément (BBA) certified.
- UKCA marked.
- Manufactured in Britain.
Grade 316 stainless steel is available on request.
General information
Color | Silver Grey |
Finish | Natural |
Material | Stainless steel Guidance for specification option: Manufactured from Grade 1.4301 (304) or 1.4307 (304L) stainless steel. |
Shape | Rectangle Other |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | 50 year |
Uniclass | |
CAWS | F30/56 Preformed cavity trays F30/370 Preformed cavity trays |
Specification data - Preformed cavity trays
Third-party certification | British Board of Agrément. |
Material | Stainless steel, Grade 1.4301 (304).Stainless steel, Grade 1.4307 (304L).Guidance for specification option: Low carbon version. Stainless steel, Grade 1.4401 (316).Guidance for specification option: Optional. |
To fit cavity width | Guidance for specification option:
|
Height | Guidance for specification option:
|
Cavity tray | Straight lengths, CT.2 Upper Cavity Tray and CT.1 Lower Cavity Tray. |
Fire classification | A1. |
Joint sealant | Everbuild Everflex AC95 sealant. Guidance for specification option:
|
Joint tape | Arbo FR-RS Fire Tape. Guidance for specification option:
|
Fixings | Screws along with wall plug and washer. |
Tolerances | ±50 mm of adjustment. |
Density | 1450 °C. |
Melting point | 8.00–10.50. |
Modulus of elasticity | 193 GPa. |
Electrical resistance | 0.72 x10-6 Ω .m. |
Tensile strength | To EN 10088-2:2005, 8.00–10.50. Manufacturer guidanceSheet up to 8 mm thick. |
Elongation | To EN 10088-2:2005, 520–700 MPa. Manufacturer guidanceSheet up to 8 mm thick. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Recyclability | 100 |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 90 % Guidance for specification option: Maximum. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Third party certifications

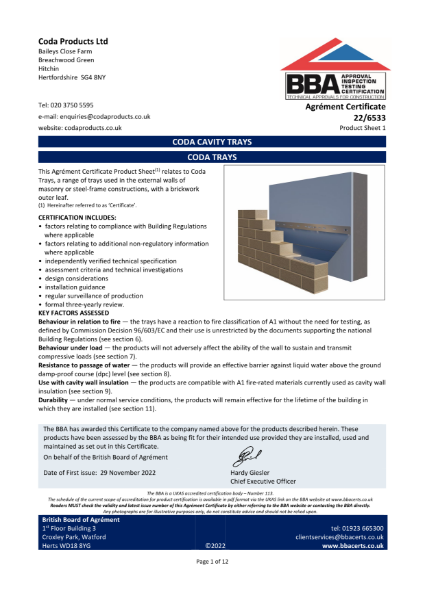

BBA Agrément Certificate
CODA Cavity Tray BBA
