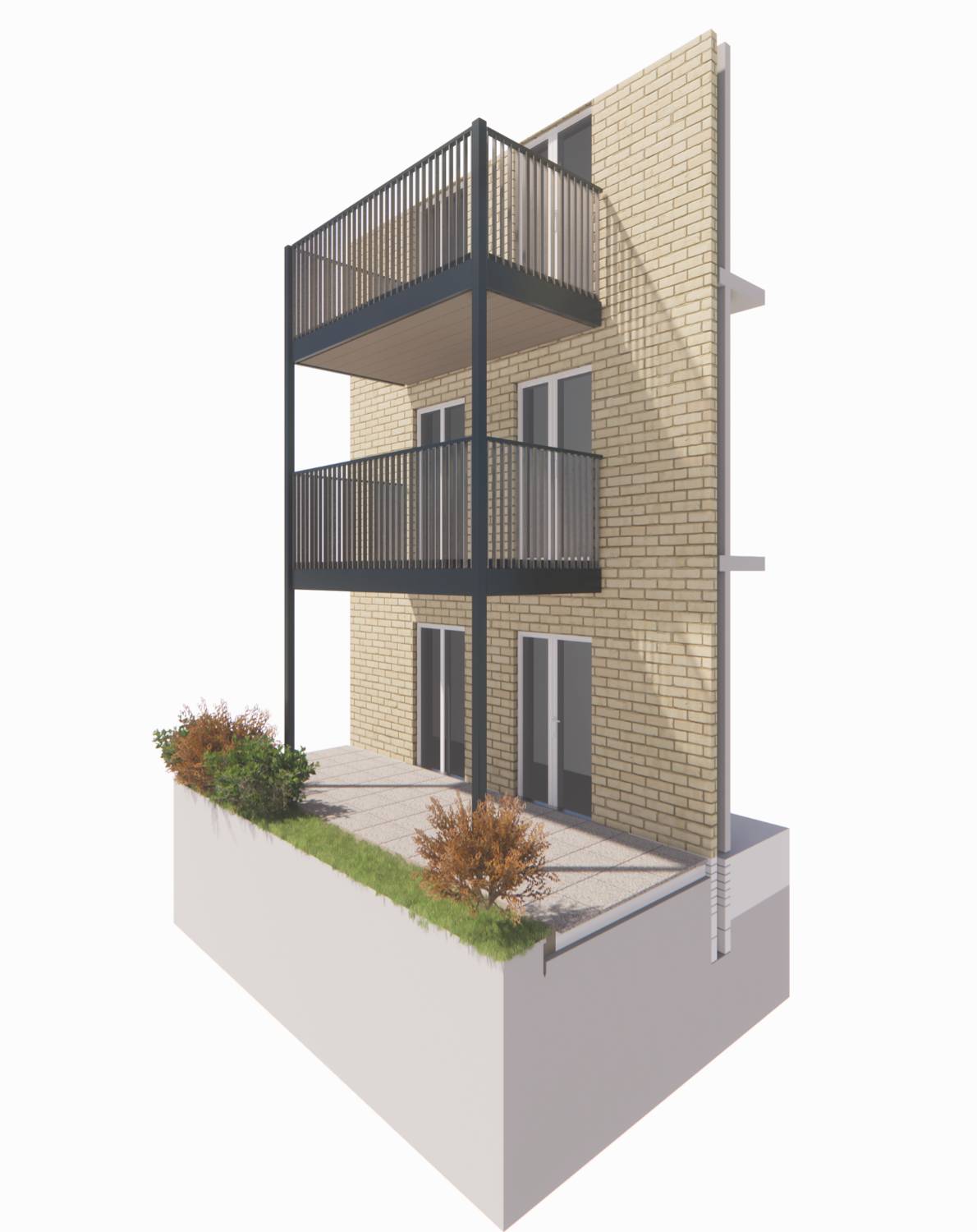

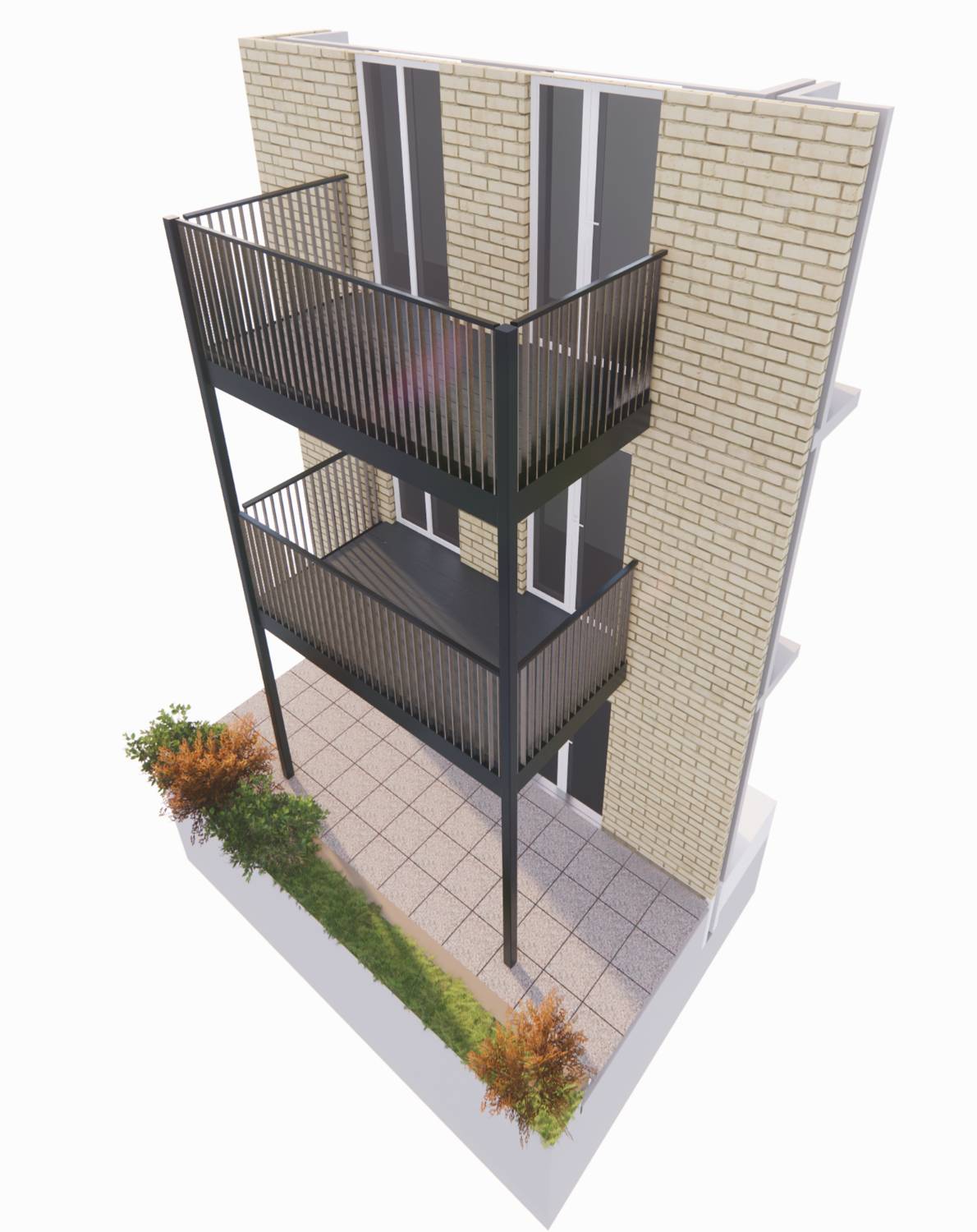

Cobalt Stack Balcony System

Name: Cobalt Stack Balcony System
Brand: 9hh4Lnbxi4iV9o6MCq4rk7
SKU: sEWACv6kowEcZcX8w45WJv

Light weight, High Quality and MMC Balcony System. Fully fabricated off-site. Hybrid Aluminium and Steel Modular Chassis.

Jump to:

+44 (0)1233 721190 www.bluechyp.co.uk

Application

Cobalt® is an MMC product, suitable concrete and steel frame, unitised, or precast methods of construction.

Description

Cobalt® is an MMC product, suitable concrete and steel frame, unitised, or precast methods of construction.

Features and benefits:

Wide range of balustrade blade and handrail options.
Multiple colour combinations: fascia, balustrade and handrails can colour-coordinate or contrast, depending on the architectural choice.
Balustrade blades 70 x 15 mm.
60 mm-wide, sloped handrail to improve safety.
Soffit panels are discreetly sloped to the balcony front for passive water management. Fully drained systems are available if required.
All parts are serviceable from the balcony surface.

General information

Color	Grey As standard, Non-Standard RAL available
Features	Aluminium prefabricated balcony system.
Finish	PPC. Anodised.
Material	Aluminium.
Shape	Rectangle
Size	10000 x 2500 x 500 mm 10 000 x 2500 x 300–500 mm – maximum overall length x width x height (fascia). Balcony projection up to 2500 mm Balcony width up too 10000 mm
WarrantyDescription	15 years.
Uniclass 2015	Ss_25_60_05_05 Balustrade and guarding systemsPrimary

Specification data - Balustrade and guarding systems Enhanced data

Newels	-
Material	Aluminium.
Uprights	Aluminium cold drawn bars and rods
Infills	Aluminium cold drawn bars and rods
Rails	-
Handrails	Aluminium handrails
Mid rails	Aluminium cold drawn bars and rods
Base rails	Aluminium cold drawn bars and rods
Fixing to parent structure	Facia plate secured to balcony chassis via patent pending safe side fixing on balcony flooring

Fire performance	Non-combustible Class A1 Class A2 d0 fire ratng.
Weight	100 kg per m²
Handrails	60 mm Maximum width, sloping internally to comply with BS 8579.
Standard	To BS 6180 Balustrade systems To BS EN 1991-1 Point loading, Wind loading To BS 12354-3 Acoustic rating To EN ISO 0545/5 Impact resistance To EN 12825 Static loading
Accessories	None. Glass-reinforced concrete (GRC).

Environmental information

Country of product manufacture	United Kingdom
Embodied carbon	Carbon neutral
Recyclability	Made from recycled structural grade glass aluminium.

Cobalt Stack Balcony System

Grey

Aluminium prefabricated balcony system.

PPC.

Anodised.

Aluminium.

Rectangle

10000 x 2500 x 500 mm

15 years.

Aluminium.

Aluminium cold drawn bars and rods

Aluminium cold drawn bars and rods

Aluminium handrails

Aluminium cold drawn bars and rods

Aluminium cold drawn bars and rods

Facia plate secured to balcony chassis via patent pending safe side fixing on balcony flooring

Non-combustible

Class A1

Class A2

d0 fire ratng.

100 kg per m²

60 mm

To BS 6180

To BS EN 1991-1

To BS 12354-3

To EN ISO 0545/5

To EN 12825

None.

Glass-reinforced concrete (GRC).

United Kingdom

Carbon neutral

Made from recycled structural grade glass aluminium.
