Application

Suitable for external application.

Description

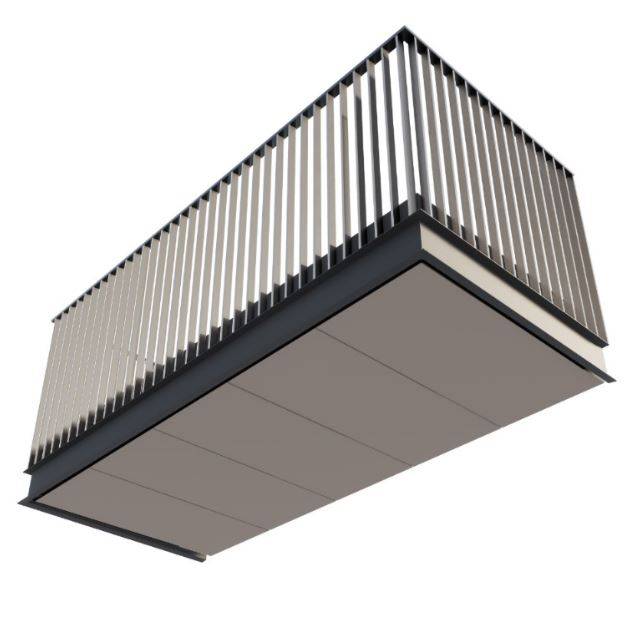

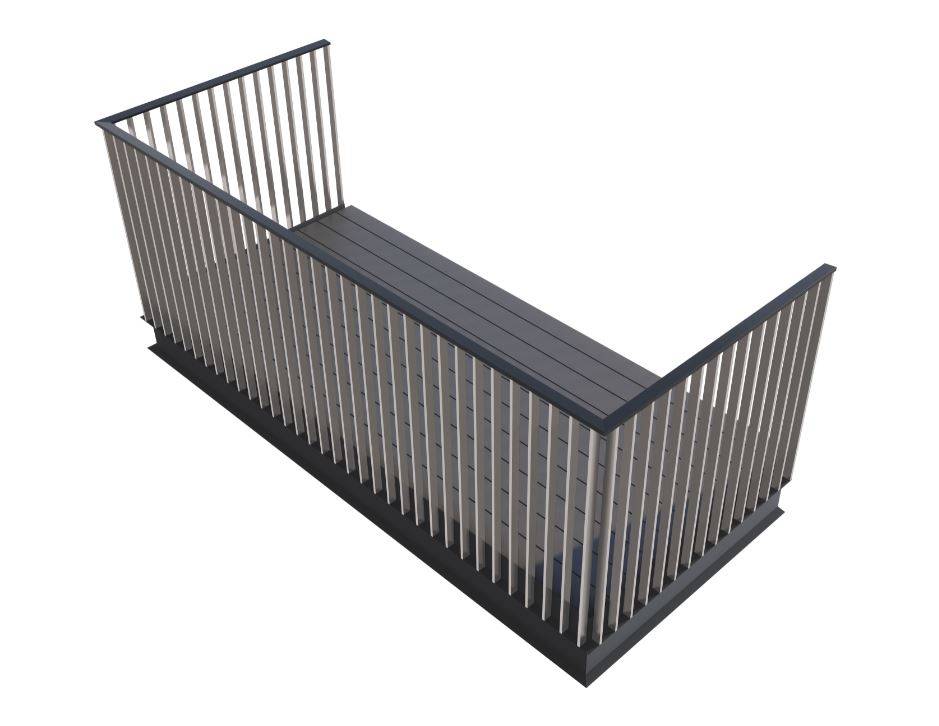

Top-mounted blade balustrade system with no visual welding or exposed fixings and non-combustible materials.


Features and benefits:


  • ·      Wide range of balustrade blade and handrails.
  • ·      Concealed fixings and no visual welding.
  • ·      Multiple colour combinations – facia, balustrade and handrails can colour co-ordinate or contrast based on architectural choice.
  • ·      Balustrade blades 45 x 15 mm.
  • ·      60mm wide and sloped internally handrail to improve safety.
  • ·     Soffit panels installed level, with internal drainage. Water edge drained 30 mm from front edge.
  • ·      All parts are serviceable from the balcony surface.

General information
Color

As standard, Non-Standard RAL available

Features

Aluminium prefabricated balcony system.

Finish

PPC.

Anodised.

Material

Aluminium

6005A T6 Structural Grade

Shape

Rectangle

Size

10000 x 2500 x 500 mm

10000 x 2500 x 300–500 mm – maximum overall length x width x height (fascia).


  • Balcony projection up to 2500 mm
  • Balcony width up too 10000 mm

WarrantyDescription

15 years.

Uniclass 2015
Ss_25_60_05_05 Balustrade and guarding systemsPrimary
Specification data - Balustrade and guarding systems Enhanced data
Fixing to parent structure

None.

Fascia plate.

Secured to balcony chassis (via patent pending) with safe side fixing on balcony flooring.

Cast-in anchor.

Span typically 2000 mm, with a deflection limit of length/ 360 to a maximum weight typically only 100 kg per m².

Fire performance

Non-combustible

Class A1

Class A2

d0 fire rating.

Weight

100 kg per m²

Handrails

60 mm

Maximum width, sloping internally to comply with BS 8579.

Standard

To BS 6180

Balustrade systems

To BS EN 1991-1

Point loading, Wind loading

To BS 12354-3

Acoustic rating

To EN ISO 0545/5

Impact resistance

To EN 12825

Static loading

Flooring

Aluminium decking.

Stone tiles.

Porcelain tiles.

Depth

300 mm.

500 mm.

Uprights

45 x 15 mm

Maximum height x width of vertical balustrade blades.

Accessories

None.

Glass-reinforced concrete (GRC).

Environmental information
Country of product manufacture

United Kingdom

Embodied carbon

Carbon neutral

Recyclability

Made from recycled structural grade glass aluminium.
