Application

Suitable for dry laying on raised metal access floors.

Description

A drylay backed and sealed engineered 16 mm-thick plank with a REGUPOL® acoustic layer bonded within.

The boards are comprised of a 4 mm oak wear layer, a 3 mm REGUPOL sonus eco acoustic centre layer (18 dB reduction) and a 9 mm multi-layer birch plywood core with magnetic backing.

Features and benefits:

  • Allows future accessibility to the floor void.
  • Anti-slip.
  • Good resistance to UV, chemicals, weather conditions, ageing and plasticisers.
  • Compatible with underfloor heating.

General information

Color

Brown

Finish

Sanded

Material

Wood

Guidance for specification option:

Oak wearing layer and birch plywood core.

Metal

Guidance for specification option:

Strontium ferrite isotropic magnetic sheet.

Shape

Rectangle

Length

450 mm

1800 mm

2400 mm

Manufacturer guidance

Random lengths, average 1800–2400 mm.

Width

450 mm

Height

16 mm

Warranty description

Ten year

Guidance for specification option:

Consult manufacturer's literature for details.

Uniclass

Pr_25_71_97_93 Wood laminate strips and boardsPrimary

CAWS

K21/10 Wood laminate flooring

K21/115 Wood laminate flooring

Specification data - Wood laminate strips and boards

Classification data

Standard

To DIN EN 14342.

Third-party certification

FSC certified.

Wearing layer

-

Wood species

European oak.

Guidance for specification option:

Centre layer: 9 mm multi-layer birch plywood.

Grade

Prime.
Rustic.

Thickness

4 mm.

Finished size

-

Overall thickness

16 mm.

Edges

Tongue and groove ends, Q-lon polyurethane foam seal and 1.5 mm bevel to long sides.

Reaction to fire classification

Cfl-S1.

Finish as delivered

-

Applied finish

Filled and sanded P120.
Bespoke finish.

Volatile organic compounds (VOC) emissions level (maximum)

Class E1 (formaldehyde).

Resilient layer

3 mm 4515 Eco acoustic centre layer.

Guidance for specification option:

18 dB reduction.

Acoustic seal

Q-Lon polyurethane foam seal.

Guidance for specification option:

  • Anti-squeak, water resistant, cold smoke proof.
  • Tested up to 20 years.
  • Temperature range: -60ºC to +70ºC.
  • Abrasion resistance: No abrasion after 285 000 cycles of grinding load.

Backing

Strontium ferrite isotropic magnetic sheet, 0.75 mm thick.

Guidance for specification option:

  • Attractive force: 38 g/cm².
  • Magnetic properties: Energy (BH Max): 0.6 MGOe.
  • Residual induction Br (Gauss): 1600–1800 Gs.
  • Intrinsic coercive force Hcl (Oersteds): 2405 Oe.
  • Coercive force HcB (Oe): 1306 Oe.
  • Physical properties: Can be coiled to 13 mm radius at 68ºF without cracking.
  • Hardness: Shore D45.
  • Machineability: die cutting, knife cutting, power saws, cleanly and with ease.
  • Specific gravity: 3.6.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Material

Wood

Guidance for specification option:

Oak wearing layer and birch plywood core.

Metal

Guidance for specification option:

Strontium ferrite isotropic magnetic sheet.

Literature

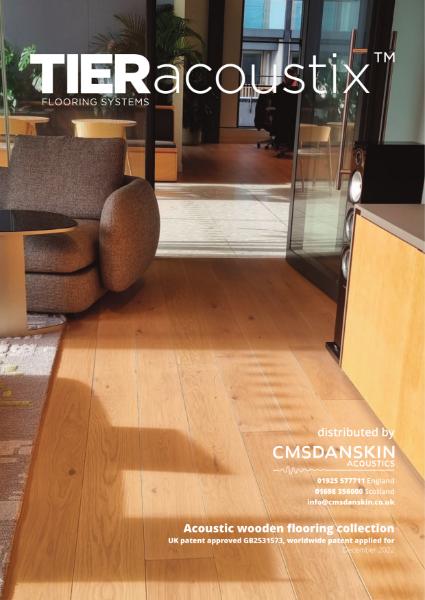

Tier Global Brochure

Tier Global Brochure

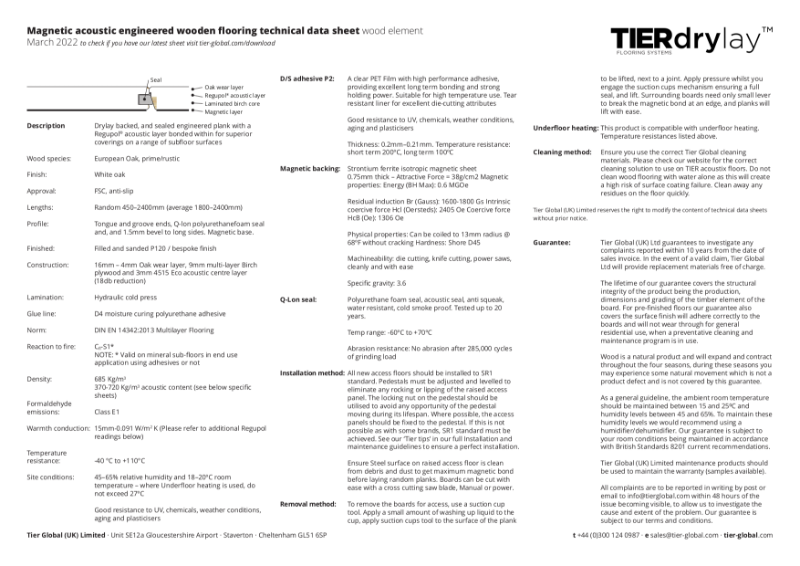

Tier-Global-Drylay-TDS-March-2022

Tier-Global-Drylay-TDS-March-2022
