Application

Suitable for use on even concrete sub-floors.

Description

Designed for use on even concrete sub-floors and used in conjunction with Danskin flanking strip and on occasion Park Quilt 25 or 13 to complete the acoustic specification.

General information

Color

Other

Material

Wood

Foam

Shape

Rectangle

Length

1800 mm

Width

47 mm

Height

Bespoke

Warranty description

One year

Other

Uniclass

Pr_20_76_88_47 Insulating timber floor battensPrimary

CAWS

K11/15 Battened plywood floating floor

K11/115 Battened plywood floating floor

K20/150 Battened timber board floating floor

K20/20 Battened timber board floating floor

Specification data - Insulating timber floor battens

Classification data

Size

1800 x 47 mm.

Guidance for specification option:

  • 47 mm nominal width x 1800 mm long softwood battens, with a 9 mm resilient foam strip adhered to the underside available in standard heights from 31 mm to 70 mm.
  • Alternative sizes can be supplied on request.

Shape

Rectangular.

Resilient layer

Foam.

Overall height

31 mm.
45 mm.
49 mm.
54 mm.
61 mm.
70 mm.

Accessories

None.
Perimeter flanking strip.

Guidance for specification option:

  • 5 mm thick acoustic foam supplied in rolls 75 m long, designed for placing around the floor perimeter to prevent airborne sound leakage.
  • The standard height is 100 mm but increases for high floor elevations.
  • Bearers can be preservative treated where required.

Sustainability data

Material

Wood
Foam

Literature

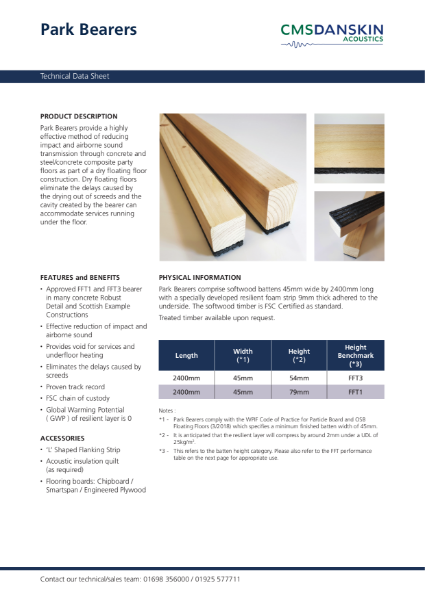

CMS Danskin Acoustics Park Bearers - TDS issue 4 02 2023

CMS Danskin Acoustics Park Bearers - TDS issue 4 02 2023
