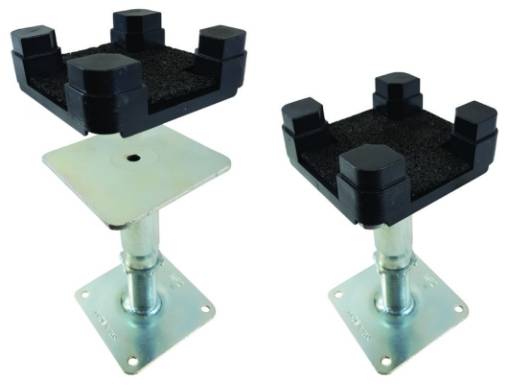

CMS Danskin Acoustics Saddle Pedestal Levelling System
Verified by manufacturer 6 days ago
H5 Ped - 150–225 mm.
H5 Ped - 150–225 mm.
The Saddle Pedestal levelling floor system is a hybrid of the widely specified CMS Danskin Acoustics saddle levelling system coupled with the proven technology of raised access flooring systems.
Application
For applications in floor voids over 200 mm.
Description
The Saddle Pedestal levelling floor system is a hybrid of the widely specified CMS Danskin Acoustics saddle levelling system coupled with the proven technology of raised access flooring systems.
Features and benefits:
- Pedestal heights from 150–675 mm.
- Pedestals adjustable height have a range of 75 mm, enough to accommodate most, if not all, out of level substrates.
- Can achieve a impact sound reduction of up to 19 dB depending on the floor build up.
General information
Color | Silver Black |
Material | Steel Other |
Shape | Rectangle |
Height | 150 mm 185 mm 200 mm 225 mm 235 mm |
Uniclass | |
CAWS | K11/27 Acoustic separating floor system K11/275 Acoustic separating floor system K41/130 Raised access floor K41/130 Raised access floor |
SKU Code | H5 |
Specification data - Access floor pedestals
Classification data | |
Pedestal type | Fixed head floor pedestals. |
Materials | Steel. Manufacturer guidancePedestal material. |
Model | Adjustable. |
Height | 150–225 mm. Manufacturer guidanceHeight adjustment. |
Cradle | Injection moulded saddle headcap with factory bonded resilient layer. |
Mechanical fixings | Not required. |
Adhesive bond | Not required. Pedestal adhesive. Guidance for specification option: 9 kg (Coverage – approximately 150 pedestals). |
Bracing | Not required. Manufacturer guidanceCross-bracing. |
Impact sound reduction | To BS EN ISO 717-3:2013, 19 dB. Guidance for specification option: On 22 mm chipboard. |
Frame /Supports | C16 52 mm thick support bearers. Guidance for specification option: Maximum 600 mm centres. C16 61 mm thick support bearers. Guidance for specification option: Maximum 600 mm centres. C16 70 mm thick support bearers. Guidance for specification option: Maximum 600 mm centres. Manufacturer guidanceSupport bearers. |
Centres | 600 mm. Manufacturer guidanceMaximum centres. |
Sustainability data
Material | Steel Other |
Literature
CMS Danskin Acoustics Pedestal Levelling Floor System - issue 3 03 2025
