CMS Danskin Acoustics Masspanel - Acoustic Floor Panel
Verified by manufacturer 1 day ago

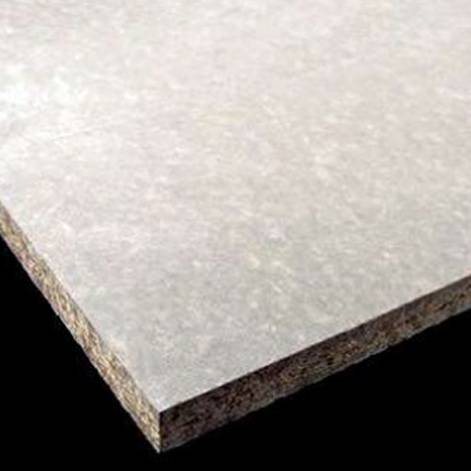

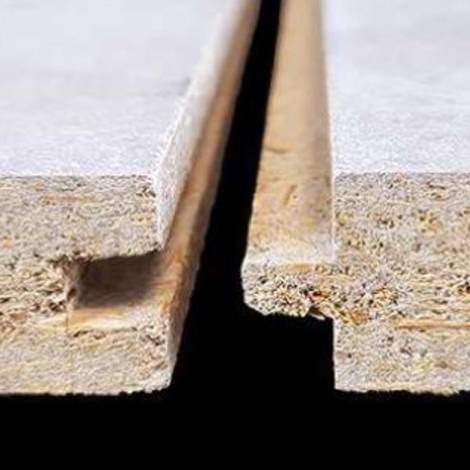

A cement-bonded particleboard floor panel, featuring tongue-and-groove edges.
Application
Suitable for flooring and decking applications.
Description
Masspanel is a structural acoustic floor panel made of cement-bonded particleboard with tongue and groove edges and can also be used as an overlay board that spans bearing structures such as joists and resilient batten systems. Its high mass provides airborne sound insulation and contributes to noise reduction.
Features and benefits:
- Conformity assessed for structural use in floors and decking (CE & UKCA) to BS EN 13986.
- Reaction to fire classification of Class A2fl-s1 in accordance with BS EN 13501-1.
- High thermal conductivity and heat capacity, making it ideal for under floor heating efficiency.
- Compliant to Robust Detail FFT4 treatment.
- Will not rot or degrade in the presence of moisture.
General information
Color | Grey |
Finish | Cement Smooth |
Material | Particleboard |
Shape | Rectangle |
Length | 1200 mm |
Width | 600 mm |
Height | 18 mm 22 mm |
Uniclass | |
CAWS | K11/245 Cement bonded particleboard floating floor K11/325 Particleboard flooring K11/27 Acoustic separating floor K11/345 Cement-bonded particleboard flooring K11/30 Particleboard flooring |
Specification data - Particleboards
Classification data | |
Standards | To BS EN 13986. |
Board type | To BS EN 312, Type P5. |
Grade | MR (moisture-resistant) and FR (fire-retardant). |
Reaction to fire classification | |
Flooring | To BS EN 13501-1, Class A2fl-s1. |
Format | Standard. |
Thickness | 18 mm. 22 mm. |
Colour | Grey. |
Edges | Tongued-and-grooved. |
Dimensions | 1200 x 600 mm. Guidance for specification option: Tolerance: +/-1.5 mm. |
Weight | 28 kg/m². Guidance for specification option:
|
Thermal conductivity | 0.55 W/mK. |
Sustainability data
Material | Particleboard |
