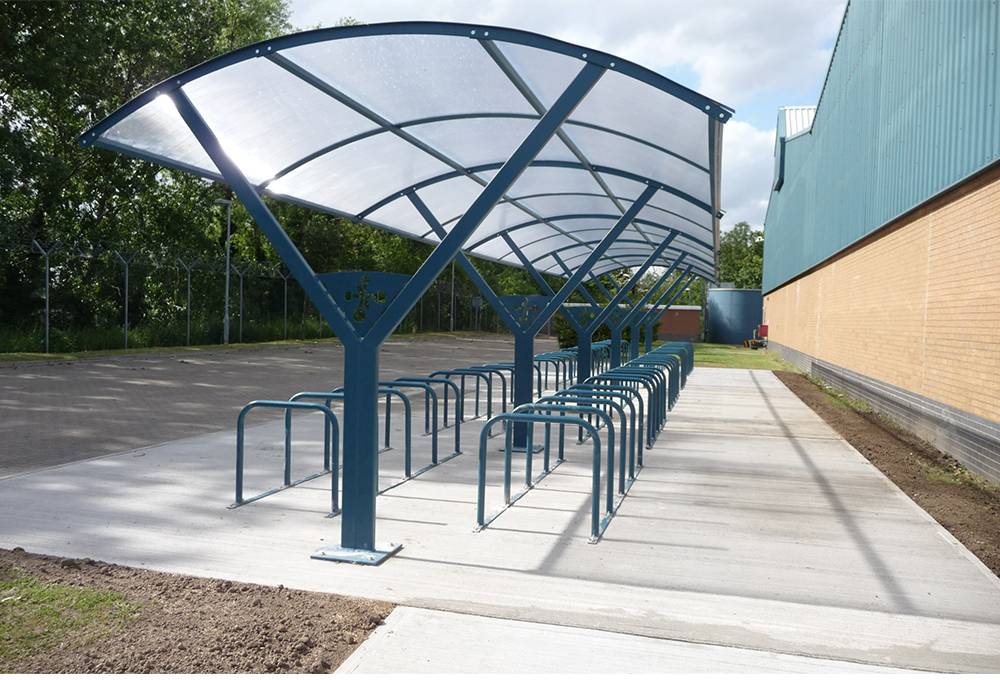

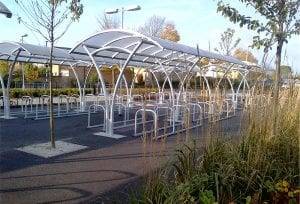

CLS - Double Row Symmetric Bike Shelters

Verified by manufacturer 6 months ago

CLS20

urbanspec Variant:
Third party certifications:
  • Alcumus SafeContractor

    Alcumus SafeContractor

    Certificate type

  • CHAS

    CHAS

    Certificate type

  • Constructionline

    Constructionline

    Certificate type

  • ISO 14001 Environmental Management Systems

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

  • smas WORKSAFE

    smas WORKSAFE

    Certificate type

Provides weather protection for two rows of cycle stands with a 4000 mm cover width.

Jump to:
01227 200404 Website

Application

Often selected for larger schemes to form a cycle shelter compound where the site is secure or within an area of high pedestrian traffic and the overall visual impact of the structure is a consideration.

Description

Configurable for layout to optimise bike storage capacity, CLS can be specified as a series unit with add-on bays or combined with CS Shelters to form a bike shelter compound where the site is secure or within an area of high pedestrian traffic and the overall visual impact of the structure is a consideration.


Features and benefits:

  • urbanspec CLS provides cover width for a double row of bike racks cycles with standard ‘sheffield’ type stands.
  • urbanspec CLST model accommodates two-tier cycle racks for high storage capacity applications.
  • Custom dimensions can be accommodated as a special build.
  • The radius steel support structure has a central base plate design that can be specified for either surface fix or subsurface ground fixings.
  • urbanspec bike shelters are UK manufactured and the all-steel framework has a hot dip galvanised finish as standard.
  • Customisation options include colour powder coated frames and racks, bespoke laser cut logo to end frames and LED lighting.
  • UV protected polycarbonate roof panels with aluminium glazing system combine clean aesthetics with a long service life.

General information

Color

Other

Finish

Galvanized

Powder-coated

Material

Steel

Polycarbonate

Shape

Rectangle

Width

5150 mm

6150 mm

Height

3054 mm

3254 mm

Uniclass

Pr_20_65_78_58 Open-sided sheltersPrimary

CAWS

B91/385 Shelter

B91/330 Canopy

B91/340 Cycle shelter

Specification data - Open-sided shelters

Shelter description

Double row symmetric cycle shelters.

Dimensions

-

Plan size

550 x 5150 mm.

Guidance for specification option:

(Base depth x base width).


Top depth: 4042 mm.

Top width: 5024 mm.


Height

3054 mm.

Frame

-

Material

Structural steel.

Finish

Galvanized.

Powder-coated.

Bespoke.

Guidance for specification option:

Customization options include colour powder coated frames and racks, bespoke laser cut logo to end frames.

Colour

-

Manufacturer guidance

CENTAUR CLS has a hot dip galvanized frame finish as standard and this is a coating that is highly durable in all environments. An optional powder coated finish can be selected from a range of RAL colours together with coordinated cycle stands. Consult manufacturer.

Roof covering

Polycarbonate roof panels with aluminium glazing system.

Accessories

Not required.

LED lighting.

Laser cut logo.

Fixing

Baseplate, surface fixed.

Baseplate, subsurface ground fixings.

Storage

20 cycles.

Stand type

Sheffield, rail fix (toast rack).

Sheffield, baseplate.

Guidance for specification option:

Integral base plates for individual ground fixing.

Sheffield, root fix.

Guidance for specification option:

Stands are cast into concrete below ground.

Sustainability data

Contains Red List materials

No

Country of product manufacture

United Kingdom

Material

Steel

Polycarbonate

Manufacturing plant location

Recyclability

100%

Guidance for specification option:

All non-production steel is 100% recycled and separated at source from fabrication and sheet metal processes.

All timber cladding products are sustainably sourced and certified with non-production material separated at source for 100% recycling.

Third party certifications

Third party certifications

Alcumus SafeContractor

Alcumus SafeContractor

Alcumus SafeContractor

CHAS

CHAS

CHAS Advanced

Constructionline

Constructionline

Constructline Gold Member

ISO 14001 Environmental Management Systems

ISO 14001 Environmental Management Systems

ISO 14001:2015 Environmental Management System

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO 9001:2015 Quality Management System

smas WORKSAFE

smas WORKSAFE

smas WORKSAFE
