Application

Designed for use in hotels, restaurants, educational, industrial, leisure and commercial situations.

Description

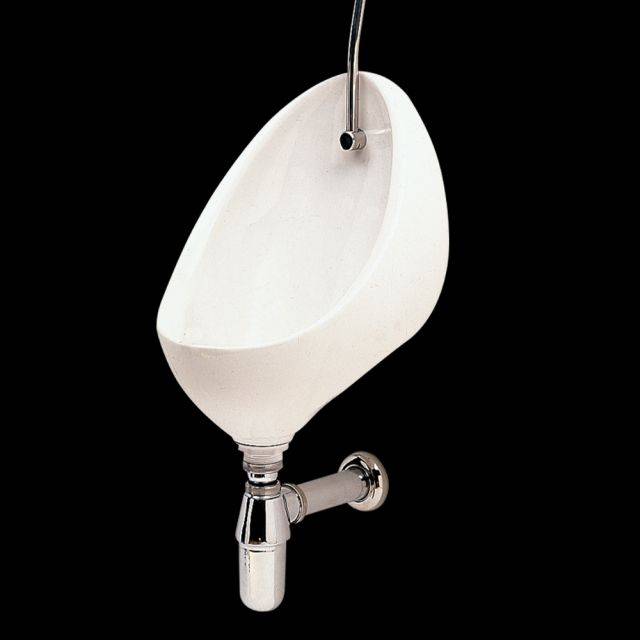

A general purpose low to medium vandal risk bowl.


Features and benefits:

  • To be specified with Twyford Urinal Cistern, Flush Pipe, Trap and Waste.

General information

Color

White

Material

Vitreous china

Length

375 mm

Width

305 mm

Height

455 mm

Uniclass

Pr_40_20_93_82 Wall-hung urinalsPrimary

CAWS

N13/15 Urinals and cisterns

N13/315 Urinals and auto-flushing cisterns

Product range

Urinals

Specification data - Wall-hung urinals

Form

Bowl.

Materials

-

Body

Vitreous china.

Finish and colour

White.

Guidance for specification option:

WH.

Accessories

SR5307XX, Bowl wall hangers (Washbasins/ urinal).

VC7051WH, Urinal division, including fixing.

SR5706XX, Division wall hangers.

Cistern

CX8711WH - Ceramic Auto Cistern & Ftgs 4.5L.

CX8712WH - Ceramic Auto Cistern and Fittings 9L.

CX8713WH - Ceramic Auto Cistern and Fittings 14L.

CX9122XX - Plastic Auto Cistern Assembly 9L.

CX9123XX - Plastic Auto Cistern Assembly 13.5L.
