CLiCKFLO® 20 - Screed Encasement UFH Pipe Carrier Panel
Verified by manufacturer 1 day ago

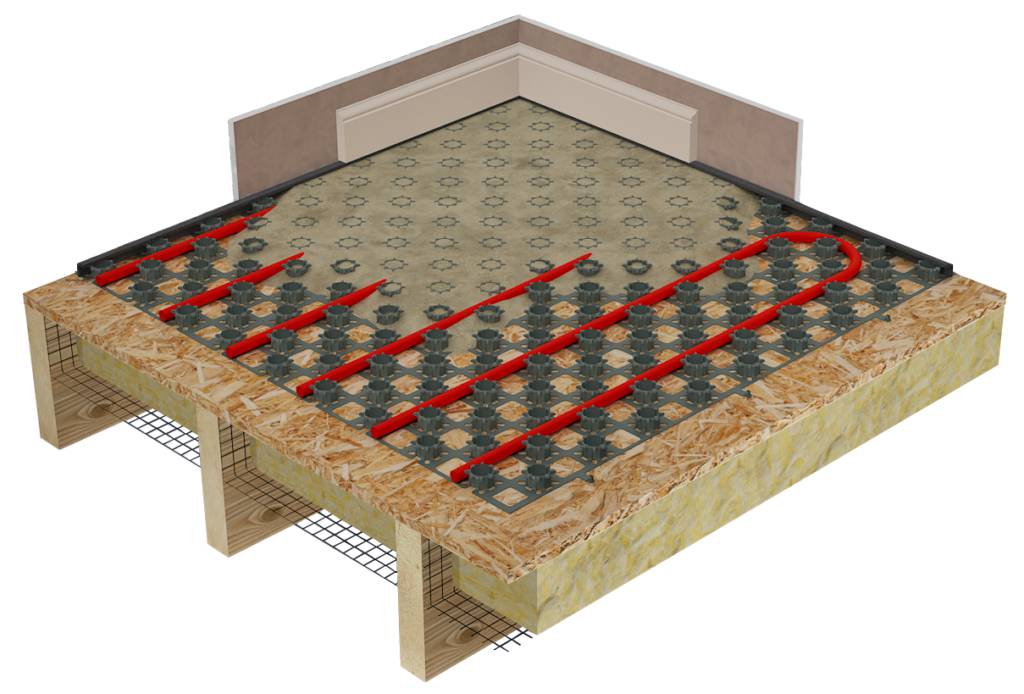

Low profile screed encasement panel for underfloor heating pipe retention, made from recycled polypropylene with self adhesive backing.
Application
Suitable for all types of new and existing floors, including timber joist ground/ intermediate floors, separating floors, and floors with various coverings such as ceramic tiles, luxury vinyl tiles, engineered wood, carpet, and underlay. Compatible with systems using thin self-levelling screed or dry-fit ScreedBoard 20 overlay and particularly suitable for new build, refurbishment and conservation UFH applications.
Description
Low profile screed encasement panel for underfloor heating pipe retention, made from recycled polypropylene with self adhesive backing.
Features and benefits:
- Only 20 mm thick.
- Accepts 14–17 mm pipes.
- Self adhesive backing.
- Delivers outstanding performance.
- Accepts all types of floor coverings, including tiles.
- Made from 100% recycled plastic.
- Easy to cut to size.
- Rapid heating response.
General information
Color | Black |
Finish | Other |
Material | Polypropylene Recycled plastic |
Shape | Rectangle |
Length | 1200 mm |
Width | 600 mm |
Height | 20 mm |
Uniclass | |
CAWS | T90/110 Heating system |
SKU Code | CF20 |
Specification data - Polypropylene (PP) studded sheets
Classification data | |
Product reference | Clickflo® 20. |
Environmental performance characteristics | |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100%. |
Sheet thickness | 20 mm. Manufacturer guidanceNominal thickness. |
Weight (minimum) | 1.16 kg/panel. |
Colour | Black. |
Panel dimensions | 600 x 1200 mm. |
Accessories | Not required. CLiCKFLO highway clip rail. Thermal edge roll + 5/ 75. |
Sustainability data
Material | Polypropylene Recycled plastic |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
Literature
Clickflo® 20 - Data Sheet
