Clear Secure Screen - Modular Glazing

Verified by manufacturer 2 months ago

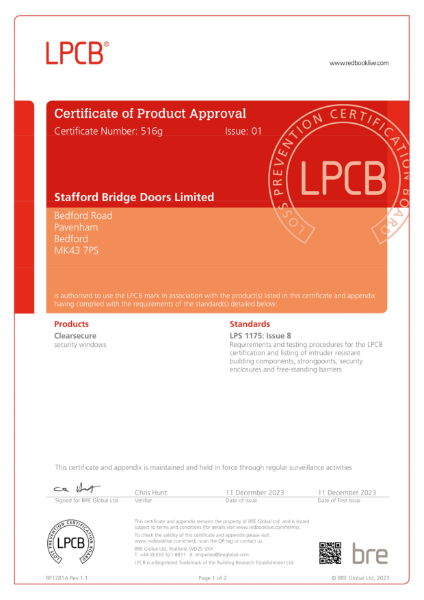

Stafford Bridge Doors Ltd Third party certifications:
  • BRE Certificate

    BRE Certificate

    Certificate type

Developed by Stafford Bridge, Clear Secure is a lightweight, adaptable modular glazing system that gives your facility the protection needed to resist a determined opportunistic attack.

Jump to:
BOS
+44 (0)1234 826 316 Website

Application

Modular glazed secure screen suitable for use in facilities that need protection to resist a determined opportunistic attack.

Description

Developed by Stafford Bridge, Clear Secure is a lightweight, adaptable modular glazing system that gives your facility the protection needed to resist a determined opportunistic attack.


Clear Secure offers an ideal solution where vision and illuminating light are important, yet the physical security of individuals or assets is also required. Independently tested and certified to LPS 1175 Issue 8 B3 (SR2) Clear Secure is proven to withstand determined attacks using tools such as hammers and cutters for up to 3 minutes.


Features and benefits:

  • Tested and certified to LPS 1175 Issue 8 B3 (SR2).
  • Form barriers or guided walkthroughs.
  • Flexible: Option of self-supporting or anchored to an existing wall.
  • Adaptable: Pass around obstacles using 90° turns.
  • Light weight box section construction.
  • Available in brushed stainless steel or painted finish to agreed BS or RAL colour.
  • Panels can be fixed together to form a standalone system or attached to an existing structure.
  • Allows natural sunlight into the building.
  • Offers a discrete secondary layer of security.
  • Flexible and modular design suits most applications.

General information

Color

Clear

Beige

Black

Blue

Bronze

Show more

Finish

Powder-coated

Brushed

Satin

Material

Steel

Stainless steel

Glass

Shape

Rectangle

Square

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

One year

Uniclass

Pr_25_71_57_60 Partition panelsPrimary

CAWS

K30/130 Relocatable partition system

K30/10 Relocatable partition system

Specification data - Partition panels

Unit size

-

Thickness

-

Manufacturer guidance

Profile Depth: Minimum - 80 mm, maximum - 200 mm.

Profile Thickness: Minimum - 40 mm, maximum - 100 mm.

Partition height (nominal)

-

Manufacturer guidance

Sizes are measure for the overall frame dimension, an additional 10 mm will need to be added to the sizes listed below for the structural opening sizes:

  • Minimum Height/ Width = 350 mm.
  • Maximum Height/ Width = 3050 mm.
  • Maximum Overall Size (w x h) = 2050 x 3050 mm or
  • Maximum Overall Size (w x h) = 3050 x 2050 mm.


Panels can be fixed together, either side by side or on top of each other. Panels fixed together using stainless steel (A2) M10 minimum bolts and stainless steel (A2) M10 minimum nuts and Loctite.

Width (nominal)

-

Manufacturer guidance

Sizes are measure for the overall frame dimension, an additional 10 mm will need to be added to the sizes listed below for the structural opening sizes:

  • Minimum Height/ Width = 350 mm.
  • Maximum Height/ Width = 3050 mm.
  • Maximum Overall Size (w x h) = 2050 x 3050 mm or
  • Maximum Overall Size (w x h) = 3050 x 2050 mm.


Panels can be fixed together, either side by side or on top of each other. Panels fixed together using stainless steel (A2) M10 minimum bolts and stainless steel (A2) M10 minimum nuts and Loctite.

Panel partition type

Glazed.

Framing, fixing points and joints

Carbon steel.

Stainless steel.

Glazed panels

-

Type

Polycarbonate double pane construction, 36 mm thick – Tested to LPS 1175 Issue 8 A5.

DCT 24 monolithic glazing unit, 24 mm thick - Tested to LPS 1175 Issue 8 B3.

DCT 24 monolithic glazing unit, 26 mm thick - Tested to LPS 1175 Issue 8 B5.

Other features

Anchored to an existing wall.

Packers.

Self-supporting.

Finish:

Powder-coated.

Guidance for specification option:

Powder coated to any BS or RAL colour available. Insert requirements.

Brushed.

Guidance for specification option:

Brushed for stainless steel option.

Satin.

Guidance for specification option:

Satin finish for stainless steel option.

Manufacturer guidance

Steel frame

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Guidance for specification option:

Glass

Country of product manufacture

United Kingdom

Recyclability

95%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

100 %

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Third party certifications

BRE Certificate

BRE Certificate

Clearsecure Modular Glazing LPS 1175 Certificate
