Clear 6 Quadrant Single Door - Curved Shower Enclosure
Verified by manufacturer 15 days ago
CAQSFC0800 – 800 mm Brushed Brass
CAQSFC0800 – 800 mm Brushed Brass

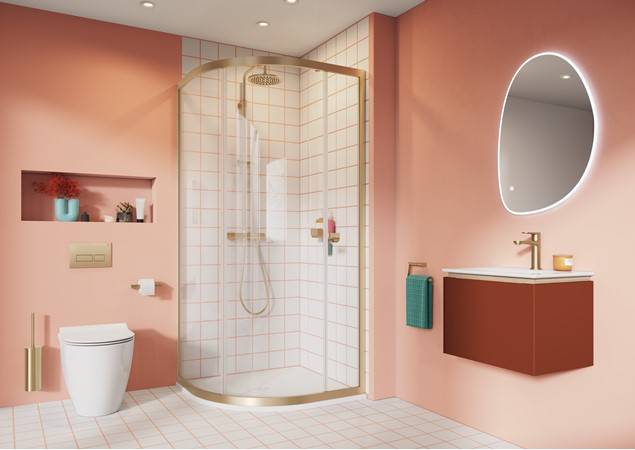

A glazed curved shower enclosure with sliding door.
Application
Suitable for bathrooms and wet rooms in dwellings and commercial applications.
Description
A glazed curved shower enclosure with sliding door.
Features and benefits:
- Reversible door for left or right hand entry.
- Quick release smooth double rollers.
- Concealed fixings and profile cover caps.
- Suitable for 550 mm radius shower trays or tiled floors (wet room).
- Silver frame - silver anodised aluminium finish.
- Matt black frame - matt black anodised aluminium finish.
- Brushed brass frame - brushed brass anodised aluminium finish.
General information
Color | Gold Black Silver |
Finish | Brushed Matt Anodized |
Material | Aluminium Glass |
Shape | Other |
Length | 800 mm 900 mm |
Width | 800 mm 900 mm 1000 mm 1200 mm |
Height | 1950 mm |
Uniclass | |
CAWS | N13/375 Shower units N13/40 Shower units |
Specification data - Shower doors
Standard | To BS EN 14428. |
Form | Quadrant sliding curved door.Guidance for specification option: CAQSFC0800A. Fixed sliding curved door.Guidance for specification option: CAQSFC0800B. |
Materials | |
Frame | |
Body | Aluminium. |
Finish and colour | Brushed brass. |
Glazing | |
Glazing type | 6 mm toughened safety glass. |
Finish and colour | Clear. |
Dimensions | 800 x 800 mm.Guidance for specification option: Adjustment width: 770–785 mm. |
Accessories | Removable seals and quick release rollers. Guidance for specification option: CAQSFC0800A. None. Guidance for specification option: CAQSFC0800B. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
