Round body gully with round or square top and bottom outlet.

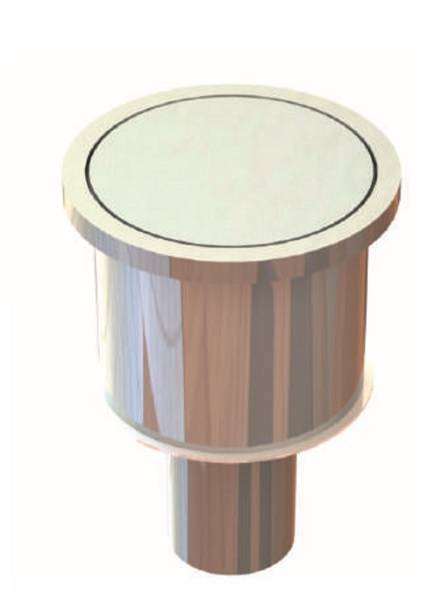

A stainless steel industrial gully. The KVCR265/4”RD gully is a round body, round top, bottom outlet gully for heavy duty areas with high flow rates. A version with round body, square top and bottom outlet (KVCR265/4” SQ) is also available.
This is a sealed cleanroom gully with a strong positive seal created by machining away a 10 mm groove from a 20 mm top plate. A 10 mm top plate with a recessed ‘O-ring’ creates the seal. The top plate is then removable with a heavy duty suction cup available as an accessory.
Foul air traps:
The bottom outlet gullies use a Bell Trap (also referred to a Dome or Mushroom). A 65 mm water seal is created (complies with EN 1253). This grips firmly to an upstand which is an integral part of the gully body. It is easily removable giving clear access for rodding and cleaning. Chains can be attached to traps to ensure they are not lost.
The side outlet gullies use a weir trap system. A 50 mm water seal is created (complies with EN 1253). This is a fully integral part of the gully body and contains a removable bung for easy rodding. In special circumstances a hinged self-sealing stainless bung can be provided.
Features and benefits:
Applications:
Material | 1.4301 (304) stainless steel1.4401 (316) stainless steel |
Features | Short lead time, strong, can be used in both heavy and light duty areas, suitable for internal factory drainage |
Shape | Circular |
Size | 265 x 220 x 250 mm365 x 320 x 250 mm |
Uniclass 2015 |
Product Reference | Gully |
Type | KVCR265/4” RDRound. KVCR365/6” RDRound. KVCR265/4” SQSquare. KVCR365/6” SQSquare. |
Height | Manufacturer's standardBespokeInsert requirements. |
Material | 1.4301 (304) stainless steel1.4401 (316) stainless steel |
Flange type | 4” 150lb R/F S/O ANSI Flange4” PN10 R/F S/O FlangeDamp proof membrane flangeHolding flangePuddle flange |
Side inlets | - |
Type | 1½” BSP nipple1½” BSP socket50 mm push fitAbove ground funnel |
Angle | 45°90°BespokeSee 'Options'. Consult manufacturer and insert requirements. |
Cover/ Grating | Perforated gratingSee 'Option's and insert requirements. SealedSlotted |
Filter basket | Not requiredRequiredRequired, with chainRequired, with separate filter basket |
Accessories | NoneHeavy duty suction cupHinged self-sealing stainless bungFor foul air trap on a side out gulley. |
Standard product features | Size (h x top diameter x body diameter):
Increased height body is used where a higher flow rate is needed. The gullies can be increased to customized heights. Consult manufacturer for details. Outlet: - 4” Sch 10:
- 6” Sch 10:
Flow rate:
|
Product Options | Flanges: Base flanges are available with flange connections i.e. 4” / 6” / 8” ANSI B 16.5 or BS 4504 or to suit polypropylene flanges. Consult manufacturer for details. Side inlets: - Angle:
Grating: An extensive range of gratings are available, consult technical literature for details. Filter basket: Filter baskets can be incorporated into bell traps or separated for deeper gullies. For a higher flow rate a deeper gully with separate traps and filter baskets are used. The filter basket can also be chained to avoid loss. |
