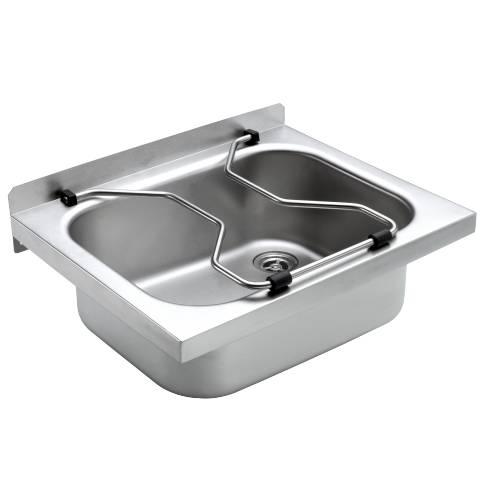

Cleaners Sink - BS302
Verified by manufacturer over a year ago
General purpose sink for wall mounting.
Application
General purpose sink for wall mounting.
Description
General purpose sink for wall mounting.
Features and Benefits:
- Stainless steel, surface satin finished.
- Material thickness 1.2 mm, seamless welded bowl with dimensions 420 x 400x 170 mm.
- Rounded edges.
- One 1/2" plug waste, drainage back right, 40 mm rear upstand, incl. stainless steel screws and dowels.
- With stainless steel hinged grating with rubber bumps.
General information
Color | Silver |
Finish | Satin |
Material | Stainless steel Guidance for specification option: grade 1.4301 (304) |
Shape | Square |
Length | 400 mm |
Width | 500 mm |
Height | 210 mm |
Warranty description | Five year |
Uniclass |
Specification data - Sinks
Form | Wall-hung. |
Bowls | One. |
Drainers | One, right hand. |
Materials | |
Body | Stainless steel.Guidance for specification option: grade 1.4301 (304) |
Finish and colour | Satin. |
Size | 500 x 210 x 400 mm.Guidance for specification option: Bowl size: 420 x 170 x 320 mm 1.2 mm thick. |
Water supply, overflow and waste holes | |
Water supply | No tap holes. |
Overflow | No overflow hole. |
Waste | 1 1/2" corner waste. |
Execution | Installing sink assemblies on brackets |
Grid | Hinged grid |
Brackets | Mounting brackets included |
Sustainability data
Contains Red List materials | No |
Country of material origin | Finland |
Country of product manufacture | Finland |
Recyclability | Manufacturer guidanceRecyclable. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
