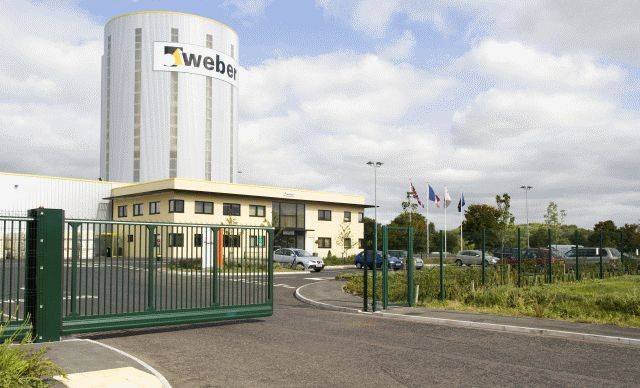

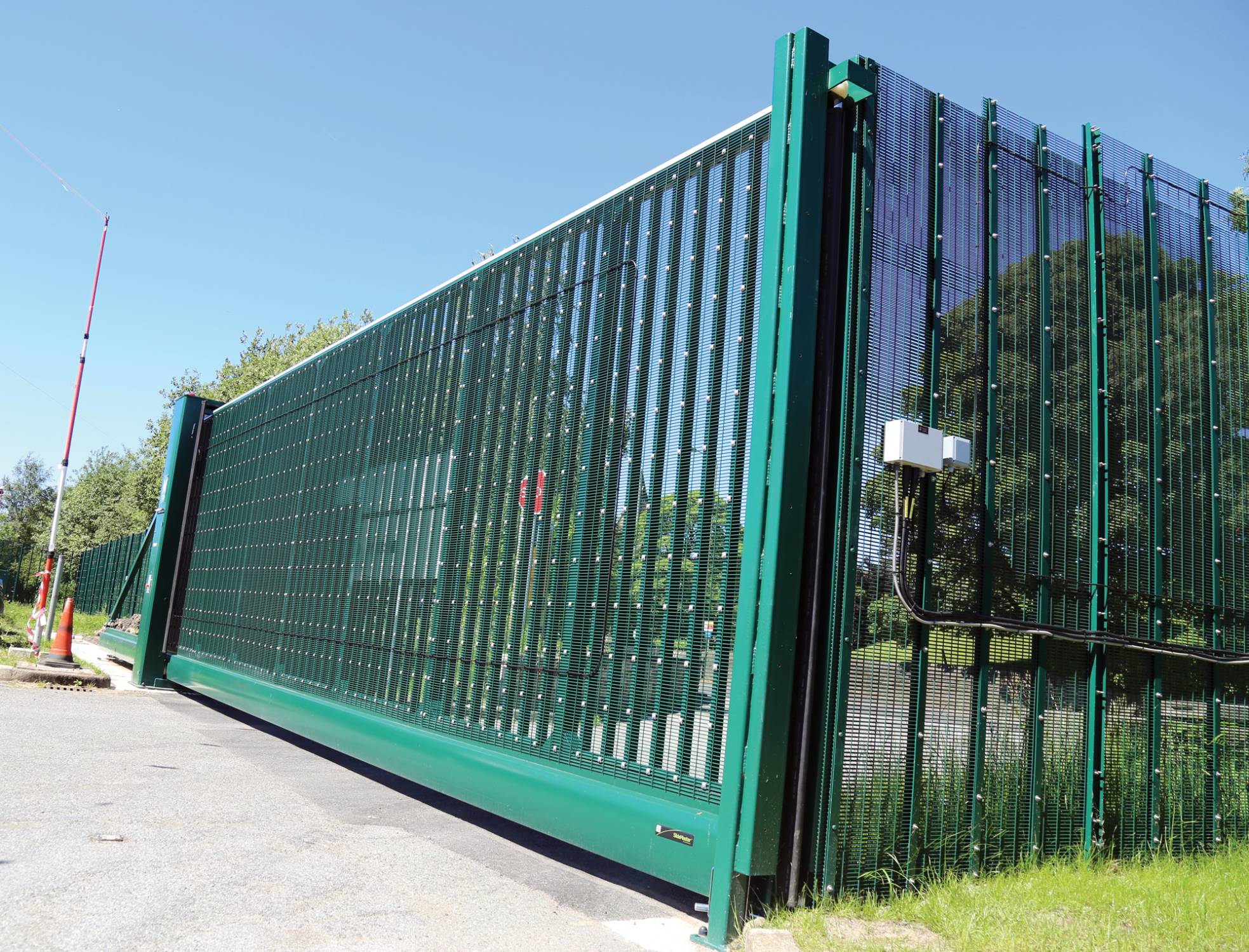

CLD SlideMaster SR2 Security Gate - Sliding Gate
Verified by manufacturer 2 days ago
BRE Certificate
Certificate type
Open mesh aluminium security gate system with steel mesh infill.
Application
The CLD SlideMaster SR2 cantilever sliding gate has been engineered to provide high-level security access control for critical infrastructure and sensitive sites. Designed to integrate effortlessly with the CLD Securus fencing system, its double-skinned 358 mesh panel construction makes it exceptionally resistant to cutting, climbing, and forced entry.
Tested and certified to LPS 1175 SR2 by the Loss Prevention Certification Board (LPCB), SlideMaster SR2 guarantees a minimum of 3 minutes’ delay against determined attacks using mechanical tools. With Secured by Design accreditation, it also meets police-preferred security specifications, offering peace of mind for even the most security-conscious environments.
Suitable for:
- Industrial and retail parks
- Data centres
- Airports and seaports
- Ministry of Defence (MoD) sites
- Schools, colleges, and universities
Featuring automatic operation, drive-through widths up to 8000mm, and compatibility with a wide range of panel infills and RAL colours, the SlideMaster SR2 delivers security without compromising on aesthetics or functionality—ideal for locations where secure, smooth vehicular access is essential.
Description
CLD SlideMaster SR2 gates have been developed to blend in with a CLD Securus fenceline. With a double skin of 365 mesh panels, they are difficult to break through or scale. They are tested by the loss prevention certification Board (LPCB) to guarantee a minimum delay of three minutes against attack, SlideMaster SR2 is also Secured by Design accredited, making it a police preferred specification for security.
Features and benefits:
- Security rated.
- Clear drive through widths up to 8000 mm.
- Automatic operation.
- Full range of panel infills.
- Full range of RAL colours.
General information
Color | Green Other Guidance for specification option: Any RAL colour. |
Finish | Powder-coated |
Material | Steel Aluminium |
Shape | Rectangle |
Width | Bespoke Guidance for specification option: 1000-8000 mm. |
Height | 2480 mm |
Warranty description | One year Guidance for specification option: Auto element. 15 year Guidance for specification option: Minimum of 15 years against manufacturing defects. |
Uniclass | |
CAWS | Q40/45 Proprietary gates Q40/570 Proprietary gates and posts Q50/130 Gate Q50/20 Gate |
Product range |
Specification data - Sliding vehicular barriers
Format | Cantilevered, sliding. |
Method of operation | Automatic. |
Barrier dimension | |
Height | 2480 mm. |
Span | Manufacturer guidanceBetween 1000-8000 mm. Insert requirements. |
Barriers | |
Type | Open mesh. |
Material | Carbon steel. |
Finish as delivered | |
Applied finish | Polyester powder-coated to 60-80 µ. Polyester powder-coated to 160-200 µ. Manufacturer guidanceWith marine grade and metallics. |
Colour | Green. Guidance for specification option: As standard. RAL colour. Guidance for specification option: Consult manufacturer and insert requirement. |
Locking mechanism | Automatic. |
Frame | 75 x 75 mm aluminium box with mesh infill. |
Fixings | Main control tower, park post and support rollers to be rawl-bolted to cast concrete footings. |
Post foundations | Concrete slab foundation to suit gate size. |
Configuration | Single leaf sliding left. Single leaf sliding right. |
Nominal voltage | 230 V single phase power the 100% duty cycle motor. |
Opening speed | 4 s/m. |
Standards | To BS 1722-14:2017, BS EN ISO 1461:2009, BS EN 13438:2013. |
Panels | Two panels of CLD Securus to S2 rating. |
SecurityRating | LPS 1175 B3 (Issue 7). |
Sustainability data
Country of product manufacture | United Kingdom |
Material | Steel Aluminium |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 1 |
 Revit | Revit 2016 | 1 |
Product certifications

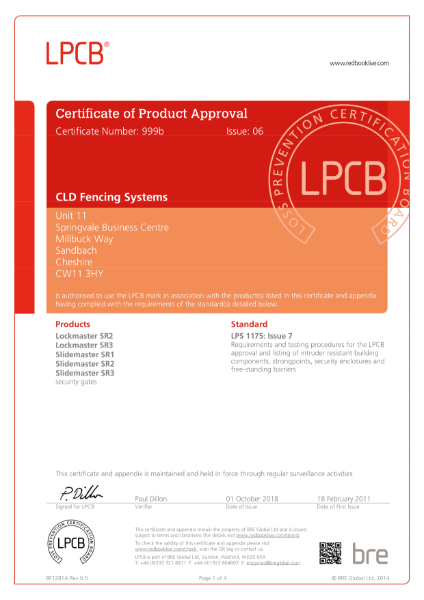

BRE Certificate
LBCB Certificate C999b
Literature

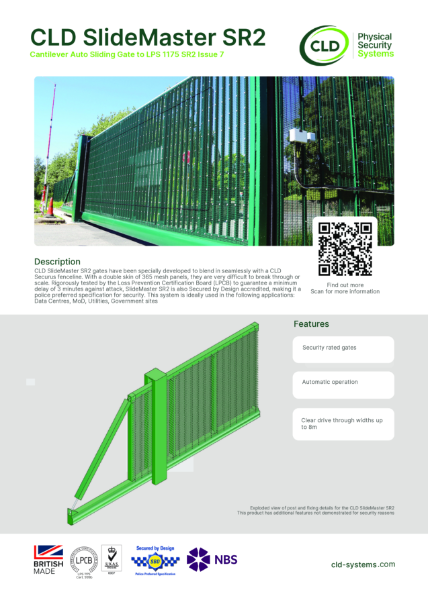

CLD SlideMaster SR2
