Clay Inspection Chambers

Description

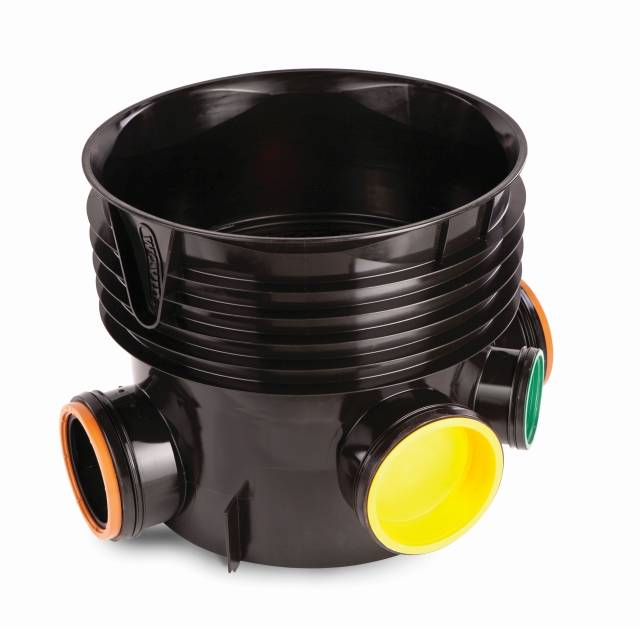

Non man-entry inspection chambers with a 450 mm diameter shaft for use with 100 mm SuperSleeve or 150 mm SuperSleeve to a maximum of 3 m.

Approved and kitemarked to BS EN 13598-2:2009.

General information

CAWS

R12/401 Inspection chambers – plastics

Specification data

Product Reference

Clay Inspection Chambers – Range 450

Type

44NE310

D/S equal inspection chamber base, 100 mm.

44NE314

D/S equal inspection chamber base, 100mm, left-hand branch.

44NE315

D/S equal inspection chamber base, 100 mm, right-hand branch.

44NE316

D/S equal inspection chamber base, 100 mm, four branches.

46NE310

D/S equal inspection chamber base, 150 mm.

46NE317

D/S equal inspection chamber base, 150 mm, left-hand branch.

46NE318

D/S equal inspection chamber base, 150 mm, right-hand branch.

46NE319

D/S equal inspection chamber base, 150 mm, four branches.

Accessories

None

40NE300

P/E inspection chamber shaft.

40NE930

Restriction access cap.

450TW117

Chamber base to shaft seal.

TA/2

Inspection chamber adaptor, 150 mm.

TA/4

Inspection chamber adaptor, 225 mm.

TA/7

Inspection chamber adaptor, 300 mm.
