CLASSIC TONES Collection - Plank
Application

Suitable for:

  • Floors and walls.
  • Floating floors (consult manufacturer for options).
  • Use with underfloor heating.
  • Secret nail (selected types: see 'Options' for details). Where applicable, manufacturer recommends Ted Todd bitumen backed paper for moisture barrier.
  • recommends Ted Todd bitumen backed paper for moisture barrier.Structural floors (selected types: see 'Options' for details). Where applicable, a maximum 400 mm space between centres applies.

Description

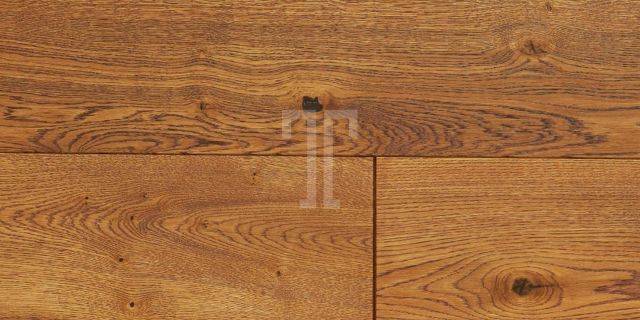

Engineered European oak flooring, designed to be laid in a plank format.

Features and benefits:

  • Part of the CLASSIC TONES collection; consult manufacturer's literature for other formats.
  • EU Timber Regulation (EUTR) compliant.
  • Can be fully bonded to subfloor (with Ted Todd MS Flex high strength adhesive).

Applications:

Suitable for:

  • Floors and walls.
  • Floating floors (consult manufacturer for options).
  • Use with underfloor heating.
  • Secret nail (selected types: see 'Options' for details). Where applicable, manufacturer recommends Ted Todd bitumen backed paper for moisture barrier.
  • recommends Ted Todd bitumen backed paper for moisture barrier.Structural floors (selected types: see 'Options' for details). Where applicable, a maximum 400 mm space between centres applies.

Can be installed over:

  • Plywood.
  • Concrete (dry, flat; not suitable for Parkhurst 500 mm-long boards).
  • Screed (dry, flat; manufacturer recommends Primerfast moisture barrier

Related products:

A range of complementary products is available, including:

  • Formed treads and risers.
  • L-sections, T-sections, reducers, scotia, skirting and architraves (not available with Cavendish or Parkhurst).

Guarantee:

  • 15 mm-thick boards: 20-year product warranty.
  • 20 mm-thick boards: 25-year product warranty.

General information

Uniclass 2015

Pr_25_71_97_93 Wood laminate strips and boardsPrimary

CAWS

K21/10 Wood laminate flooring

K21/115 Wood laminate flooring

K21/140 Battened wood laminate flooring

Specification data - Wood laminate strips and boards

Product Reference

CLASSIC TONES Collection - Plank

Type

See 'Options' below and insert requirements.

Width

See 'Options' below and insert requirements or type 'manufacturer's standard'.

Standard product features

Technical characteristics:

  • Wood species: European oak.
  • Grade: Nature.
  • Construction: Two ply engineered, 100% hardwood.
  • Edge detail: Micro bevelled.
  • Tolerance: ±0.50 mm/ 95% in tolerance.
  • Moisture content: 8–12% fair and average.
  • Fire rating to EN 13501-1 (flooring): D fl - s1.
  • Emissions to EN 14342: E1.
  • Humidity requirements: Between 40% and 60% relative humidity.
  • Janka hardness rating: 1120 lbf (4980 N).
  • Formaldehyde emission: E1.
  • Tonal variation: Medium natural.
  • Batch variation: Not advised to mix batches in one floor area.

Product Options

Length:

Random, up to 2200 mm, except Parkhurst 500 mm-long boards

Profile:

Tongue and grooved to all sides, except Parkhurst 500 mm-long boards (Groove to three sides).

Thermal conductivity:

  • 15 mm-thick boards: 0.08 m²K/W (0.8 Tog).
  • 20 mm-thick boards: 0.10 m²K/W (1.0 Tog).

Type:

- Allexton:

  • Width: 180 or 220 mm.
  • Thickness: 20 mm
  • Wear layer: 6 mm hardwood (nominal).
  • Finish: Naked skin lacquer.
  • Tone: Mid.
  • Surface texture: Medium brushed.
  • Secret nail/ structural floor: Yes.
  • Joist: Maximum 400 mm centres.
  • Slip rating: Dry: Low risk; Wet: Moderate risk.
  • Certification: FSC 100%.

- Begebury:

  • Width: 180 or 220 mm.
  • Thickness: 20 mm.
  • Wear layer: 6 mm hardwood (nominal).
  • Finish: Hardened oil.
  • Tone: Dark.
  • Surface texture: Medium brushed.
  • Secret nail/ structural floor: Yes.
  • Joist: Maximum 400 mm centres.
  • Slip rating: Dry: Low risk; Wet: Moderate risk.
  • Certification: FSC Mix Credit.

- Cannock Chase:

  • Width: 220 mm (manufacturer's standard).
  • Thickness: 20 mm.
  • Wear layer: 6 mm hardwood (nominal).
  • Finish: Hardened oil.
  • Tone: Mid.
  • Surface texture: Smooth.
  • Secret nail/ structural floor: Yes.
  • Joist: Maximum 400 mm centres.
  • Slip rating: Dry: Low risk; Wet: Moderate risk.
  • Certification: FSC 100%.

- Cavendish:

  • Width: 140 mm (manufacturer's standard).
  • Thickness: 15 mm.
  • Wear layer: 4 mm hardwood (nominal).
  • Finish: Naked skin lacquer.
  • Tone: Mid.
  • Surface texture: Medium brushed.
  • Secret nail: Not recommended.
  • Structural floor/ joist: No.
  • Slip rating: Dry: Low risk; Wet: Moderate risk.
  • Certification: FSC Mix Credit.

- Charnwood:

  • Width: 220 mm (manufacturer's standard).
  • Thickness: 20 mm.
  • Wear layer: 6 mm hardwood (nominal).
  • Finish: Satin lacquer.
  • Tone: Grey.
  • Surface texture: Smooth.
  • Secret nail/ structural floor: Yes.
  • Joist: Maximum 400 mm centres.
  • Slip rating: Dry: Low risk; Wet: Moderate risk.
  • Certification: FSC 100%.

- Dalby:

  • Width: 220 mm (manufacturer's standard).
  • Thickness: 20 mm.
  • Wear layer: 6 mm hardwood (nominal).
  • Finish: Pearl lacquer.
  • Tone: Mid.
  • Surface texture: Medium brushed.
  • Secret nail/ structural floor: Yes.
  • Joist: Maximum 400 mm centres.
  • Slip rating: Dry: Low risk; Wet: Moderate risk.
  • Certification: FSC Mix Credit.

- Fleet:

  • Width: 80 mm (manufacturer's standard).
  • Thickness: 20 mm.
  • Wear layer: 6 mm hardwood (nominal).
  • Finish: Pearl lacquer.
  • Tone: Mid.
  • Surface texture: Medium brushed.
  • Secret nail/ structural floor: Yes
  • Joist: Maximum 400 mm centres.
  • Slip rating: Dry: Low risk; Wet: Moderate risk.
  • Certification: FSC Mix Credit.

- Gladstone:

  • Width: 140 mm (manufacturer's standard).
  • Thickness: 15 mm.
  • Wear layer: 4 mm hardwood (nominal).
  • Finish: Matt lacquer.
  • Tone: Light.
  • Surface texture: Medium brushed.
  • Secret nail: Not recommended.
  • Structural floor/ joist: No.
  • Slip rating: Dry: Low risk; Wet: Moderate risk.
  • Certification: FSC Mix Credit.

- Holington:

  • Width: 220 mm (manufacturer's standard).
  • Thickness: 20 mm.
  • Wear layer: 6 mm hardwood (nominal).
  • Finish: Naked skin lacquer.
  • Tone: Light.
  • Surface texture: Medium brushed.
  • Secret nail/ structural floor: Yes.
  • Joist: Maximum 400 mm centres.
  • Slip rating: Dry: Low risk; Wet: Moderate risk.
  • Certification: FSC 100%.

- Horsford:

  • Width: 180 mm (manufacturer's standard).
  • Thickness: 20 mm.
  • Wear layer: 4 mm hardwood (nominal).
  • Finish: Hardened oil.
  • Tone: Neutral.
  • Surface texture: Medium brushed.
  • Secret nail/ structural floor: Yes.
  • Joist: Maximum 400 mm centres.
  • Slip rating: Dry: Low risk; Wet: Moderate risk.
  • Certification: FSC Mix Credit.

- Kielder, hardened oil finish:

  • Width: 180 mm (manufacturer's standard).
  • Thickness: 20 mm.
  • Wear layer: 4 mm hardwood (nominal).
  • Finish: Hardened oil.
  • Tone: Neutral.
  • Surface texture: Medium brushed.
  • Secret nail/ structural floor: Yes.
  • Joist: Maximum 400 mm centres.
  • Slip rating: Dry: Low risk; Wet: Low risk.
  • Certification: FSC Mix Credit.

- Kielder, satin lacquer finish:

  • Width: 180 mm (manufacturer's standard).
  • Thickness: 20 mm.
  • Wear layer: 6 mm hardwood (nominal).
  • Finish: Satin lacquer.
  • Tone: Neutral.
  • Surface texture: Medium brushed.
  • Secret nail/ structural floor: Yes.
  • Joist: Maximum 400 mm centres.
  • Slip rating: Dry: Low risk; Wet: Low risk.
  • Certification: FSC Mix Credit.

- Kinver Edge:

  • Width: 180 or 220 mm.
  • Thickness: 20 mm.
  • Wear layer: 6 mm hardwood (nominal).
  • Finish: Hardened oil.
  • Tone: Mid.
  • Surface texture: Smooth.
  • Secret nail/ structural floor: Yes.
  • Joist: Maximum 400 mm centres.
  • Slip rating: Dry: Low risk; Wet: Moderate risk
  • Certification: FSC Mix Credit.

- Madingley:

  • Width: 180 or 220 mm.
  • Thickness: 20 mm.
  • Wear layer: 6 mm hardwood (nominal).
  • Finish: Hardened oil.
  • Tone: Dark.
  • Surface texture: Medium brushed.
  • Secret nail/ structural floor: Yes.
  • Joist: Maximum 400 mm centres.
  • Slip rating: Dry: Low risk; Wet: Moderate risk.
  • Certification: FSC Mix Credit.

- Parkhurst, 500 mm-long:

  • Width: 100 mm (manufacturer's standard).
  • Thickness: 20 mm.
  • Wear layer: 6 mm hardwood (nominal).
  • Finish: Hardened oil.
  • Tone: Grey
  • Surface texture: Medium brushed.
  • Secret nail/ structural floor/ joist: No.
  • Slip rating: Dry: Low risk; Wet: Moderate risk.
  • Certification: FSC Mix Credit.

- Parkhurst, random length:

  • Width: 180 or 220 mm.
  • Thickness: 20 mm.
  • Wear layer: 6 mm hardwood (nominal).
  • Finish: Hardened oil.
  • Tone: Grey.
  • Surface texture: Medium brushed.
  • Secret nail/ structural floor: Yes.
  • Joist: Maximum 400 mm centres
  • Slip rating: Dry: Low risk; Wet: Moderate risk.
  • Certification: FSC Mix Credit.

- Paxton:

  • Finish: Satin lacquer.
  • Surface texture: Smooth.
  • Slip rating: Dry: Low risk; Wet: Moderate risk.
  • Certification: FSC 100%.

- Priestly:

  • Width: 180 mm (manufacturer's standard).
  • Thickness: 20 mm.
  • Wear layer: 4 mm hardwood (nominal).
  • Finish: Hardened oil.
  • Tone: Light.
  • Surface texture: Medium brushed
  • Secret nail/ structural floor: Yes.
  • Joist: Maximum 400 mm centres.
  • Slip rating: Dry: Low risk; Wet: Low risk.
  • Certification: FSC Mix Credit.

- Sherwood, 15 mm-thick:

  • Width: 140 or 180 mm.
  • Thickness: 15 mm.
  • Wear layer: 4 mm hardwood (nominal).
  • Finish: Hardened oil
  • Tone: Mid.
  • Surface texture: Medium brushed.
  • Secret nail/ structural floor: Yes.
  • Joist: Maximum 400 mm centres.
  • Slip rating: Dry: Low risk; Wet: Low risk.
  • Certification: FSC Mix Credit.

- Sherwood, 20 mm-thick:

  • Width: 160 or 220 mm.
  • Thickness: 20 mm.
  • Wear layer: 6 mm hardwood (nominal).
  • Finish: Hardened oil.
  • Tone: Mid.
  • Surface texture: Smooth.
  • Secret nail/ structural floor/ joist: No.
  • Slip rating: Dry: Low risk; Wet: Low risk.
  • Certification: FSC Mix Credit.

- Thetford:

  • Width: 180 mm (manufacturer's standard).
  • Thickness: 20 mm.
  • Wear layer: 4 mm hardwood (nominal).
  • Finish: Satin lacquer.
  • Tone: Mid.
  • Surface texture: Medium brushed
  • Secret nail/ structural floor: Yes.
  • Joist: Maximum 400 mm centres.
  • Slip rating: Dry: Low risk; Wet: Low risk.
  • Certification: FSC Mix Credit.

- Wellesley:

  • Width: 140 mm (manufacturer's standard).
  • Thickness: 15 mm.
  • Wear layer: 4 mm hardwood (nominal).
  • Finish: Hardened oil.
  • Tone: Dark.
  • Surface texture: Medium brushed.
  • Secret nail/ structural floor/ joist: No.
  • Slip rating: Dry: Low risk; Wet: Moderate risk.
  • Certification: FSC Mix Credit.

- Wentworth:

  • Width: 140 mm (manufacturer's standard).
  • Thickness: 15 mm.
  • Wear layer: 4 mm hardwood (nominal).
  • Finish: Restoration oil
  • Tone: Mid.
  • Surface texture: Medium brushed.
  • Secret nail/ structural floor/ joist: No.
  • Slip rating: Dry: Low risk; Wet: Moderate risk.
  • Certification: FSC Mix Credit.

- Wettenhall:

  • Width: 220 mm (manufacturer's standard).
  • Thickness: 20 mm.
  • Wear layer: 6 mm hardwood (nominal).
  • Finish: Restoration oil.
  • Tone: Neutral.
  • Surface texture: Smooth.
  • Secret nail/ structural floor: Yes.
  • Joist: Maximum 400 mm centres.
  • Slip rating: Dry: Low risk; Wet: Moderate risk.
  • Certification: FSC 100%.

- Whinfell

  • Width: 180 or 220 mm.
  • Thickness: 20 mm.
  • Wear layer: 6 mm hardwood (nominal).
  • Finish: Hardened oil.
  • Tone: Light.
  • Surface texture: Medium brushed.
  • Secret nail/ structural floor: Yes.
  • Joist: Maximum 400 mm centres.
  • Slip rating: Dry: Low risk; Wet: Moderate risk.
  • Certification: FSC 100%.

- White Leaf:

  • Width: 180 mm (manufacturer's standard).
  • Thickness: 20 mm.
  • Wear layer: 4 mm hardwood (nominal).
  • Finish: Hardened oil
  • Tone: Light.
  • Surface texture: Medium brushed
  • Secret nail/ structural floor: Yes.
  • Joist: Maximum 400 mm centres.
  • Certification: FSC Mix Credit.

- White Leaf:

  • Width: 140 mm (manufacturer's standard).
  • Thickness: 15 mm.
  • Wear layer: 4 mm hardwood (nominal
  • Finish: Hardened oil.
  • Tone: Light.
  • Surface texture: Medium brushed.
  • Secret nail/ structural floor/ joist: No
  • Slip rating: Dry: Low risk; Wet: Moderate risk.
  • Certification: FSC Mix Credit.

- Wyre:

  • Width: 180 mm (manufacturer's standard).
  • Thickness: 20 mm.
  • Wear layer: 4 mm hardwood (nominal).
  • Finish: Satin lacquer.
  • Tone: Mid.
  • Surface texture: Medium brushed.
  • Secret nail/ structural floor: Yes.
  • Joist: Maximum 400 mm centres.
  • Slip rating: Dry: Low risk; Wet: Low risk.
  • Certification: FSC Mix Credit.

Literature
Similar products from Ted Todd Fine Wood Floors

© 2020 NBS Enterprises Ltd. All rights reserved.
