Classic Roller Garage Door

Verified by manufacturer 2 months ago

Roché Systems Ltd

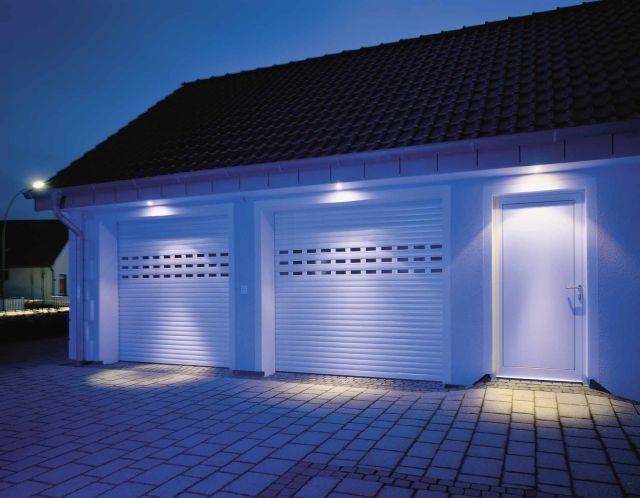

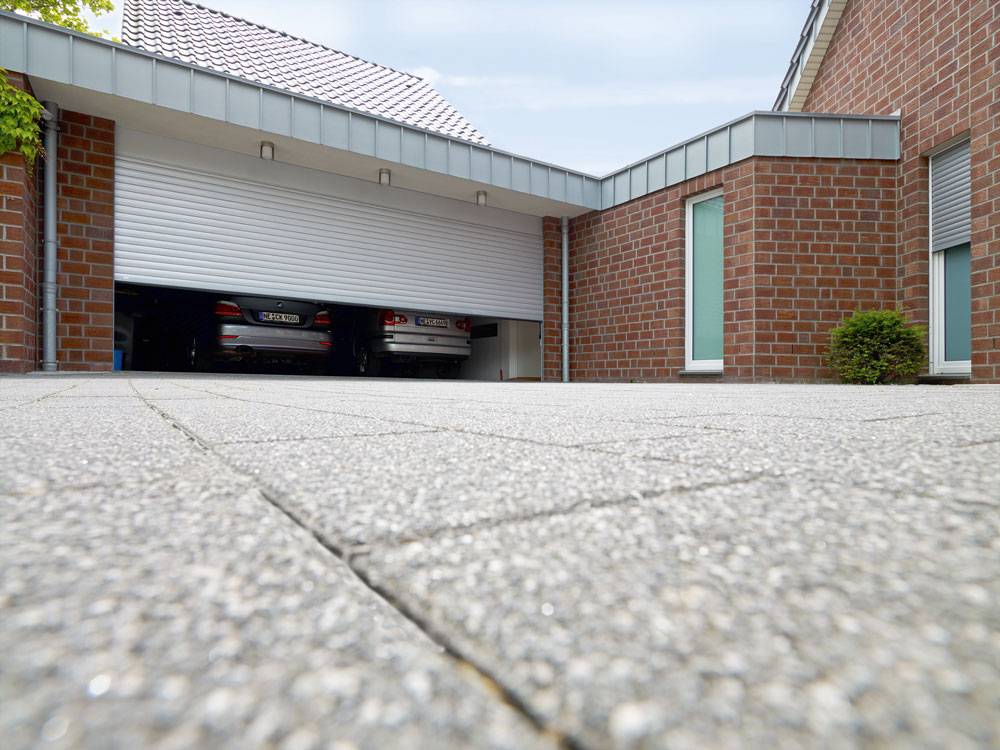

Double skinned insulated aluminium roller garage door with 78 mm high slats and Secured by Design as standard.

Jump to:
BIM object icon
0800 085 1461 Website

Application

High security insulated garage door for domestic or commercial garages.

Description

Double skinned insulated aluminium roller garage door with 78 mm high slats, providing warmth, security and style. It is available with Somfy motor and controls making operation effortless.


Each door is made to measure and can be customized with a large selection of colours and wood laminate effect finishes. The classic can span up to 5.5 m in width and an area up to 16 m². Remote operation via Somfy motor and controls is standard.


General information

Color

Black

Brown

Green

Grey

Red

Show more

Material

Aluminium

Shape

Rectangle

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

Two year

Uniclass

Pr_30_59_84_73 Roller shuttersPrimary

CAWS

L20/60 Doors

L20/610 Roller shutters/ curtains

Product range

Roller Garage Doors

Specification data - Roller shutters

Opening sizes

Available up to 3500 mm in height depending on width.

5500 x 2750 mm.

Arrangement

Vertical, external face.

Vertical, internal face.

Vertical, reveal fix.

Shutter curtain.

-

Lath material

20 mm thick aluminium with foam insulating core, 78 mm in height.

Finish and colour

Available with polyester powder coated or wood laminate finish.

Anthracite, RAL 7016.

Polyester powder coated.

Beige, BS 08B17.

Polyester powder coated.

Black, RAL 9005.

Polyester powder coated.

Brown, RAL 8019.

Polyester powder coated.

Moss green, RAL 6005.

Polyester powder coated.

Light grey, RAL 7038.

Polyester powder coated.

Moss green, RAL 6005.

Polyester powder coated.

Painted oak.

Polyester powder coated.

Painted rosewood.

Polyester powder coated.

Painted teak.

Polyester powder coated.

Red, RAL 3004.

Polyester powder coated.

Sage green, RAL 6021.

Polyester powder coated.

Silver, RAL 9006.

Polyester powder coated.

Steel blue, RAL 5011.

Polyester powder coated.

White, RAL 9016.

Polyester powder coated.

Laminate golden oak.

Wood laminate.

Laminate Irish oak.

Wood laminate.

Laminate mahogany.

Wood laminate.

Laminate rosewood.

Wood laminate.

Frame and guides

-

Colour

Brown.

White.

Other.

Option to powder coat to any RAL / BS colour (surcharge applies).

Operation

-

Mode

Electric includes Somfy motor with manual override facility, crank handle and safety brake. Includes Somfy control panel with safety sensor, courtesy light, alarm and two key fobs.

Electric, NRG Econom tubular motor.

Electric, Somfy tubular motor.

Manual, spring and lock.

Manual, rod and crank

Manual, cord belt.

Control

Somfy tubular motor with safety sensor, courtesy light, alarm and two key fobs.

NRG tubular motor with safety sensor, courtesy light, alarm and two key fobs..

Accessories

None.

External override facility.

Vision slats.

Guide channel depth

Extruded aluminium with brush seals.

70 mm.

90 mm.

150 mm.

Guide channels

Brown.

Standard colour.

White.

Standard colour.

BS.

Insert colour requirement.

RAL.

Insert colour requirement.

Size

77 mm.

Weight

5.5 kg/m².

Enclosure type

Box.

Circular.

Sustainability data

Country of product manufacture

United Kingdom

BIM objects

BIM object icon

NBS BIM object standard

This BIM object has been authored to meet the requirements of the NBS BIM object standard.

Find out more about the NBS BIM object standard.

Platform Compatible Version
IFC
-

1

Revit
-

1

DWG
-

1
